6277 - Lawn-Boy Walk-Behind Mower (SN: 500000001 - 599999999) (1975) MODEL 6277 PROFESSIONAL MOWER-21" PUSH PARTS LIST Parts Diagram

Walk-Behind Mower

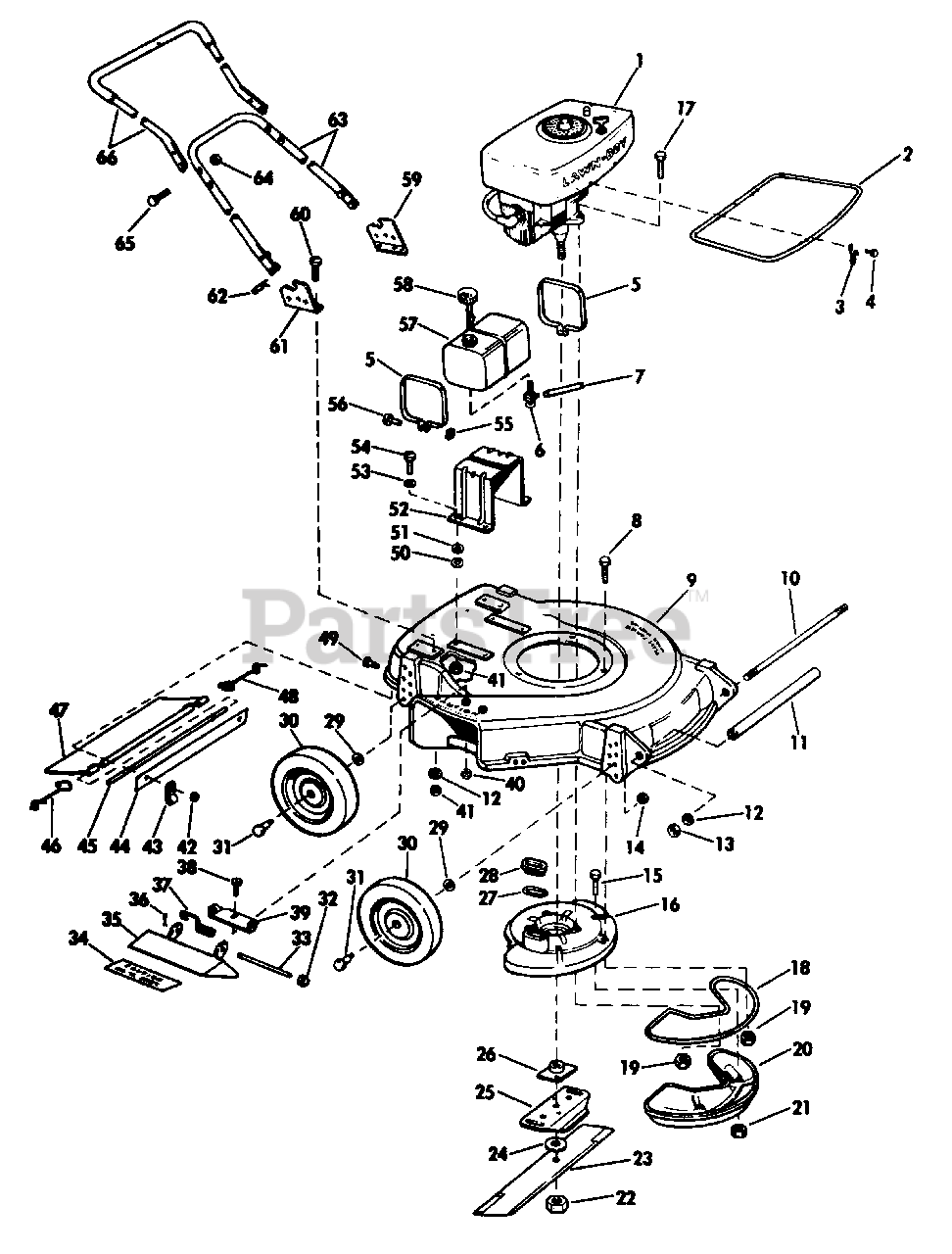

MODEL 6277 PROFESSIONAL MOWER-21" PUSH PARTS LIST Parts Diagram

  • Title

1

See Page 38 for Engine, Magneto and Carburetor Parts List. See Note #2 at bottom of this page.

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976. NOTE: A complete engine, part no. 679423, D-476 is available for replacement on this mower. Important Note:

$

$

Not available

2

Lawn-Boy 606629

Loop-Arm. Plate Protective Wire

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

3

Lawn-Boy 606630

Spring-Wire Loop Mounting

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

4

Lawn-Boy 606628

Screw

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

5

Lawn-Boy 606631

Strap-Gas Tank

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

6

Lawn-Boy 677052

Shut-Off Valve & Screen

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$23.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 606623

Gas Line

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

8

Lawn-Boy 604862

Screw-Muffler Plate to Housing

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

9

Lawn-Boy 679978

Housing & Bar Assembly-21"
(Superseded to 682937)

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$1783.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 606634

Rod-Bumper

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

11

Lawn-Boy 606635

Bumper

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

12

Lawn-Boy 603620

Washer

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$5.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 603773

Nut

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$2.99

$

In Stock, Qty 8

0

14

Lawn-Boy 602677

Nut-Square

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

15

Lawn-Boy 607847

Screw

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

16

Lawn-Boy 679903

Muffler Plate Assembly

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

17

Lawn-Boy 607715

Screw

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

18

Lawn-Boy 604516

Gasket-Muffler

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

19

Lawn-Boy 608311

Nut-Nylok

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$3.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 604024

Muffler

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

21

Lawn-Boy 608559

Nut

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

22

Lawn-Boy 603164

Blade Nut
(Superseded to 121-3611)

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$5.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 603703

Blade-21"
(Superseded to 612543-03)

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$33.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 605058

Washer-Blade

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$5.99

$

In Stock, Qty 12

0

25

Lawn-Boy 603541

Stiffener-Blade

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

26

Lawn-Boy 677525

Collar & Plate

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$51.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 604624

Gasket-Exhaust

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$11.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 602717

Sleeve-Muffler Gasket

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$2.99

$

In Stock, Qty 16

0

29

Lawn-Boy 120177

Lockwasher

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

30

Lawn-Boy 678406

Wheel & Tire Assy.-8"
(Superseded to 681980)

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$68.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 606638

Wheel Bolt-Shoulder

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

32

Lawn-Boy 608582

Push Nut

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

33

Lawn-Boy 608381

Pin

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

34

Lawn-Boy 608380

Decal

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

35

Lawn-Boy 608377

Deflector

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

36

Lawn-Boy 306372

Cotter Pin

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Currently unavailable

37

Lawn-Boy 608379

Spring

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

38

Lawn-Boy 306409

Screw

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Currently unavailable

39

Lawn-Boy 608378

Plate

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

40

Lawn-Boy 602315

Nut

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$4.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 602315

Nut

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$4.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 602315

Nut

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$4.99

$

In Stock, only 2 left!

0

43

Lawn-Boy 608382

Clamp

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

44

Lawn-Boy 608376

Extension

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

45

Lawn-Boy 608189

Bar

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

46

Lawn-Boy 608497

Spring-R.H.

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

47

Lawn-Boy 608869

Shield

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

48

Lawn-Boy 608498

Spring-L.H.

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

49

Lawn-Boy 306409

Screw

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Currently unavailable

50

Lawn-Boy 602945

Washer

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

51

Lawn-Boy 604995

Grommet

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

52

Lawn-Boy 606632

Bracket-Gas Tank
(Superseded to 611260)

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$108.99

$

In Stock, only 1 left!

0

53

Lawn-Boy 306405

Washer

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

54

Lawn-Boy 606144

Screw

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

55

Lawn-Boy 306542

Nut-Plain Square

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Currently unavailable

56

Lawn-Boy 310356

Screw-Strap to Bracket

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

57

Lawn-Boy 679163

Gas Tank Assy.

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

58

Lawn-Boy 679166

Fuel Gauge Assy.

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

59

Lawn-Boy 606636

Handle Bracket, Left

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

60

Lawn-Boy 602192

Screw-Slotted

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

61

Lawn-Boy 606637

Handle Bracket, Right

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

62

Lawn-Boy 603927

Hair Pin

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

63

Lawn-Boy 679167

Handle Bottom & Pin Assy.

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

64

Lawn-Boy 603477

Nut Stop-Handle

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

65

Lawn-Boy 602480

Screw-Handle

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

66

Lawn-Boy 679168

Top Handle Section & Grip Assy.
(Superseded to 604601)

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976.

$

$

Not available

Lawn-Boy 608374

Bracket-Catcher Mounting

Note: NOTE: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Important Note: An Accessory Grasscatcher Assembly is available, Part No. 679976. Not Shown

$

$

Not available
