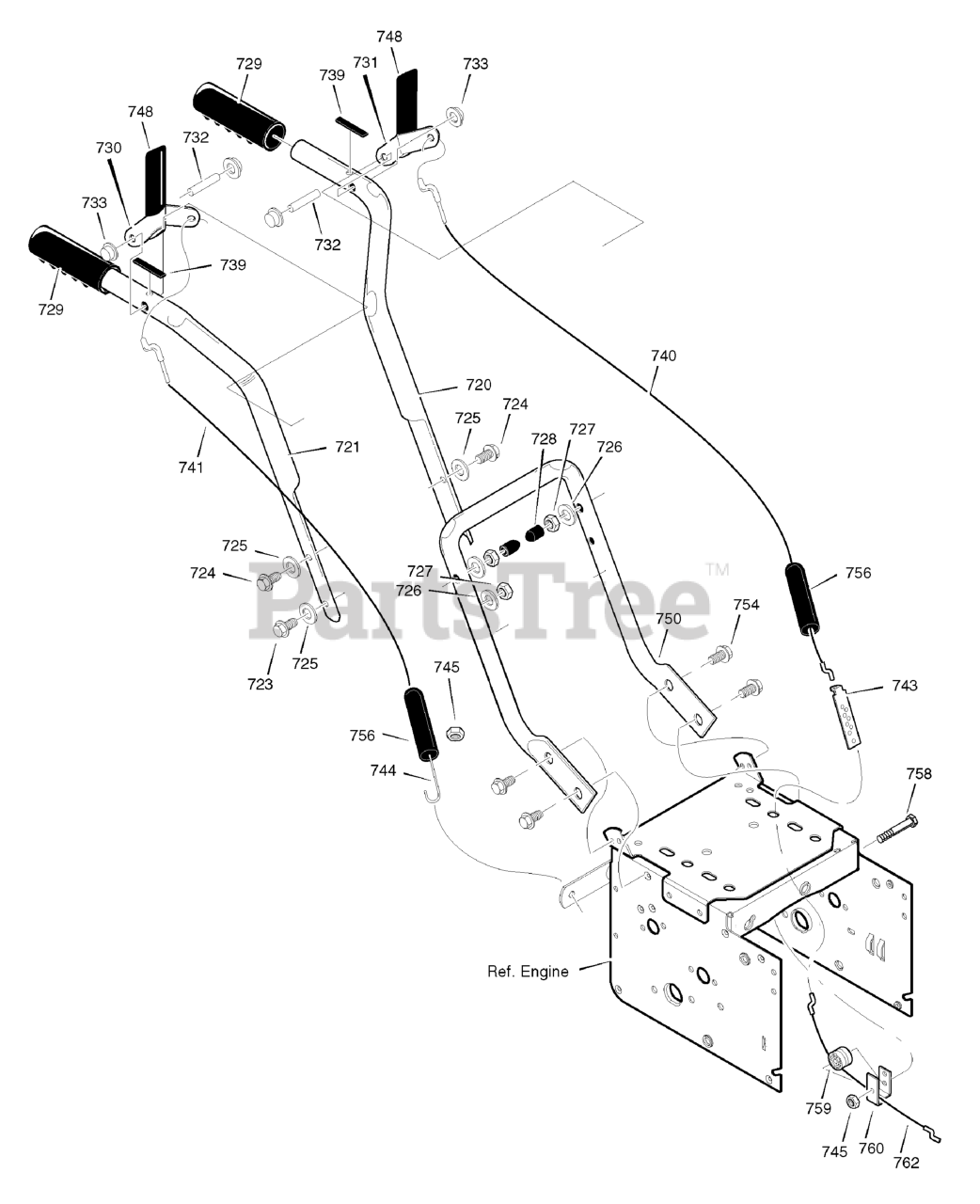

6271500x43 (1695375) - Yard King 27" Snow Thrower (2007) Handle Assembly Parts Diagram

27" Snow Thrower

Handle Assembly Parts Diagram

  • Title

720

Murray 5113E717

HANDLE, UPPER LH

$16.99

$

Usually ships in 2-12 days

0

721

Murray 5115E717

HANDLE, UPPER RH

$66.99

$

Usually ships in 2-12 days

0

723

Murray 71007

SCREW, 3/8-16 X 2.00

$

$

Not available

724

Murray 7288MA

SCREW, 3/8-16 x 3.00

$4.49

$

Usually ships in 2-12 days

0

725

Murray 71072

WASHER, FLAT

$

$

Not available

726

Murray 71062

WASHER

$

$

Not available

727

Murray 71044

NUT, 3/8-16 REGHEX

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 50792MA

GRIP-HANDLE FINGER

$5.99

$

Usually ships in 2-12 days

0

730

Murray 9729E717

LEVER, ASSY CLUTCH DRIVE RH

$

$

Currently unavailable

731

Murray 9732E717

LEVER, ASSY CLUTCH DRIVE LH

$6.99

$

Usually ships in 2-12 days

0

732

Murray 760074MA

PIN, PIVOT CLUTCH

$10.99

$

Usually ships in 2-12 days

0

733

Murray 3535MA

NUT, PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1501124MA

CABLE, AUGER DRIVE
(Superseded to 762259MA)

$12.99

$

In Stock, Qty 5

0

741

Murray 761590MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, Qty 5

0

743

Murray 313441MA

BRACKET, CABLE ADJUSTER

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 13

0

745

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

748

Murray 336626

GRIP

$

$

Not available

750

Murray 5543E717

HANDLE, LOWER

$

$

Not available

754

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

756

Murray 308146MA

BOOT, CABLE

$6.49

$

In Stock, only 3 left!

0

758

Murray 001798

BOLT, HEX 1/4-20 X 1.50 YZ
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

759

Murray 579860MA

SPOOL-CABLE, AUGRT CLUTCH

$5.99

$

In Stock, Qty 10

0

760

Murray 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, LOWER DRIVE 12"

$8.49

$

In Stock, Qty 20+

0
