6271200x43 (1695373) - Yard King 27" Snow Thrower (2007) Chute Rod Parts Diagram

27" Snow Thrower

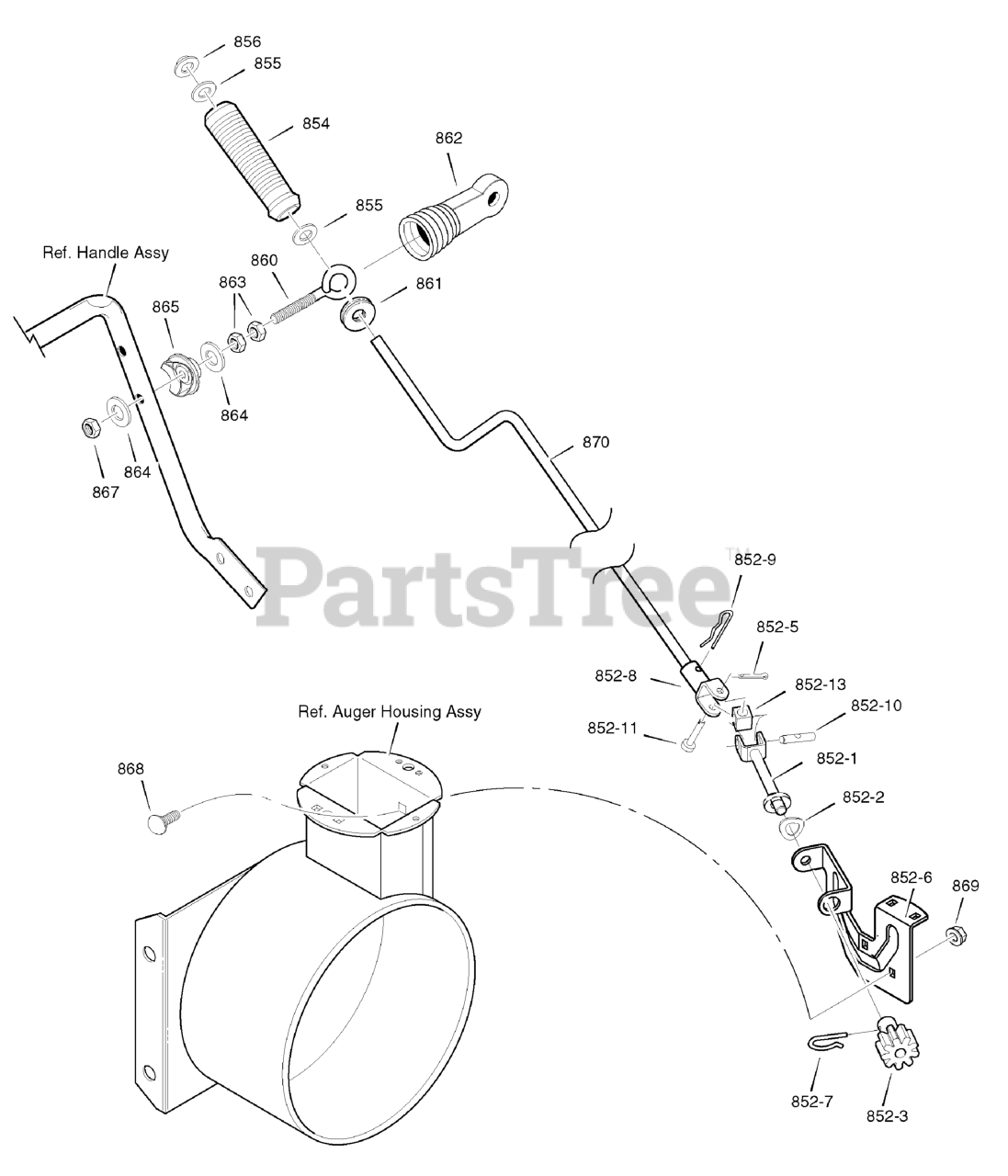

Chute Rod Parts Diagram

  • Title
852-1

Murray 1501533YZMA

ASSEMBLY, YOKE & ROD

$11.99

$

Usually ships in 2-12 days

0

852-2

$9.49

$

In Stock, only 1 left!

0

852-3

Murray 1501067MA

GEAR, CHUTE ROTATION 9T

$17.99

$

In Stock, only 2 left!

0

852-4

$8.49

$

Usually ships in 2-12 days

0

852-5

Murray 579493MA

PIN, COTTER

$4.49

$

In Stock, only 2 left!

0

852-6

Murray 1740591HMA

BRACKET, CHUTE GEAR
(Superseded to 1740591AYP)

$22.99

$

Usually ships in 2-12 days

0

852-7

Murray 1501293MA

PIN, HAIR

$4.99

$

Usually ships in 2-12 days

0

852-8

Murray 1501075YZMA

ASSEMBLY, YOKE ADAPTER YZ

$10.99

$

In Stock, only 1 left!

0

852-9

Murray 711682MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

852-10

Murray 578060MA

PIN, UNIVERSAL JOINT

$7.49

$

In Stock, only 1 left!

0

852-11

Murray 578309MA

PIN, CLEVIS

$5.49

$

In Stock, Qty 9

0

852-13

Murray 578063MA

HOUSING, UNIVERSAL

$5.49

$

In Stock, Qty 5

0

854

Murray 1502143MA

KNOB, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

855

Murray 309312MA

FLATWASHER

$4.49

$

In Stock, only 3 left!

0

856

Murray 73664MA

NUT, PUSH ON 3/8"

$4.99

$

In Stock, only 3 left!

0

860

Murray 1501456MA

EYE BOLT 3/8-16 X 6.50

$9.49

$

Usually ships in 2-12 days

0

861

Murray 148MA

GROMMET, EYE BOLT

$

$

Not available

862

Murray 1501457MA

BOOT, EYE BOLT

$8.99

$

Usually ships in 2-12 days

0

863

Murray 71045MA

NUT, 3/8-16 HEXJAM

$4.99

$

Usually ships in 2-12 days

0

864

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

865

Murray 309344MA

ADAPTER, BOOT

$

$

Not available

867

Murray 71046MA

NUT, 3/8-16 HEXNYL

$4.49

$

Usually ships in 2-12 days

0

868

Murray 02X101MA

BOLT, CARRIAGE 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 6

0

869

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

870

Murray 1501074YZMA

CRANK, ASSEMBLY CHUTE

$

$

Not available
