627118x43A - Yard King 27" Snow Thrower (2003) Auger Housing Parts Diagram

27" Snow Thrower

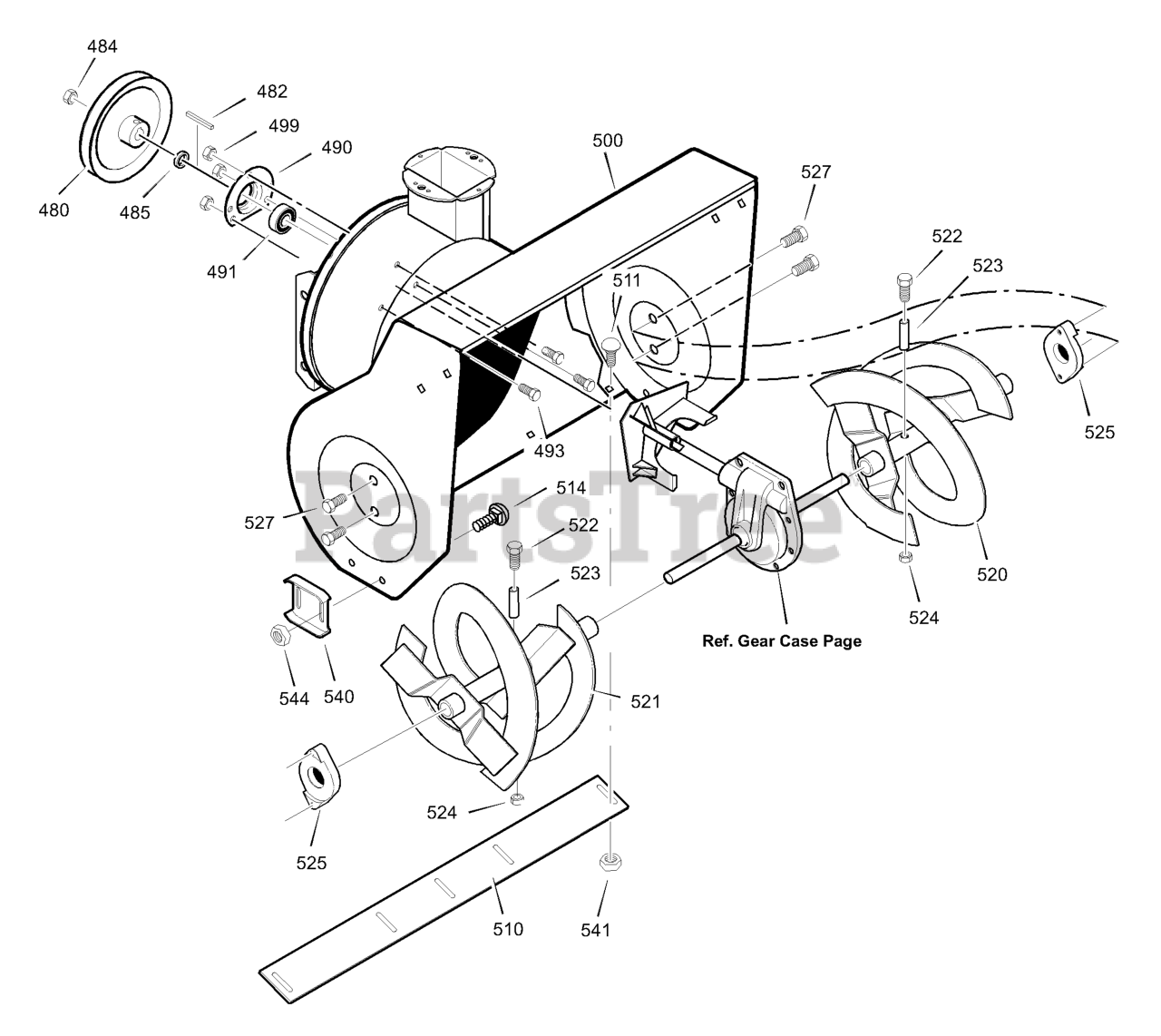

Auger Housing Parts Diagram

  • Title

480

Murray 583146MA

PULLEY, 4L 8.40 OD

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 11

0

484

Murray 15X112MA

NUT, 1/2-20

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X92MA

BOLT, HEX 5/16-18X .50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501511E735

HOUSING, ASSY

$

$

Currently unavailable

510

Murray 760656E701MA

BLADE, SCRAPER
(Superseded to 1740745BMYP)

$

$

Not available

511

Murray 340720MA

BOLT, 5/16-18X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

514

Murray 710026

NUT, 5/16-18

$

$

Not available

520

Murray 760603 YZ

AUGER, ASSY, LH

$

$

Not available

521

Murray 760604 YZ

AUGER, ASSY, RH

$

$

Not available

522

Murray 9524MA

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

524

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

525

Murray 53757MA

BEARING, FLANGE

$9.99

$

In Stock, only 2 left!

0

527

Murray 70984

SCREW, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

540

Murray 762379E701MA

SKID, HEIGHT ADJUST

$74.99

$

Usually ships in 2-12 days

0

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

544

Murray 710026

NUT, 5/16-18

$

$

Not available

--

Murray 1501216MA

KIT, SHEAR BOLT

$4.99

$

In Stock, Qty 10

0
