627 (990598) - Simplicity Yeoman 32" Lawn Tractor Electric Starter Group Parts Diagram

Yeoman 32" Lawn Tractor

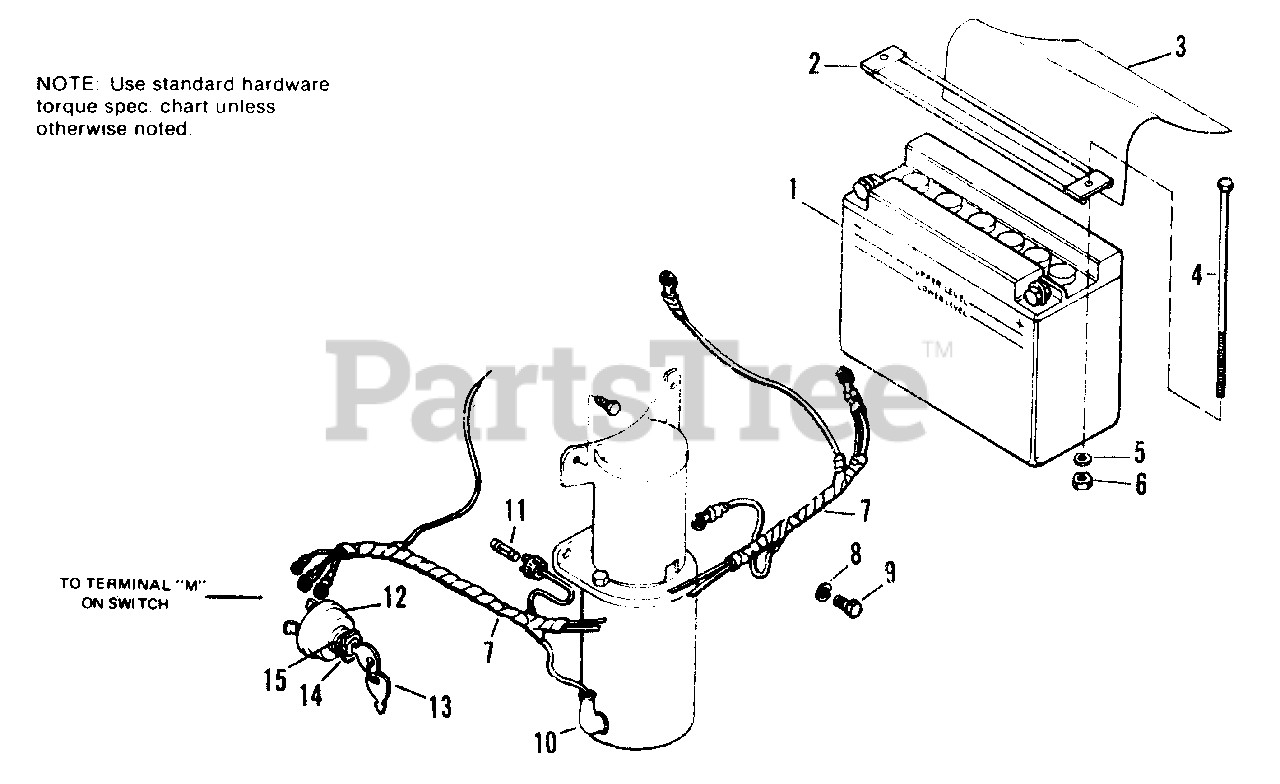

Electric Starter Group Parts Diagram

  • Title

1

Simplicity 1657082

BATTERY

$

$

Not available

2

Simplicity 122227

HOLD DOWN, Battery

$

$

Not available

3

Simplicity 122143

INSULATION, Battery

$

$

Not available

4

Simplicity 2828634

CAPSCREW, Hex Hd., 1/4-20 x 7

$

$

Not available

5

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 170048

HARNESS ASSY.

$

$

Not available

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

10

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

11

Simplicity 172410

FUSE

$

$

Not available

12

Simplicity 122218

SWITCH, W/Keys

$

$

Not available

13

Simplicity 1717163SM

KEYS

$8.99

$

In Stock, Qty 20+

0

14

Simplicity 2122234SM

NUT, Hex, Special
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

15

Simplicity 2818906

LOCKWASHER, Int., 5/8

$

$

Not available
