626 (990486) - Simplicity Yeoman Lawn Tractor Frame, Hood, Dash & Seat Group Parts Diagram

Yeoman Lawn Tractor

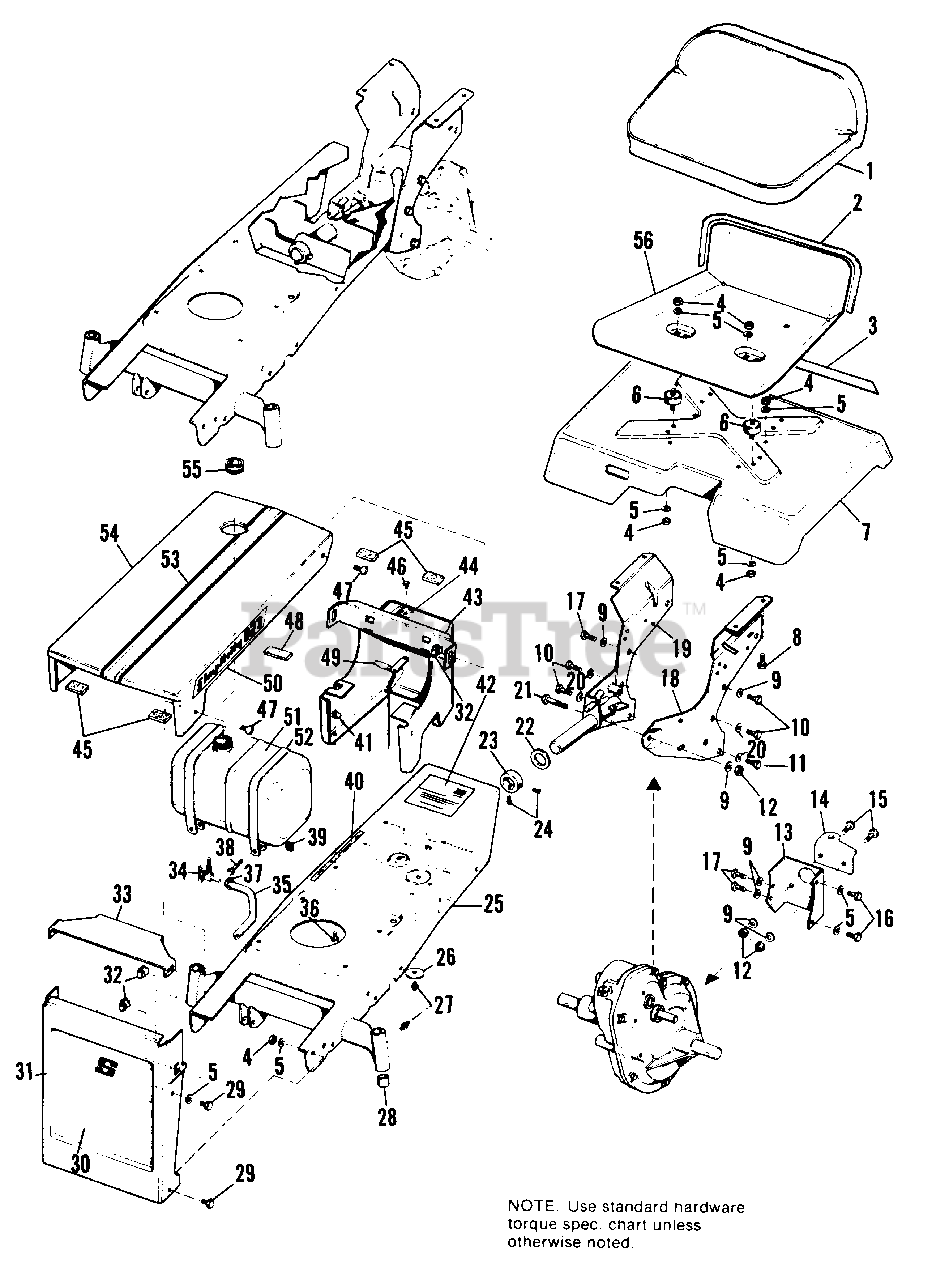

Frame, Hood, Dash & Seat Group Parts Diagram

  • Title

1

Simplicity 162094

PAD, Seat

$

$

Not available

2

Simplicity 159177

TAPE, Seat Pan, 2 Feet

$

$

Not available

3

Simplicity 162086

DECAL, Yeoman

$

$

Not available

4

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2159085SM

CONNECTOR, Cushion

$10.99

$

In Stock, only 2 left!

0

7

Simplicity 162105

SUPPORT, Seat (990486 & 990542 Only)

$

$

Not available

7

Simplicity 162042

SUPPORT, Seat

$

$

Not available

8

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

10

Simplicity 2818212

CAPSCREW, Hex Hd., 7/16-14 x 1

$

$

Not available

11

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

12

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 156191

BRACKET, Draw Bar

$

$

Not available

14

Simplicity 156192

CLIP, Draw Bar

$

$

Not available

15

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

16

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

17

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

18

Simplicity 165040

PLATE, Side, L.H.

$

$

Not available

18

Simplicity 162016

PLATE, Side, L.H. (990415 Only)

$

$

Not available

19

Simplicity 1655451

PLATE ASSY., R.H.

$

$

Not available

19

Simplicity 174045

PLATE ASSY., R.H. (990415 Only)

$

$

Not available

20

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

21

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

22

Simplicity 2105050

WASHER

$

$

Not available

23

Simplicity 2154065SM

COLLAR, Set

$113.99

$

Usually ships in 2-12 days

0

24

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

25

Simplicity 162103

FRAME ASSY.

$

$

Not available

17

Simplicity 162001

FRAME ASSY. (990415 Only)

$

$

Not available

26

Simplicity 2823212

WASHER, Plain, #10

$

$

Not available

27

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

29

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

30

Simplicity 162077

DECAL, Grille

$

$

Not available

31

Simplicity 162036

GRILLE

$

$

Not available

32

Simplicity 2830659

NUT, Retainer

$

$

Not available

33

Simplicity 162037

SUPPORT, Grille

$

$

Not available

34

Simplicity 162044

VALVE, Shutoff

$

$

Not available

35

Simplicity 162059

HOSE, Fuel

$

$

Not available

36

Simplicity 2819339

SCREW, Self Tapping, Hex Hd., #14 x 5/8

$

$

Not available

37

Simplicity 2154372

CLAMP, Hose

$

$

Not available

38

Simplicity 917492

SCREW, Machine, Fillister Hd., 1/4-20 x 1-3/4

$

$

Not available

39

Simplicity 930623

NUT, Square, 1/4-20

$

$

Not available

40

Simplicity 162072

DECAL, Clutch

$

$

Not available

41

Simplicity 9287-03

NUT, speed

$

$

Not available

42

Simplicity 162109

DECAL, Safety

$

$

Not available

42

Simplicity 162075

DECAL, Safety (990415 Only)

$

$

Not available

43

Simplicity 170085

DASH ASSY.

$

$

Not available

44

Simplicity 162071

DECAL, Throttle

$

$

Not available

45

Simplicity 106582

PAD, Felt

$

$

Not available

46

Simplicity 2823188

SCREW, Self Tapping, Hex Hd., 1/4-20 x 1/2

$

$

Not available

47

Simplicity 2828693

SCREW, Thumb, 5/16-18 x 3/4

$

$

Not available

48

Simplicity 158450

GASKET, Felt

$

$

Not available

49

Simplicity 162061

CONTROL, Choke

$

$

Not available

50

Simplicity 162107

DECAL, Number

$

$

Not available

50

Simplicity 162076

DECAL, Number (990415 Only)

$

$

Not available

51

Simplicity 162043

TANK, Fuel

$

$

Not available

52

Simplicity 162060

STRAP, Tank

$

$

Not available

53

Simplicity 162074

STRIPE, Hood

$

$

Not available

54

Simplicity 162038

HOOD

$

$

Not available

55

Simplicity 2159135SM

CAP, Fuel Tank
(Superseded to 2156175SM)

$31.99

$

In Stock, only 4 left!

0

56

Simplicity 165066

PAN, Seat

$

$

Not available
