626 (990486) - Simplicity Yeoman Lawn Tractor Electric Start Group Parts Diagram

Yeoman Lawn Tractor

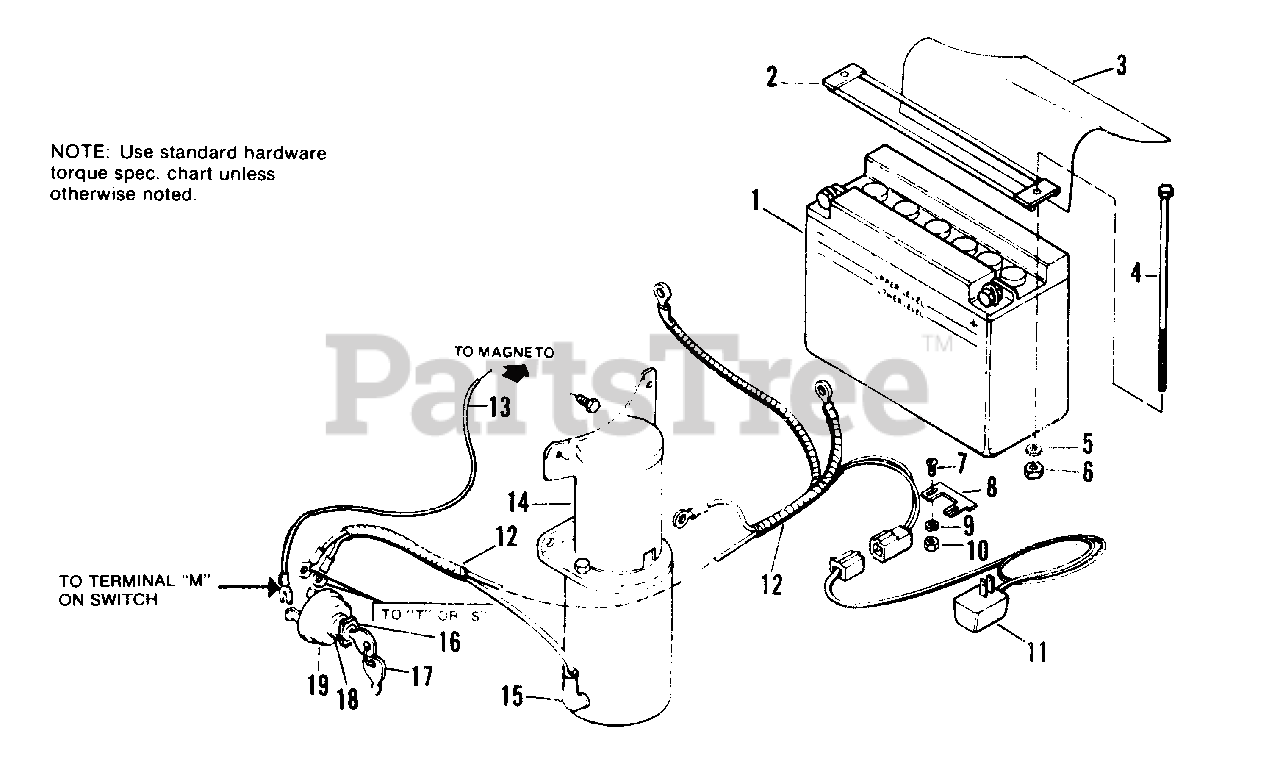

Electric Start Group Parts Diagram

  • Title

1

Simplicity 1657082

BATTERY

$

$

Not available

2

Simplicity 122227

HOLD DOWN, Battery

$

$

Not available

3

Simplicity 122143

INSULATION, Battery

$

$

Not available

4

Simplicity 928522

CAPSCREW, Hex Hd., 1/4-20 x 6-1/2

$

$

Not available

5

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 917452

SCREW, Machine, #10-32 x 1/2

$

$

Not available

8

Simplicity 122225

CLIP, Mounting

$

$

Not available

9

Simplicity 2822711

LOCKWASHER, Ext., #10

$

$

Not available

10

Simplicity 2817415

NUT, Hex, Full, #10-32

$

$

Not available

11

Simplicity 122221

CHARGER ASSY.

$

$

Not available

12

Simplicity 122219

HARNESS ASSY.

$

$

Not available

13

Simplicity 122220

WIRE (Switch to Magneto)

$

$

Not available

14

Simplicity 122230

STARTER KIT

$

$

Not available

15

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

16

Simplicity 2122234SM

NUT, Hex, Special
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

17

Simplicity 1717163SM

KEYS

$8.99

$

In Stock, Qty 20+

0

18

Simplicity 2818906

LOCKWASHER, Int., 5/8

$

$

Not available

19

Simplicity 122218

SWITCH, W/Keys

$

$

Not available
