6258 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1979) DECK, SHROUD AND HANDLE GROUP-MODEL: 6257 Parts Diagram

Walk-Behind Mower

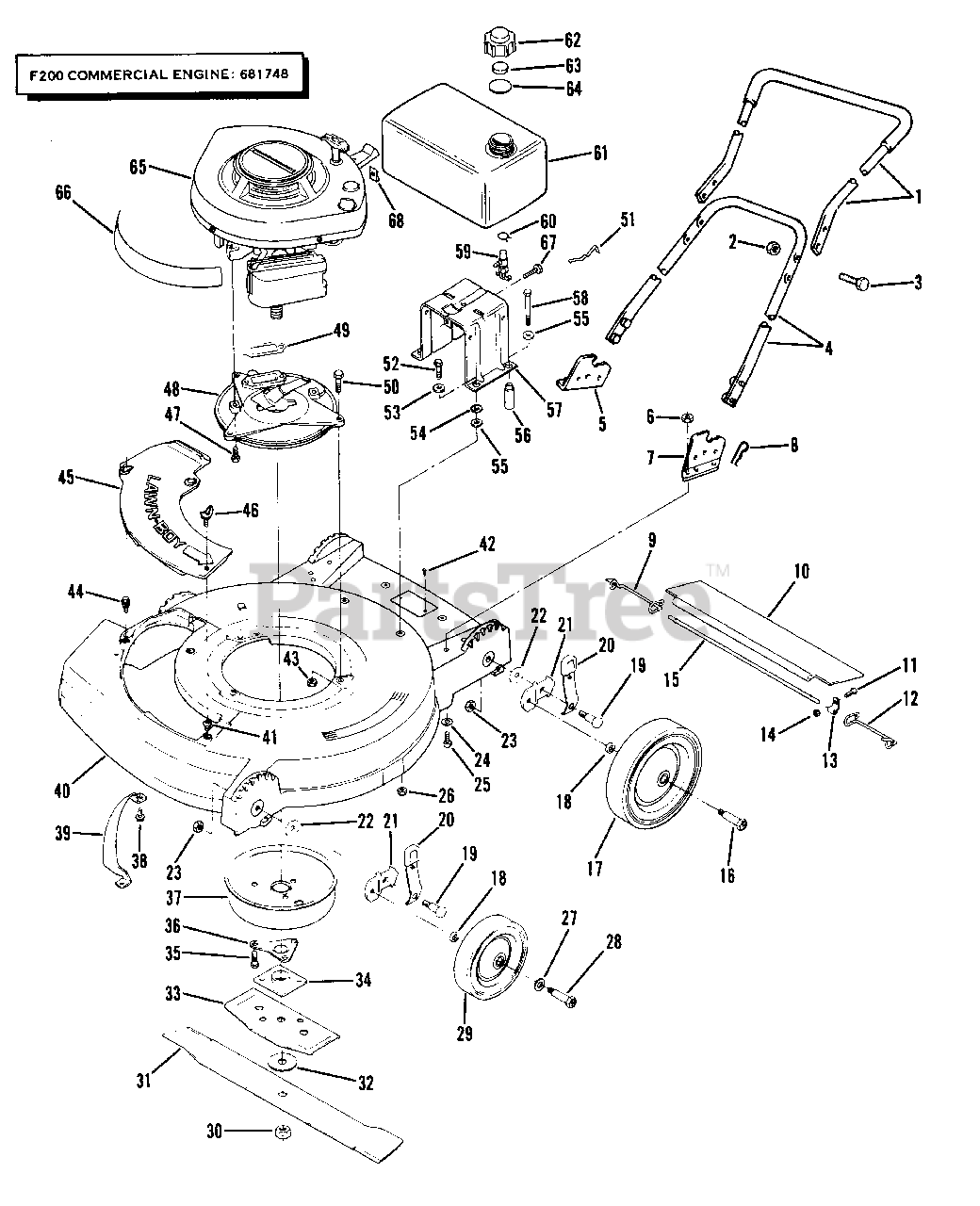

DECK, SHROUD AND HANDLE GROUP-MODEL: 6257 Parts Diagram

  • Title

1

Lawn-Boy 679971

Top Handle & Grip Assembly
(Superseded to 604601)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 602315

Nut-Handle Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 609892

Screw-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 679167

Handle-Bottom & Pin Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 606636

Handle Bracket-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 602315

Nut-Handle Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 606637

Handle Bracket-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 603927

Hair Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 608497

Spring-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 608870

Shield-Trailing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 609891

Screw-Clamp
(Superseded to 700138)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 608498

Spring-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 608161

Clamp

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 602315

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 608174

Rod-Trailing Shield

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 603567

Bolt-Rear Wheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 678406

Wheel & Tire Assembly-Rear
(Superseded to 681980)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$68.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 603620

Washer-Wheel Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 608835

Shoulder Bolt
(Superseded to 610646)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 681229

Knob & Spring Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 608833

Bracket-Wheel Height Adjustment
(Superseded to 608833-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 608834

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 603773

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 8

0

24

Lawn-Boy 609923

Washer-Handle Bracket Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 607665

Bolt-Handle Bracket to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 602315

Nut-Tank Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 609922

Washer-Front Wheel Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 603441

Bolt-Front Wheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 678513

Wheel & Tire Assembly-6"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 603703

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

32

Lawn-Boy 605058

Washer-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 12

0

33

Lawn-Boy 603541

Stiffener-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 677525

Collar & Plate Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 609471

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

36

Lawn-Boy 609786

Support-Crankshaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 681614

Muffler Cover Assembly
(Superseded to 682876)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 608418

Screw-Sems
(Superseded to 46-6811)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

39

Lawn-Boy 608175

Toe Bar

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 681757

Housing-21"
(Superseded to 682754)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 9

0

42

Lawn-Boy 602175

Screw-Model Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 608311

Nut-Muffler Plate to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

44

Lawn-Boy 607809

Screw-Sems-Plate Mounting
(Superseded to 614677)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

45

Lawn-Boy 609677

Cover Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$210.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 606733

Wing Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

47

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

48

Lawn-Boy 609119

Plate-Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

50

Lawn-Boy 604862

Screw-Muffler Plate to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 609830

Spring-Fuel Tank Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 6

0

52

Lawn-Boy 609763

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 609923

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 604995

Grommet-Tank Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 602945

Washer-Tank Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 609762

Spacer-Fuel Tank Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 609747

Bracket-Fuel Tank
(Superseded to 611260)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$108.99

$

In Stock, only 1 left!

0

58

Lawn-Boy 606144

Bolt-Tank Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 677052

Shut-Off Valve & Screen

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

60

Lawn-Boy 312387

Clamp

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

61

Lawn-Boy 609829

Fuel Tank
(Superseded to 145476)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 679456

Fuel Cap
(Superseded to 682755)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

63

Lawn-Boy 607213

Gasket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

64

Lawn-Boy 609150

Baffle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.49

$

In Stock, Qty 11

0

65

Lawn-Boy 681748

Engine-Model F 200 Commercial
(Superseded to 94-5734)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 609868

Decal-Lawn-Boy

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 602192

Screw-Tank Bracket to C.D. Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 609900

Speednut-C.D. Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.49

$

Usually ships in 3-6 days

0
