62570 - Lawn-Boy Vac-Bagger for 44" Precision Riding Mower (SN: 250000001 - 250999999) (2005) BLOWER DRIVE ASSEMBLY Parts Diagram

Vac-Bagger for 44" Precision Riding Mower

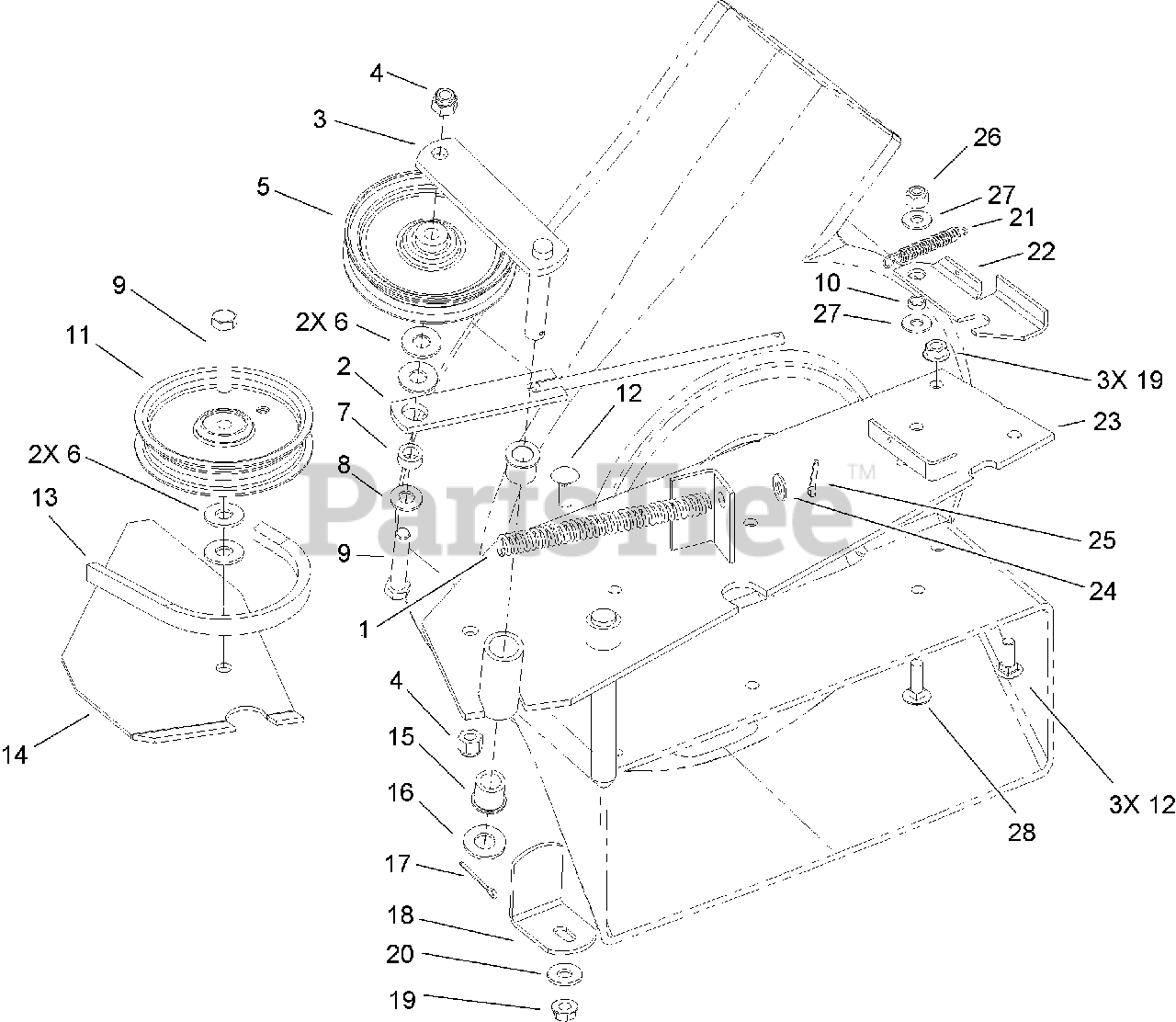

BLOWER DRIVE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 79-7110

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 79-2020

SPRING-ROD

$63.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 79-1970

IDLER ARM ASM

$

$

Not available

4

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 3 left!

0

6

Lawn-Boy 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 107213

SPACER

$11.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 93-8013

BUSHING

$5.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 93-1622

PULLEY-IDLER

$42.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

13

Lawn-Boy 93-8007

BELT-V

$115.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 79-7280-03

SUPPORT-SHIELD, BELT

$

$

Not available

15

Lawn-Boy 100284

BUSHING

$

$

Not available

16

Lawn-Boy 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

18

Lawn-Boy 79-7440

BRACKET-SUPPORT, HOUSING

$20.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 79-7390

SPRING-EXTENSION

$23.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 93-8012-03

Latch-Blower

$

$

Not available

23

Lawn-Boy 93-8016-03

Mounting-Blower

$214.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

26

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0
