62555 - Lawn-Boy Twin Bagger for 38" Precision Riding Mower (SN: 260000001 - 260999999) (2006) BAG FRAME MOUNT ASSEMBLY Parts Diagram

Twin Bagger for 38" Precision Riding Mower

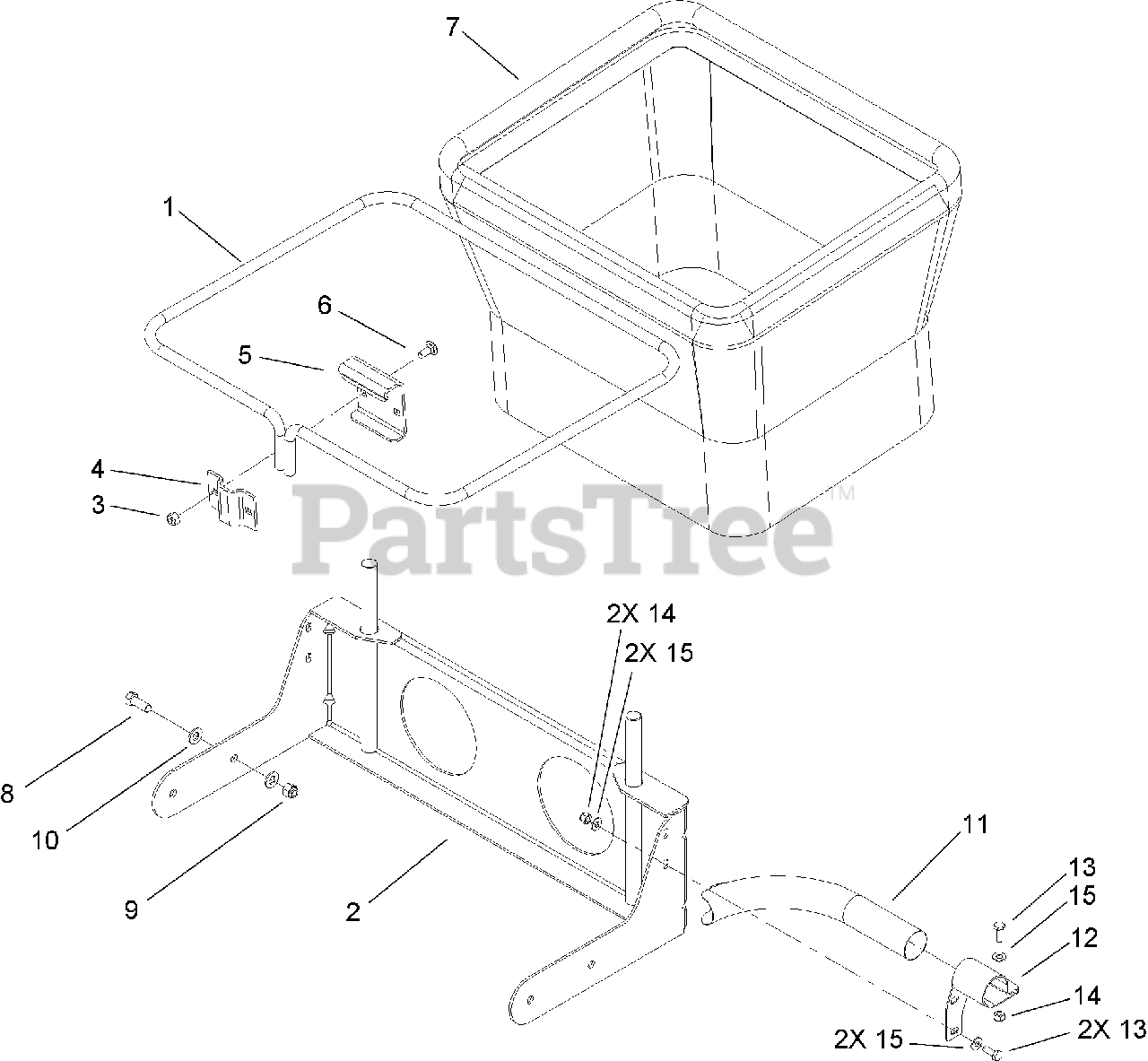

BAG FRAME MOUNT ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 114972-03

FRAME-BAG

$113.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 110-1860-03

BAGGER SUPPORT ASM

$346.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 114974-03

CLAMP

$14.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 114973-03

HANGER-BAG

$26.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 105-6980

BAG

$127.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 108-7186

EXHAUST PIPE ASM

$320.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 108-7187

BRACKET-EXHAUST

$

$

Not available

13

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
