6255 - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) MODEL 6255 HEVI-DUTI COMMERCIAL MOWER PARTS LIST Parts Diagram

Walk-Behind Mower

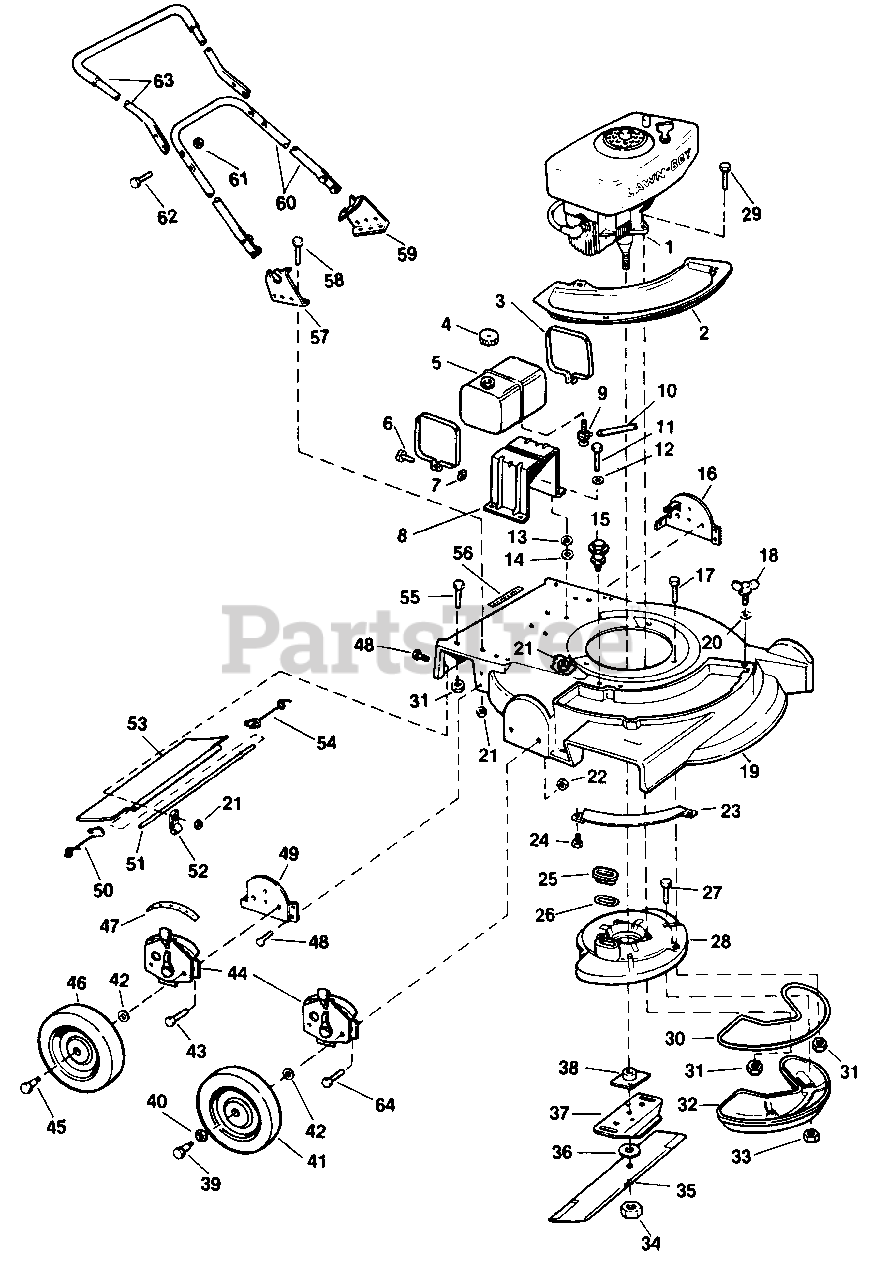

MODEL 6255 HEVI-DUTI COMMERCIAL MOWER PARTS LIST Parts Diagram

  • Title

1

Complete engine, part no. 679423, D-476

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968 A complete engine, part no. 679423, D-476 is available for replacement parts for this engine..

$

$

Not available

2

Lawn-Boy 607560

Cover Assembly
(Superseded to 95-7052)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$36.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 606631

Strap

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

4

Lawn-Boy 679409

Gas Cap

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

5

Lawn-Boy 679163

Gas Tank

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

6

Lawn-Boy 310356

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

7

Lawn-Boy 306542

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Currently unavailable

8

Lawn-Boy 606632

Bracket
(Superseded to 611260)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$108.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 677052

Shut-Off Valve & Screen

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$23.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 606623

Line-Gas

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

11

Lawn-Boy 606144

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

12

Lawn-Boy 306405

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

13

Lawn-Boy 604995

Grommet

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

14

Lawn-Boy 602945

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

15

Lawn-Boy 607809

Screw
(Superseded to 614677)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$4.49

$

In Stock, Qty 16

0

16

Lawn-Boy 681243

Bracket-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

17

Lawn-Boy 604862

Screw-Muffler Plate to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

18

Lawn-Boy 606733

Wing Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$9.99

$

In Stock, Qty 6

0

19

Lawn-Boy 681535

Housing Assembly-21"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

20

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$1.49

$

In Stock, Qty 13

0

21

Lawn-Boy 602315

Nut-Nylok

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$4.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 608311

Nut-Nylok

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$3.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 608175

Toe Bar

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$77.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$3.49

$

In Stock, only 3 left!

0

25

Lawn-Boy 602717

Sleeve-Muffler Gasket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$2.99

$

In Stock, Qty 16

0

26

Lawn-Boy 604624

Gasket-Exhaust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$11.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 607847

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

28

Lawn-Boy 679903

Muffler Plate Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

29

Lawn-Boy 607715

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

30

Lawn-Boy 604516

Gasket-Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

31

Lawn-Boy 608311

Nut-Nylok

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$3.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 604024

Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

33

Lawn-Boy 608559

Nut-Muffler to Muffler Plate Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

34

Lawn-Boy 603164

Blade Nut
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$5.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 603703

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$33.99

$

In Stock, only 3 left!

0

36

Lawn-Boy 605058

Washer-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$5.99

$

In Stock, Qty 12

0

37

Lawn-Boy 603541

Stiffener-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

38

Lawn-Boy 677525

Collar and Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$51.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 603441

Wheel Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$7.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 306428

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Currently unavailable

41

Lawn-Boy 678513

Wheel & Tire Assy.-6"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

42

Lawn-Boy 603620

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$5.99

$

In Stock, Qty 20+

0

43

Lawn-Boy 608373

Screw-Height Adjustment to Mounting Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

44

Lawn-Boy 678462

Height Adjustment Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

45

Lawn-Boy 603567

Wheel Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$15.99

$

In Stock, only 2 left!

0

46

Lawn-Boy 678406

Wheel & Tire Assy.-8"
(Superseded to 681980)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$68.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 608372

Decal

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

48

Lawn-Boy 306487

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

49

Lawn-Boy 681244

Bracket-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

50

Lawn-Boy 608497

Spring-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

51

Lawn-Boy 608174

Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

52

Lawn-Boy 608161

Clamp

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$11.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 608173

Shield
(Superseded to 608870)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

54

Lawn-Boy 608498

Spring-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

55

Lawn-Boy 604862

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

56

Lawn-Boy 606903

21" Heavy Duty Decal

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

57

Lawn-Boy 606636

Handle Bracket, Right

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

58

Lawn-Boy 607665

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$9.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 606637

Handle Bracket, left

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

60

Lawn-Boy 679167

Handle Bottom and Pin Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

61

Lawn-Boy 602315

Nut Stop-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$4.99

$

In Stock, only 2 left!

0

62

Lawn-Boy 602480

Screw-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

63

Lawn-Boy 679971

Top Handle Sect. and Grip Assembly
(Superseded to 604601)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

64

Lawn-Boy 605101

Screw-Height Adj. to Housing Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Not available

65

Lawn-Boy 306409

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note: An Accessory Grasscatcher is available, Part No. 679968

$

$

Currently unavailable
