62522 SH - Husqvarna 22" Walk-Behind Mower (2007-05) FRAME Parts Diagram

22" Walk-Behind Mower

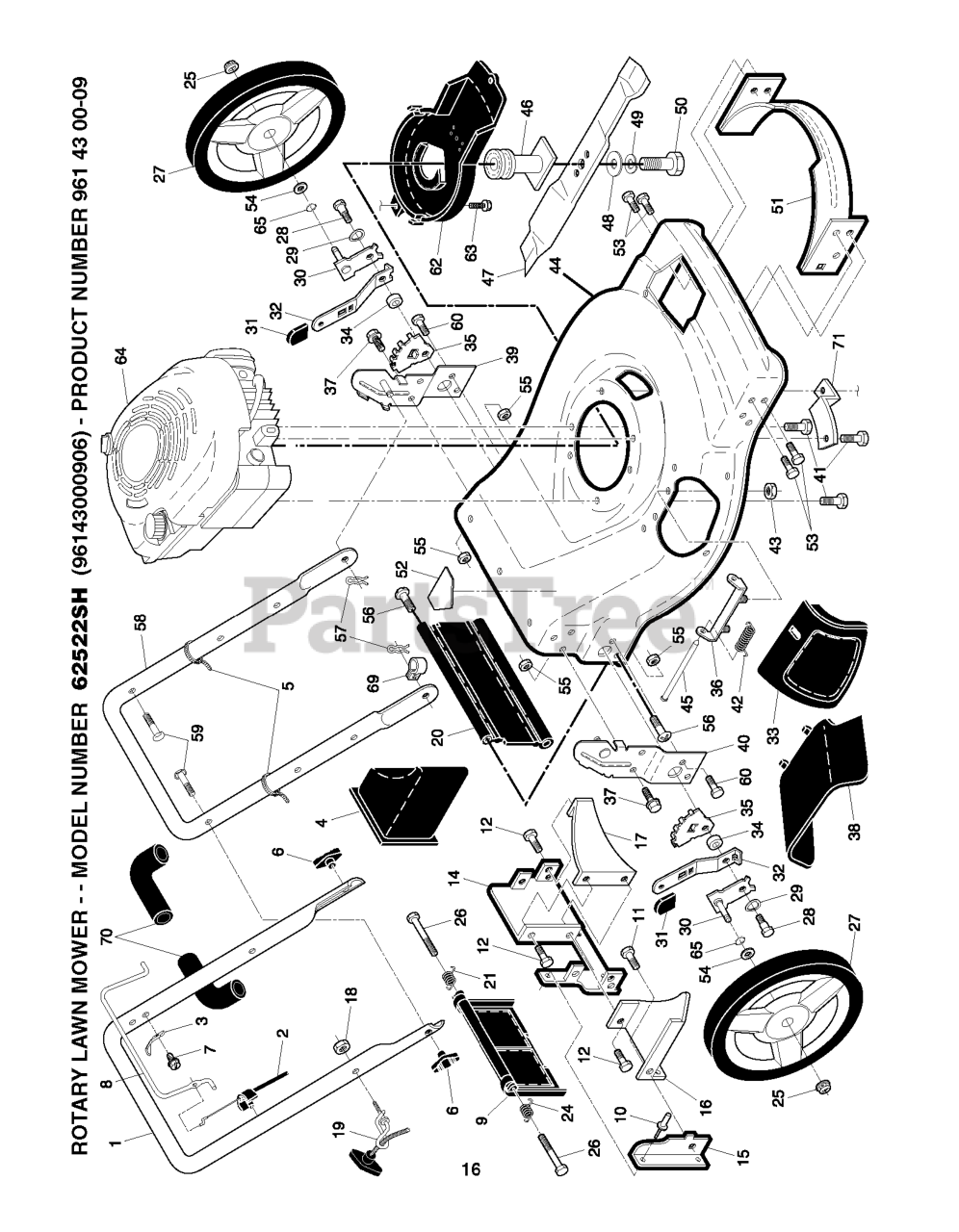

FRAME Parts Diagram

  • Title
2

Husqvarna 532183567

CABLE.ENGINE BRAKE.MZR

$17.99

$

In Stock, only 2 left!

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

71

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532197076

PLATE.BACK
(Superseded to 532195622)

$15.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 4 left!

0

31

Husqvarna 532196401

KNOB.DELUXE.GRAY

$4.99

$

In Stock, only 2 left!

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)
(Superseded to 581579101)

Note: (NOT SHOWN)

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

69

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

70

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

39

Husqvarna 532197150

BRKT.ASM.HND
(Superseded to 532195915)

$

$

Not available

25

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532148941

REAR BAFFLE
(Superseded to 532140661)

$

$

Not available

62

Husqvarna 532405842

DEBRIS SHIELD
(Superseded to 532413032)

$24.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532411334

SIDE BAFFLE
(Superseded to 532410545)

$7.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532197029

DOOR.MULCH.22.REAR.FWGD.GREY

$13.99

$

In Stock, only 2 left!

0

35

Husqvarna 532410626

WHEEL ADJ BRACKET
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

56

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

53

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

61

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532408492

REAR DOOR ASSY
(Superseded to 532401813)

$17.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 1 left!

0

58

Husqvarna 532153406

HANDLE
(Superseded to 532151590)

$22.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

$4.99

$

In Stock, only 3 left!

0

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 11

0

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532199982

HANDLE.ASM.UP.OFF/EZ.CR.W/GRIP
(Superseded to 583444201)

Note: (INCLUDES FOAM GRIP)

$

$

Not available

47

Husqvarna 532406713

BLADE.22.MULCH.STANDARD

$26.99

$

In Stock, Qty 11

0

27

Husqvarna 532413401

RP.WHEEL.12X1.75H 3 SPOKE.RAD
(Superseded to 585911002)

$22.99

$

In Stock, only 1 left!

0

$

$

Not available

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 532191856

HNDL.KNOB.GRAY
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

16

Husqvarna 532177133

DISCHARGE BAFFLE
(Superseded to 532176655)

$

$

Not available

38

Husqvarna 532403819

DEFLECTOR.CLIPPING.22.GREY

$

$

Not available

32

Husqvarna 532409889

SELECTOR SPRING
(Superseded to 532401626)

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

64

NEEDS DESCRIPTION

Note: (ORDER PARTS FROM ENGINE MANUFACTURER)

$

$

Not available

8

Husqvarna 532197019

BAIL.DSTRT.FL.AW.CREAS.ORANGE

$

$

Not available

46

Husqvarna 532194037

RP ADAP.BLDE/PULL
(Superseded to 532443950)

$

$

Not available

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

34

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

4

Husqvarna 532166649

PLUG.MULCH.22RD

$

$

Not available

20

Husqvarna 532189008

SKIRT
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 5

0

51

Husqvarna 532170031

FRONT BAFFLE KIT

$

$

Not available

30

Husqvarna 532406582

ARM.ASM.AXLE.5/9.POS.BZP

$

$

Not available

24

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

$4.99

$

In Stock, only 3 left!

0

40

Husqvarna 532197151

BRKT.ASM.HND
(Superseded to 532195914)

$14.99

$

In Stock, only 1 left!

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 532413387

KIT, MOWER HOUSING
(Superseded to 532402302)

$122.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0
