624809x54B - Murray 24" Snow Thrower (2001) Control Panel Parts Diagram

24" Snow Thrower

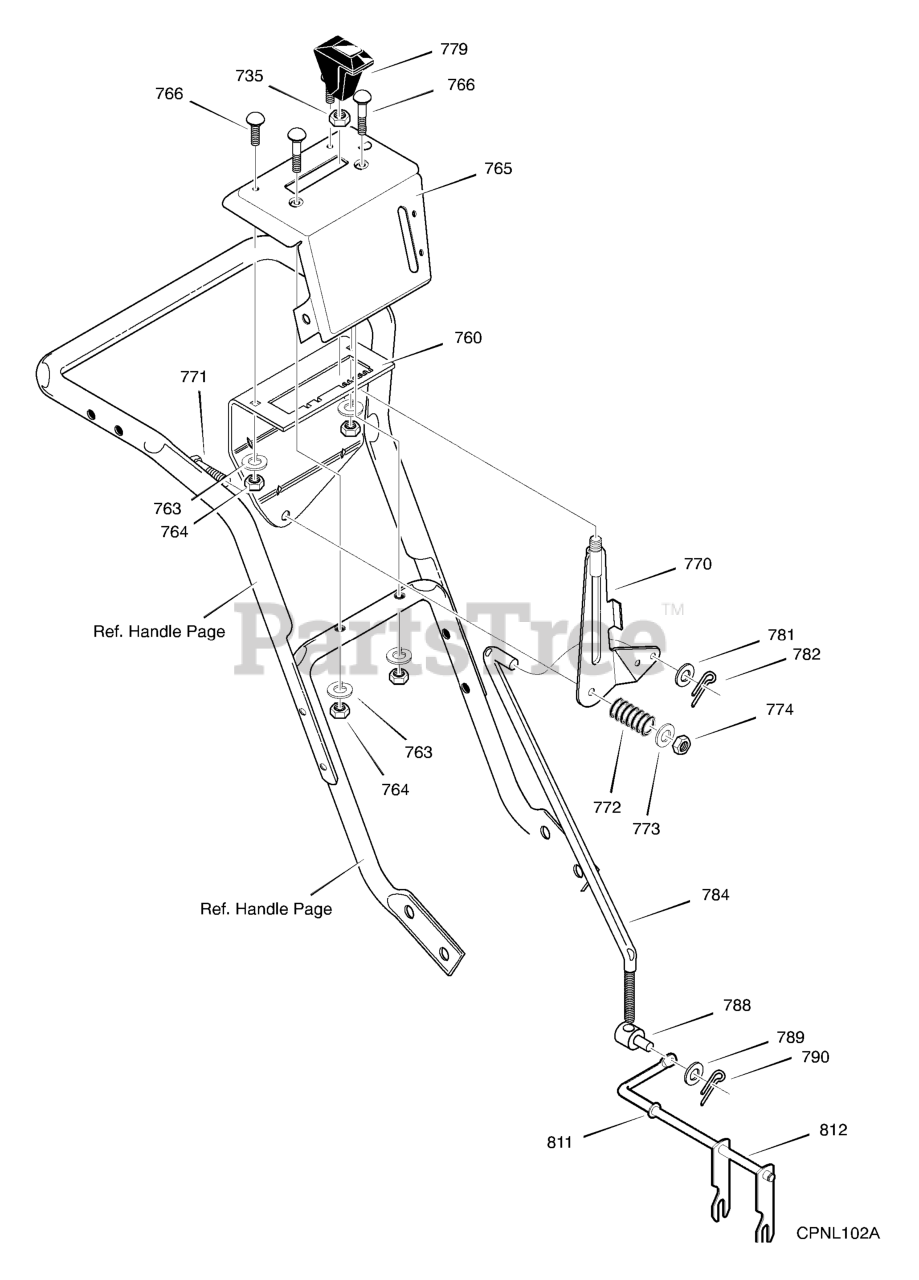

Control Panel Parts Diagram

  • Title
735

Murray 71045

NUT, 3/8-16 HEXJAM

$

$

Not available

760

Murray 308905E717

BRACKET, SHIFT CONTROL

$

$

Currently unavailable

761

Murray 762148

CARR. BOLT, 1/4-20 X 2

$

$

Not available

763

Murray 071059MA

WASHER, HVSPTLK

$

$

Not available

764

Murray 071034

NUT, 1/4-20 REGHEX

$

$

Not available

765

Murray 761973E245

CONTROL PANEL

$

$

Currently unavailable

766

Murray 3809

CARR. BOLT, 1/4-20 X 0.63

$3.49

$

Usually ships in 2-12 days

0

770

Murray 305260E717MA

SHIFT LEVER ASSY

$33.99

$

Usually ships in 2-12 days

0

771

Murray 302900MA

SCREW, 5/16-18 x 1.75

$4.49

$

Usually ships in 2-12 days

0

772

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

774

Murray 71038

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

779

Murray 304728MA

KNOB, SHIFT

$12.99

$

Usually ships in 2-12 days

0

781

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

782

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

784

Murray 761668MA

ROD, SPEED CONTROL

$10.99

$

Usually ships in 2-12 days

0

788

Murray 584593 YZ

NUT, TRUNNION 5/16-24

$

$

Not available

789

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

790

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

811

Murray 579944MA

FLANGED BEARING

$15.99

$

Usually ships in 2-12 days

0

812

Murray 1501110 YZ

ROD ASSY, YOKE PANEL
(Superseded to 1501110YZMA)

$50.99

$

In Stock, only 2 left!

0

813

Murray 11X30MA

RING, RETAINER

$4.49

$

In Stock, Qty 12

0
