624809x54A - Murray 24" Snow Thrower (2001) Frame Components Parts Diagram

24" Snow Thrower

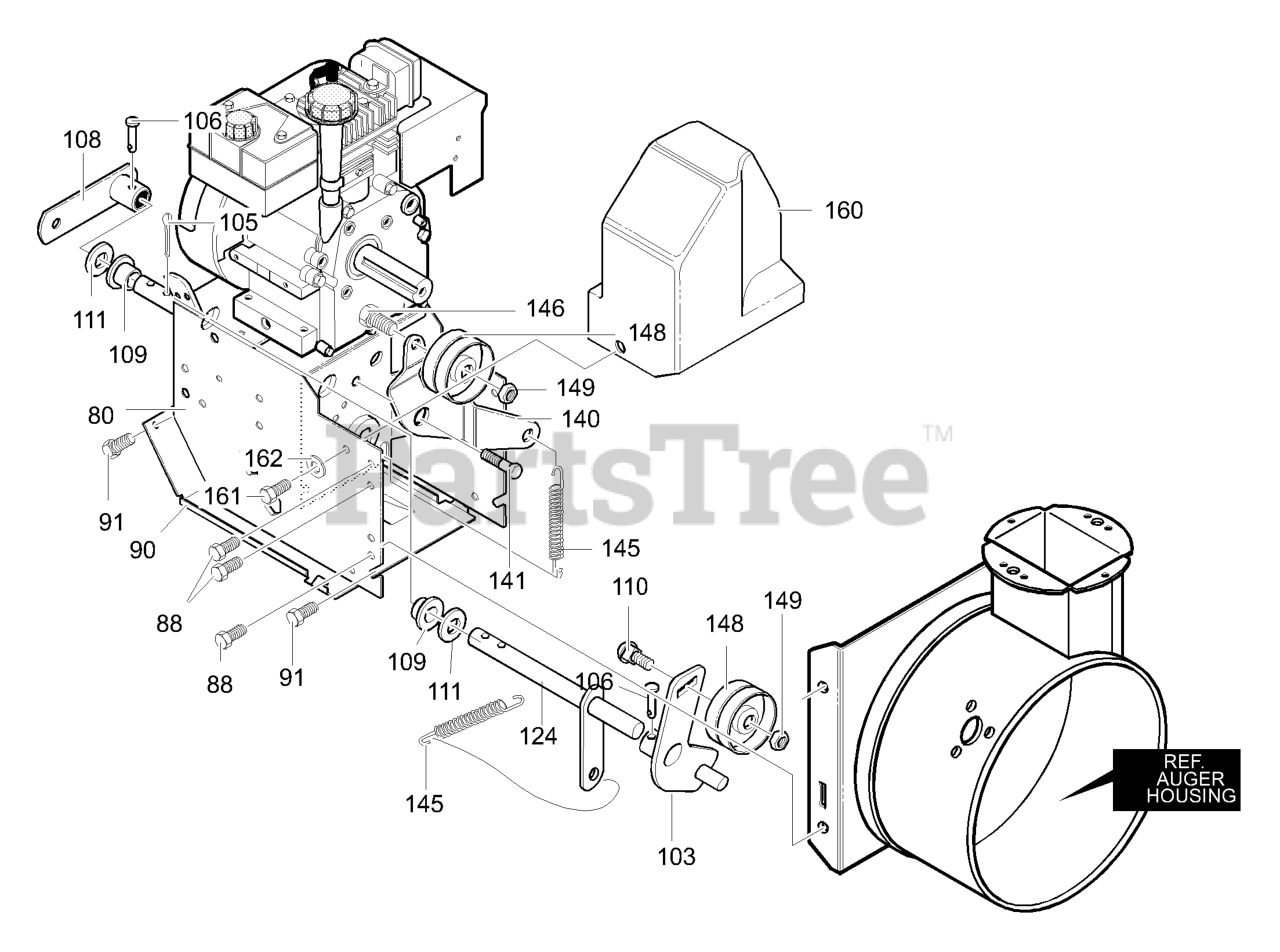

Frame Components Parts Diagram

  • Title

80

Murray 761708-860

FRAME, ASSY

$

$

Currently unavailable

88

Murray 780055MA

SCREW, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

90

Murray 579760-821

COVER, BOTTOM

$

$

Currently unavailable

91

Murray 310169MA

SCREW, 1/4-20X.63 WAHHTAP
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

103

Murray 761822

ASSY., IDLER

$7.99

$

Usually ships in 2-12 days

0

105

Murray 711682MA

HAIR PIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 761761MA

CLIP, KLIK

$6.99

$

Usually ships in 2-12 days

0

108

Murray 761806

ASSY.,SPRING ATTACH WHEEL

$

$

Currently unavailable

109

Murray 53703MA

BEARING, FLANGE

$4.49

$

Usually ships in 2-12 days

0

110

Murray 585781MA

BOLT 3/8-16X1.25
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

FLATWASHER

$5.49

$

In Stock, Qty 11

0

124

UNKNOWN

$

$

Not available

140

Murray 761701MA

LEVER, IDLER ARM TRACTION

$5.49

$

Usually ships in 2-12 days

0

141

Murray 329989MA

BOLT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

145

Murray 53704MA

SPRING, IDLER TRACTION DR

$8.49

$

In Stock, only 3 left!

0

146

Murray 761760

SCREW, 3/8-16 x 1.25

$

$

Not available

148

Murray 50793MA

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 13

0

149

Murray 41529MA

NUT, 3/8-16 CTRLKJAM

$3.99

$

In Stock, Qty 9

0

160

Murray 760481

BELT COVER

$

$

Currently unavailable

161

Murray 310169MA

SCREW, 1/4-20X.63 WAHHTAP
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

162

Murray 071067MA

FLATWASHER, .281X.63X.065

$82.99

$

In Stock, only 1 left!

0
