624809x54A - Murray 24" Snow Thrower (2000) Handle Assembly Parts Diagram

24" Snow Thrower

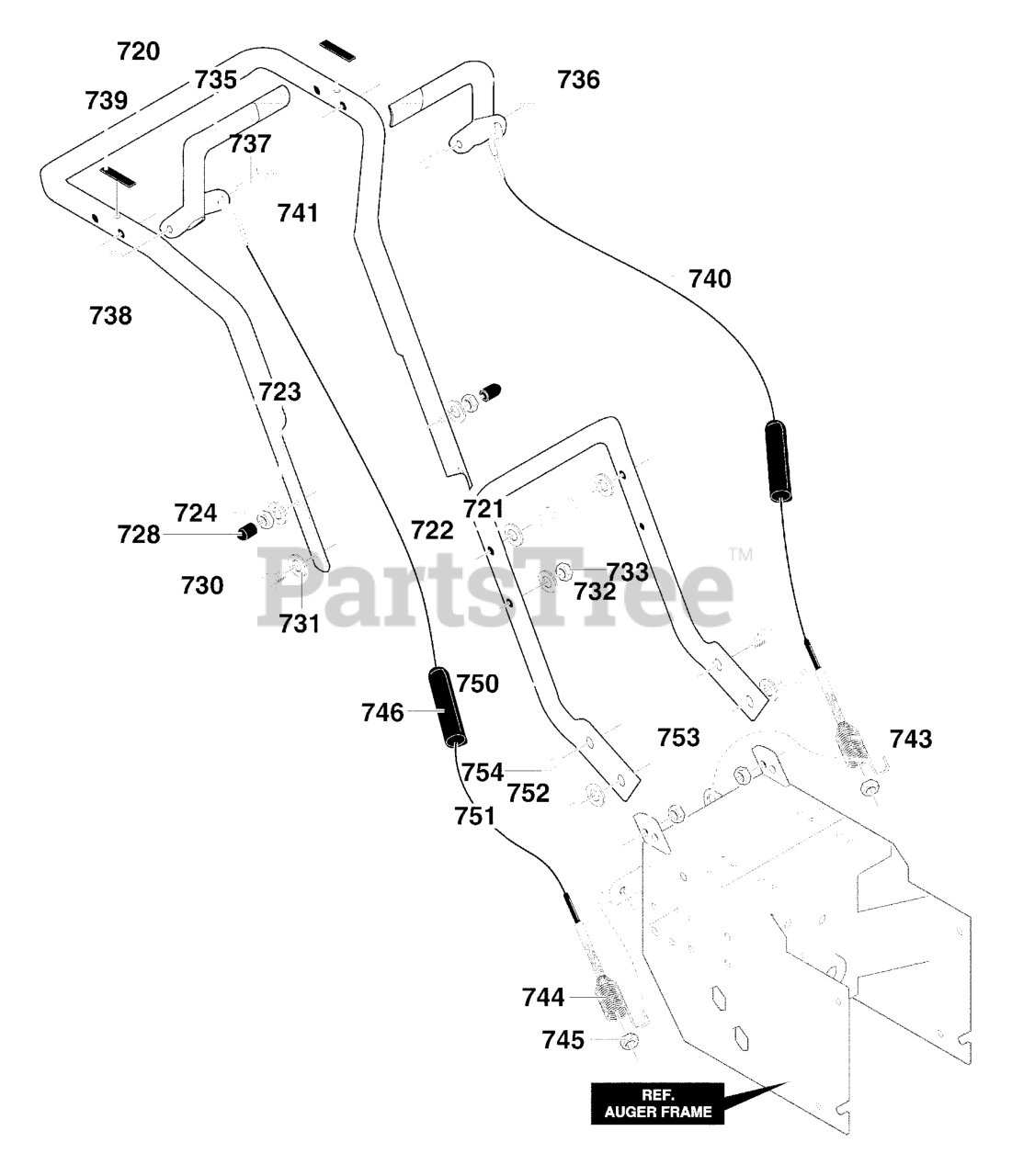

Handle Assembly Parts Diagram

  • Title

720

Murray 310614-821

HANDLE, UPPER LOOP

$

$

Currently unavailable

721

Murray 7288MA

SCREW, 3/8-16 x 3.00

$4.49

$

Usually ships in 2-12 days

0

722

Murray 71072

WASHER, FLAT

$

$

Not available

723

Murray 018X31MA

WASHER

$4.49

$

Usually ships in 2-12 days

0

724

Murray 780072MA

NUT, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

730

Murray 71007

SCREW, 3/8-16 x 2.00

$

$

Not available

731

Murray 71072

WASHER, FLAT

$

$

Not available

732

Murray 018X31MA

WASHER

$4.49

$

Usually ships in 2-12 days

0

733

Murray 780072MA

NUT, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

735

Murray 304914MA

HANDLE, RIGHT

$290.99

$

Usually ships in 2-12 days

0

736

Murray 304914MA

HANDLE, LEFT

$290.99

$

Usually ships in 2-12 days

0

737

Murray 760074MA

PIVOT CLUTCH PIN

$10.99

$

Usually ships in 2-12 days

0

738

Murray 3535MA

PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1579MA

CABLE, CLUTCH 28.44L

$23.99

$

Usually ships in 2-12 days

0

741

Murray 761872MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, Qty 7

0

743

Murray 579869MA

TENSION SPRING

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 780029

NUT, 1/4-20

$

$

Not available

746

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

Usually ships in 2-12 days

0

750

Murray 5543-821

HANDLE, LOWER

$

$

Currently unavailable

751

Murray 70984

SCREW, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

752

Murray 120638

WASHER

$

$

Not available

753

Murray 1498

NUT, 5/16-18

$

$

Not available

754

Murray 782967MA

SCREW, 5/16-18 x 0.75

$4.49

$

Usually ships in 2-12 days

0
