624804x79B - Briggs & Stratton 24" Snow Thrower (2000) (Spirit) Discharge Chute Assembly Parts Diagram

24" Snow Thrower

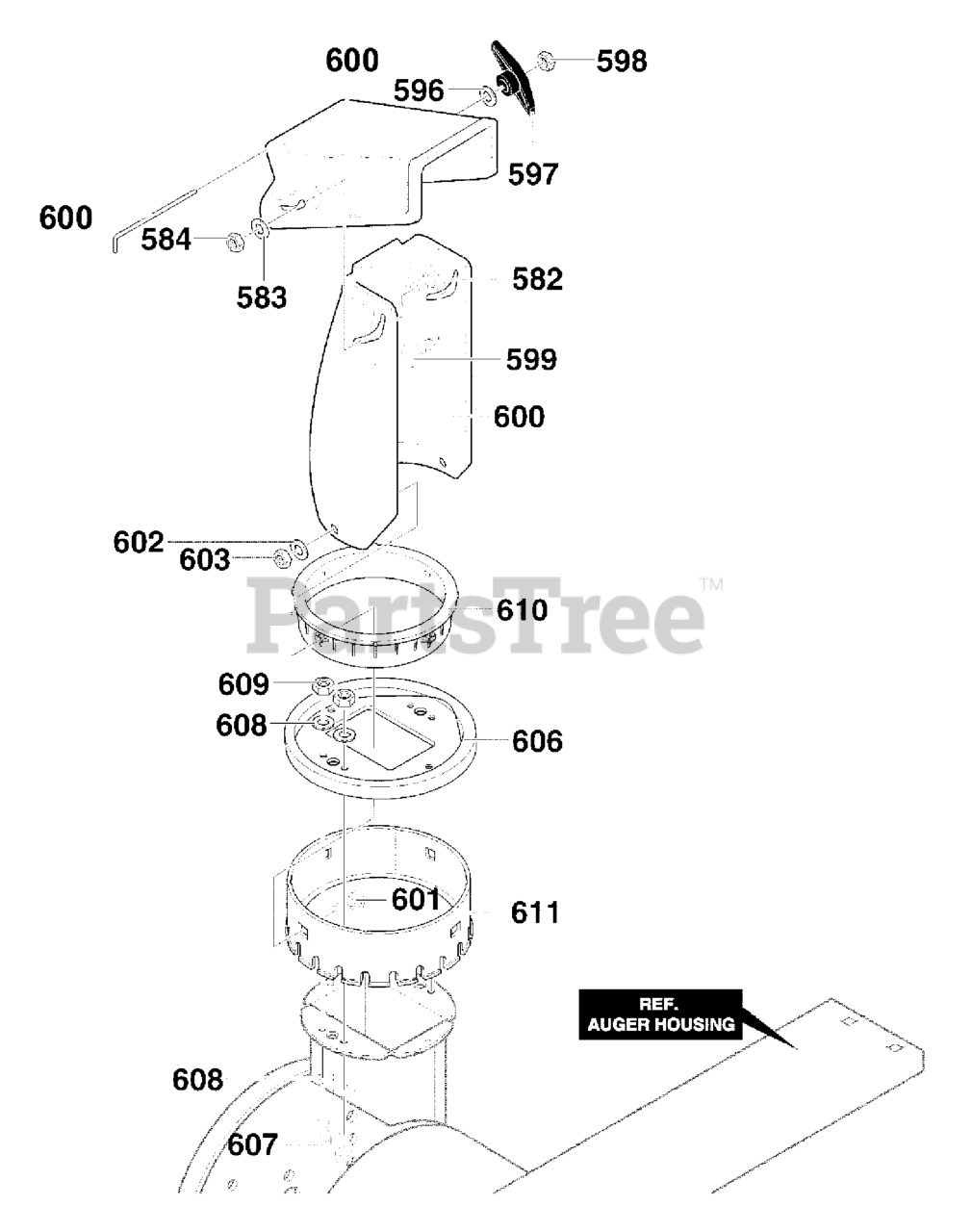

Discharge Chute Assembly Parts Diagram

  • Title
582

$4.99

$

In Stock, only 1 left!

0

583

Murray 120393

WASHER, FLAT

$

$

Not available

584

Murray 1498

NUT, 5/16-18

$

$

Not available

596

Murray 120393

WASHER, FLAT

$

$

Not available

597

Murray 13527

KNOB, T

$

$

Not available

598

Murray 71037

NUT, HEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

Murray 302843MA

BOLT, CARRIAGE

$

$

Not available

600

Murray 762222MA

CHUTE, ASSEMBLY

$51.99

$

In Stock, Qty 17

0

601

Murray 586280

BOLT, 5/16-18X1.00

$

$

Not available

602

Murray 120393

FLATWASHER

$

$

Not available

603

Murray 71038

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

606

Murray 585214-853

COLLAR, CHUTE

$

$

Currently unavailable

607

Murray 302628MA

SCREW, 1/4-20X .75

$4.49

$

In Stock, Qty 7

0

608

Murray 071067MA

FLATWASHER

$82.99

$

In Stock, only 1 left!

0

609

Murray 780029

NUT, HEX

$

$

Not available

610

Murray 337227MA

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 585193MA

RETAINER, RING OUTER

$29.99

$

In Stock, Qty 20+

0
