624804x79B - Briggs & Stratton 24" Snow Thrower (2000) (Spirit) Chute Rod Assembly Parts Diagram

24" Snow Thrower

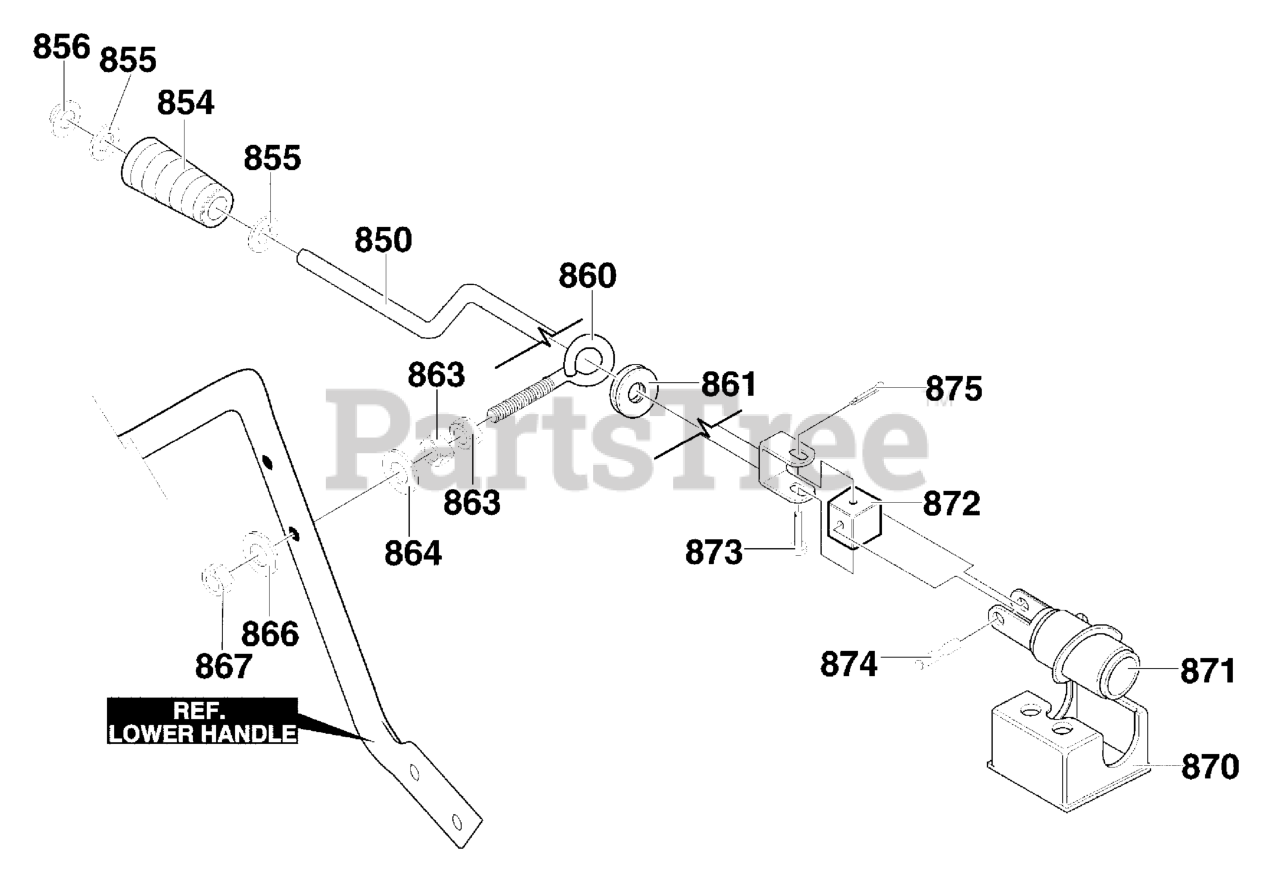

Chute Rod Assembly Parts Diagram

  • Title
850

Murray 585426MA

CRANK ASSEMBLY

$54.99

$

Usually ships in 2-12 days

0

854

Murray 51443MA

KNOB, SLEEVE

$7.49

$

Usually ships in 2-12 days

0

855

Murray 309312MA

WASHER, FLAT

$4.49

$

In Stock, only 3 left!

0

856

Murray 73664MA

NUT, PUSH ON

$4.99

$

In Stock, only 3 left!

0

860

Murray 581618MA

BOLT, EYE

$5.49

$

Usually ships in 2-12 days

0

861

Murray 148MA

GROMMET, EYE BOLT

$

$

Not available

863

Murray 124829

NUT, HEX JAM

$

$

Not available

864

Murray 71072

WASHER, FLAT

$

$

Not available

866

Murray 71072

WASHER, FLAT

$

$

Not available

867

Murray 71046

NUT, HEX
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

870

Murray 585195MA

BRKT, WORM

$

$

Not available

871

Murray 585196MA

WORM, GEAR CHUTE

$11.99

$

In Stock, Qty 6

0

872

Murray 578063MA

BLOCK, UNIV PIV

$5.49

$

In Stock, only 2 left!

0

873

Murray 578309MA

PIN, CLEVIS

$5.49

$

In Stock, Qty 6

0

874

Murray 578060MA

PIN, UNIVERSAL JOINT

$7.49

$

Usually ships in 2-12 days

0

875

Murray 579493MA

PIN, COTTER

$4.49

$

In Stock, only 1 left!

0
