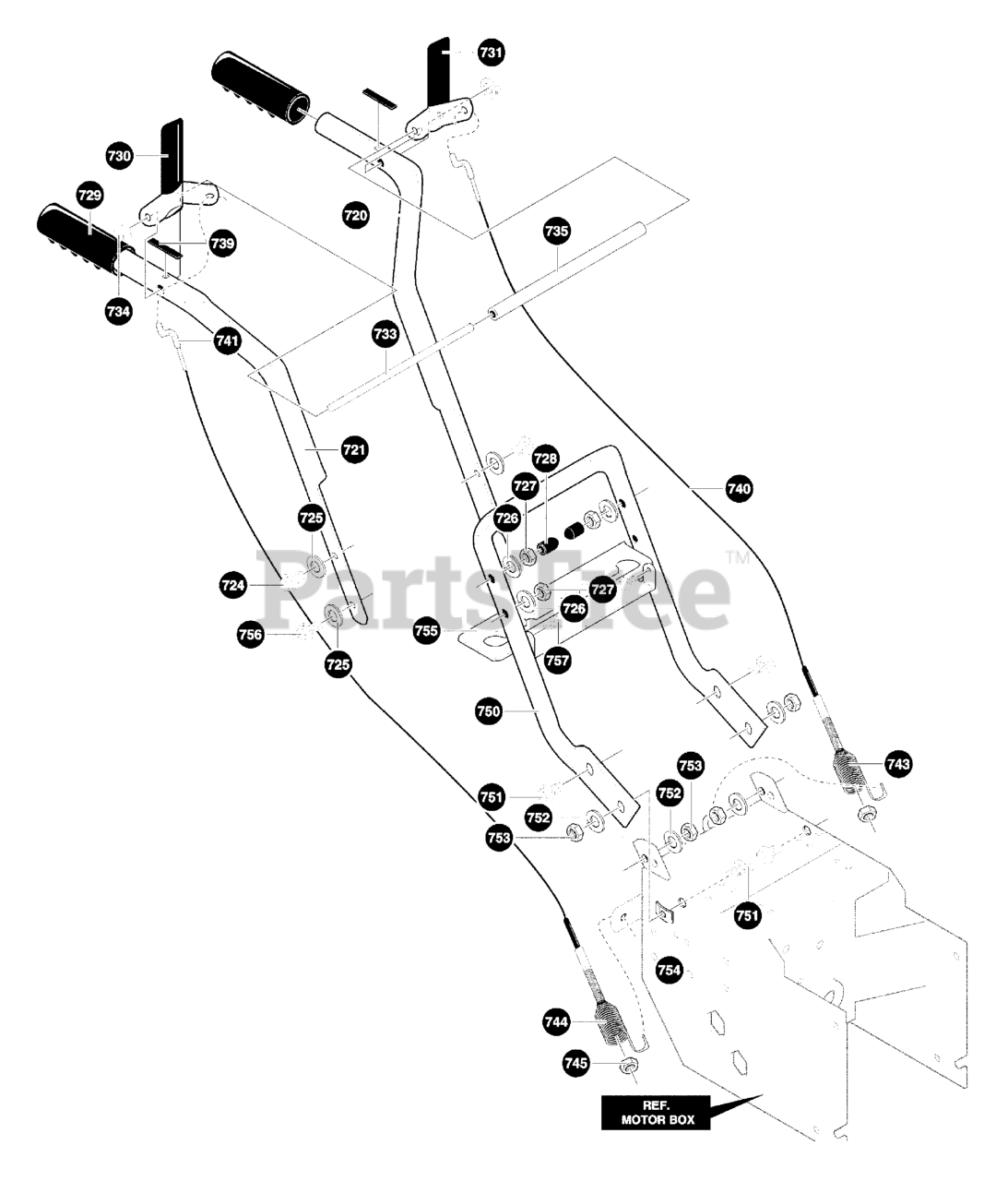

624804x31B - Scotts 24" Snow Thrower (2000) Handle Assembly Parts Diagram

24" Snow Thrower

Handle Assembly Parts Diagram

  • Title
720

Murray 762335-821

HANDLE, UPPER LH

$14.99

$

Usually ships in 2-12 days

0

721

Murray 762336-821

HANDLE, UPPER RH

$14.99

$

Usually ships in 2-12 days

0

724

Murray 11234MA

SCREW, 5/16-18 x 2.75

$5.99

$

Usually ships in 2-12 days

0

725

Murray 120393

WASHER, FLAT .349X.69X.066

$

$

Not available

726

Murray 120638

WASHER, .31X.58X.08

$

$

Not available

727

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray 11261MA

STOP, RED PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 337399MA

GRIP-HANDLE FINGER

$5.49

$

Usually ships in 2-12 days

0

730

Murray 337816-821

LEVER, ASSY CLUTCH DRIVE RH

$

$

Currently unavailable

731

Murray 337815-821

LEVER, ASSY CLUTCH DRIVE LH

$

$

Currently unavailable

733

Murray 337381MA

ROD, PIVOT CLUTCH

$50.99

$

In Stock, only 1 left!

0

734

Murray 761105MA

NUT, PUSH 1/4" HEAVY DUTY
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

735

Murray 337373MA

SPACER - HANDLE

$8.49

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1579MA

CABLE, CLUTCH 28.44LG

$23.99

$

Usually ships in 2-12 days

0

741

Murray 761589MA

CABLE, AUGER CLUTCH 25.5"

$15.99

$

In Stock, only 3 left!

0

743

Murray 579869MA

SPRING, TENSION

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

750

Murray 339541-821

HANDLE, LOWER

$14.99

$

Usually ships in 2-12 days

0

751

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

752

Murray 120638

WASHER, SPTLT .31X.58X.08

$

$

Not available

753

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

754

Murray 309436MA

PUSHNUT, 5/16

$3.99

$

Usually ships in 2-12 days

0

755

Murray 337407-821

BRACKET, GEAR SEL.

$

$

Currently unavailable

756

Murray 180087

SCREW, 5/16-18 x 2.00

$

$

Not available

757

Murray 300303MA

SCREW, PLASTITE

$4.49

$

In Stock, only 1 left!

0
