624605x61A - Murray 24" Snow Thrower (2000) Frame Components Assembly Parts Diagram

24" Snow Thrower

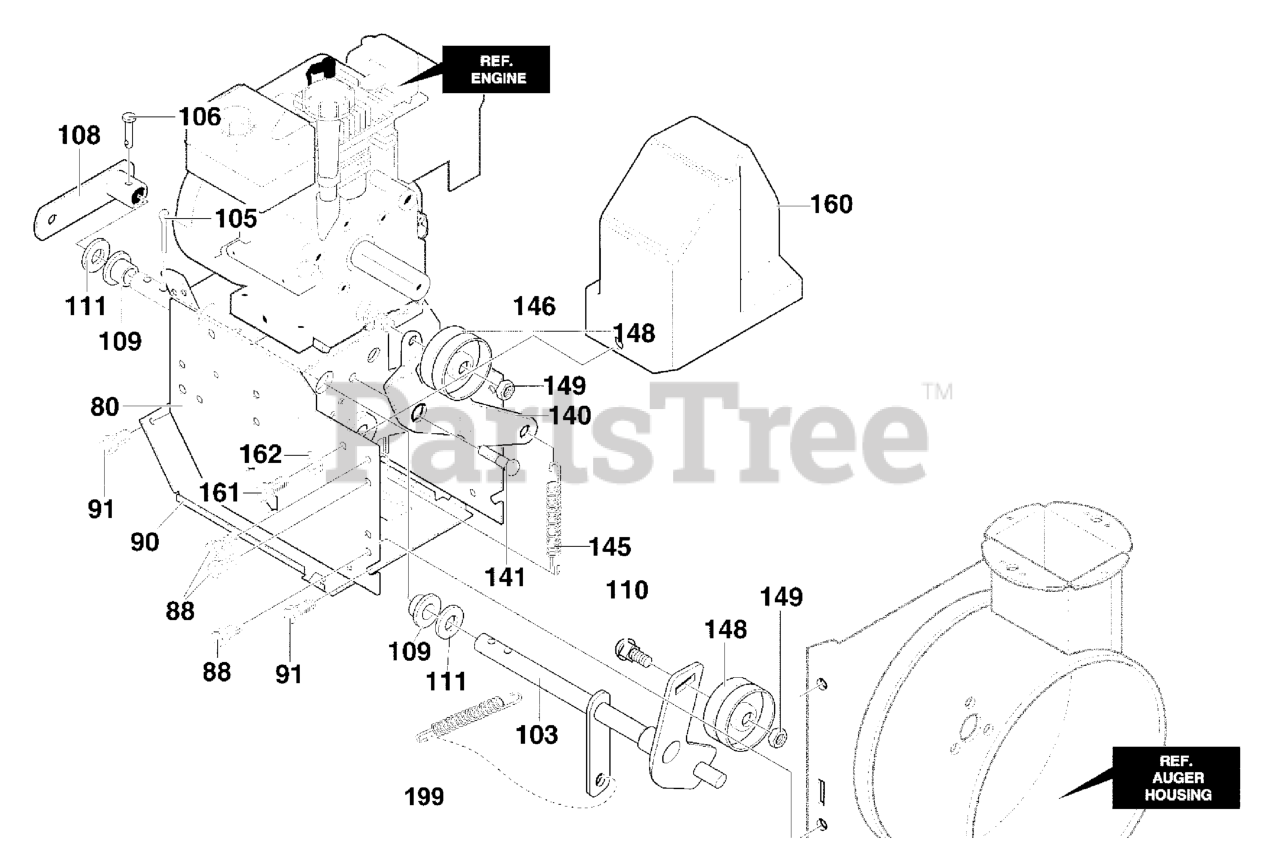

Frame Components Assembly Parts Diagram

  • Title

80

Murray 761702-982

FRAME ASSY

$

$

Currently unavailable

88

Murray 780055MA

SCREW, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

90

Murray 583031-853

COVER, BOTTOM

$

$

Currently unavailable

91

Murray 310169MA

SCREW, 1/4-20X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

103

Murray 762295MA

IDLER ASSEMBLY

$44.99

$

Usually ships in 2-12 days

0

105

Murray 711682MA

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 761761MA

PIN, KLIK 3/16" DIA

$6.99

$

Usually ships in 2-12 days

0

108

Murray 761766MA

ASSY., SPRING ATTACH

$7.49

$

Usually ships in 2-12 days

0

109

Murray 53703MA

BEARING, FL.

$4.49

$

Usually ships in 2-12 days

0

110

Murray 585781MA

BOLT, 3/8-16X1.25 CARR.
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

140

Murray 761701MA

LEVER, IDLER ARM TRACTION

$5.49

$

Usually ships in 2-12 days

0

141

Murray 329989MA

BOLT, .625X.135 HHSH 5/16-18

$3.99

$

Usually ships in 2-12 days

0

145

Murray 53704MA

IDLER SPRING TRACTION DRIVE

$8.49

$

In Stock, only 3 left!

0

146

Murray 761760

SCREW, 3/8-16 x 1.25

$

$

Not available

148

Murray 50793MA

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 13

0

149

Murray 41529MA

NUT, 3/8-16

$3.99

$

In Stock, Qty 9

0

160

Murray 760479

COVER, BELT

$

$

Not available

161

Murray 310169MA

SCREW, 1/4-20X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

162

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

199

Murray 760988MA

SPRING, IDLER AUGER DRIVE

$29.99

$

Usually ships in 2-12 days

0
