624555x85A - Murray 24" Snow Thrower (2005) Discharge Chute Parts Diagram

24" Snow Thrower

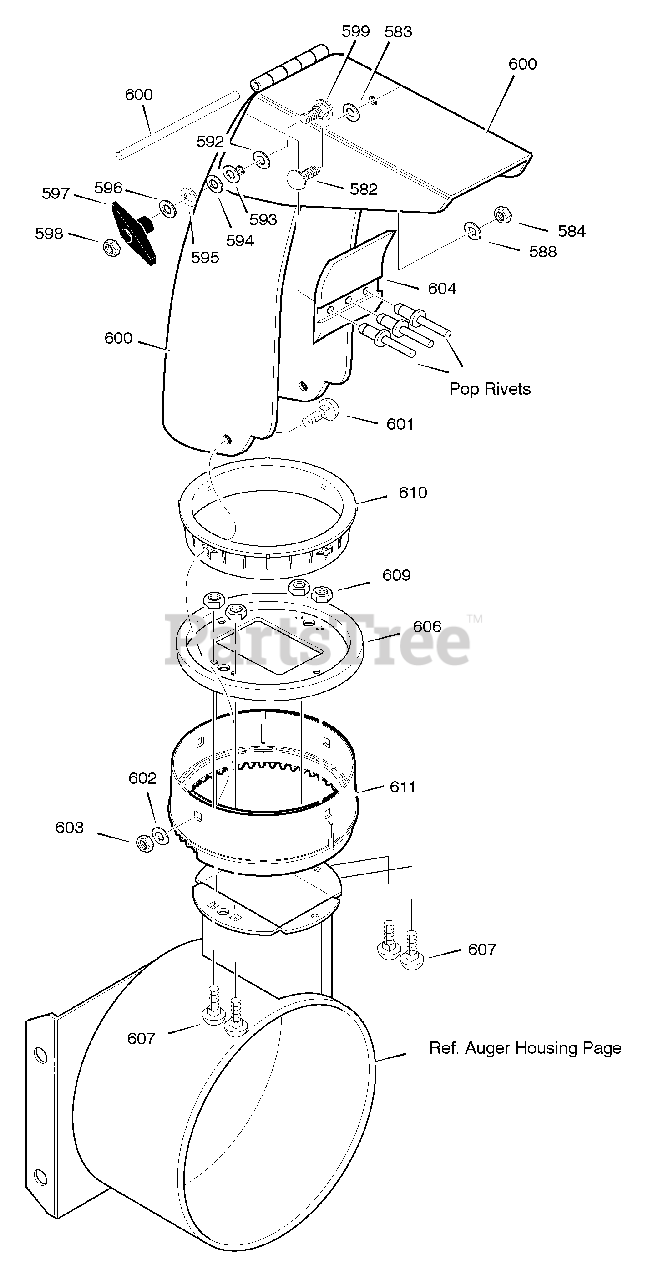

Discharge Chute Parts Diagram

  • Title
582

Murray 340720MA

BOLT, CARRIAGE 5/16-18 X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

583

Murray 12021

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

584

Murray 71038

NUT, 5/16-18 REGHEX NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

588

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

592

Murray 12021

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

593

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

594

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

595

Murray 71060

WASHER, SPLIT
(Superseded to 1501670MA)

$

$

Not available

596

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

597

Murray 57171

KNOB, T 3.00
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 7

0

598

Murray 15X144

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

Murray 002X97MA

BOLT, 5/16-18X1.50
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

600

Murray 1501884E701

CHUTE ASSEMBLY AND GUARD

$120.99

$

Usually ships in 2-12 days

0

601

Murray 2X100MA

BOLT, 5/16-18 X1.00
(Superseded to 704217)

$

$

Not available

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

603

Murray 71038

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray 760268MA

FLAP, CHUTE

$10.99

$

Usually ships in 2-12 days

0

606

Murray 1501932 YZ

CHUTE COLLAR
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

SCREW, 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

609

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 18

0

610

Murray 337227MA

RETAINER RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282MA

RETAINER RING OUTER

$26.99

$

In Stock, only 2 left!

0
