624518x31A - Scotts 24" Snow Thrower (2004) Handle Assembly Parts Diagram

24" Snow Thrower

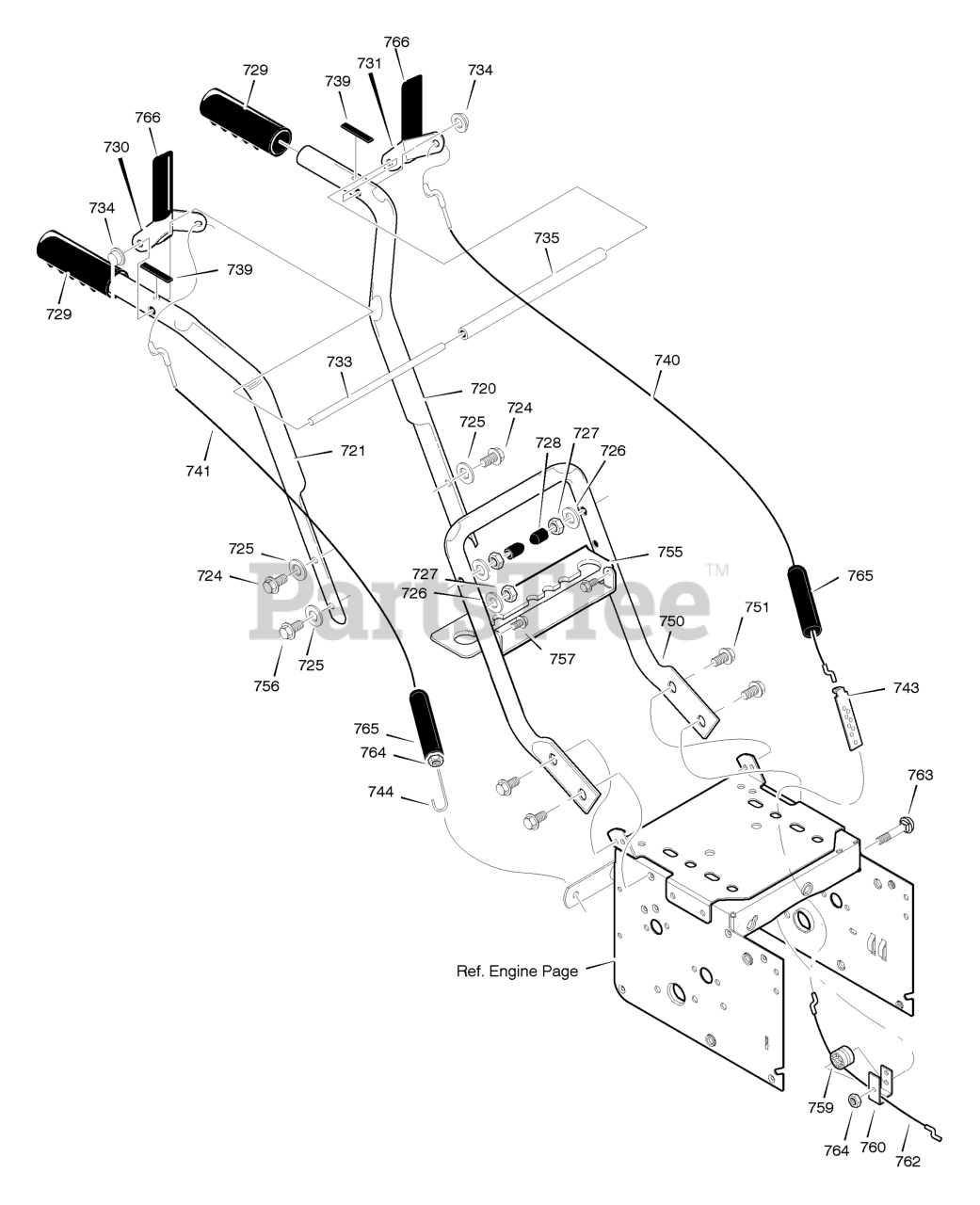

Handle Assembly Parts Diagram

  • Title
720

Murray 1501205E717

HANDLE, UPPER LH

$

$

Currently unavailable

721

Murray 1501206E717

HANDLE, UPPER RH

$

$

Currently unavailable

724

Murray 11234MA

SCREW, 5/16-18 x 2.75

$5.99

$

Usually ships in 2-12 days

0

725

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

726

Murray 71060

WASHER, SPTLK .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

727

Murray 15X144

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray 11261MA

STOP, RED PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 337399MA

GRIP-HANDLE FINGER

$5.49

$

Usually ships in 2-12 days

0

730

Murray 337816E717

LEVER, ASSY CLUTCH DRIVE RH

$

$

Currently unavailable

731

Murray 337815E717

LEVER, ASSY CLUTCH DRIVE LH

$

$

Currently unavailable

733

Murray 337381MA

ROD, PIVOT CLUTCH

$50.99

$

In Stock, only 1 left!

0

734

Murray 761105MA

NUT, PUSH ON CAP
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

735

Murray 337373MA

SPACER-HANDLE

$8.49

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1501123MA

CABLE, CLUTCH 28.44L

$12.99

$

In Stock, Qty 16

0

741

Murray 761872MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, Qty 7

0

743

Murray 313441MA

BRACKET, CABLE ADJUSTER

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

750

Murray 339541E717MA

HANDLE, LOWER
(Superseded to 1740701ASM)

$140.99

$

Usually ships in 2-12 days

0

751

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

755

Murray 337407E717

BRKT, GEAR SELECTOR

$

$

Currently unavailable

756

Murray 6751

SCREW, 5/16-18 x 2.00
(Superseded to 6751MA)

$

$

Not available

757

Murray 310169MA

SCREW, 1/4-20 X 0.63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

759

Murray 579860MA

SPOOL-CABLE, AUGER CLUTCH

$5.99

$

In Stock, Qty 7

0

760

Murray 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, LOWER DRIVE 12"

$8.49

$

In Stock, Qty 9

0

763

Murray 001798

BOLT, HEX 1/4-20 X 1.50 YZ
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

764

Murray 15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

765

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

Usually ships in 2-12 days

0

766

$8.49

$

In Stock, only 2 left!

0
