624509x4A - Murray 24" Snow Thrower (2001) Gear Case Parts Diagram

24" Snow Thrower

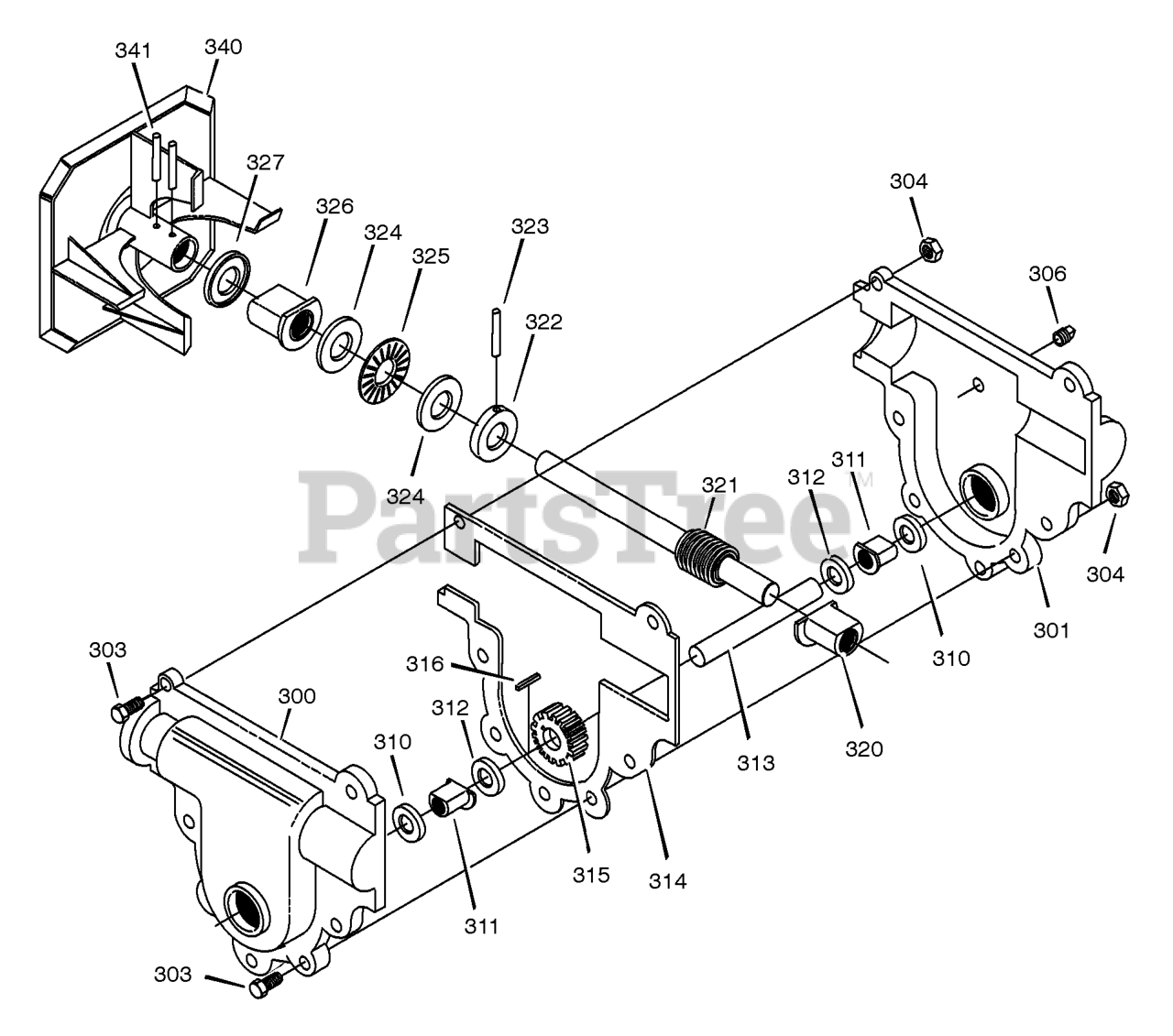

Gear Case Parts Diagram

  • Title
300

Murray 10577MA

CASE, GEAR, RH

$22.99

$

In Stock, only 1 left!

0

301

Murray 10576MA

CASE, GEAR, LH

$22.99

$

In Stock, Qty 5

0

303

Murray 710025

SCREW,1/4-20X.75

$

$

Not available

304

Murray 302635

NUT,1/4-20

$4.99

$

Usually ships in 2-12 days

0

306

Murray 9344MA

SCREW, 3/8-16 x 0.50
(Superseded to 704213)

$5.49

$

In Stock, only 1 left!

0

310

Murray 9566MA

SEAL, OIL

$12.99

$

In Stock, only 2 left!

0

311

Murray 50304MA

BEARING, FL

$8.49

$

In Stock, Qty 14

0

312

Murray 48275MA

WASHER, FLAT

$6.49

$

In Stock, Qty 6

0

313

Murray 340286MA

SHAFT, AUGER OUTPUT

$57.99

$

Usually ships in 2-12 days

0

314

Murray 51279MA

GASKET, GEAR BOX

$12.99

$

In Stock, Qty 10

0

315

Murray 51405MA

GEAR, WORM

$78.99

$

In Stock, only 2 left!

0

316

Murray 431787MA

KEY, WOODRUFF #61
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

320

Murray 50221MA

BRNG, FL

$8.49

$

In Stock, only 4 left!

0

321

Murray 1501128MA

SHAFT, AUGER INPUT (IMPELLER)

$84.99

$

Usually ships in 2-12 days

0

322

Murray 580295MA

COLLAR, THRUST

$22.99

$

Usually ships in 2-12 days

0

323

Murray 454565MA

PIN, SPRING

$

$

Not available

324

Murray 48275MA

WASHER, FLAT

$6.49

$

In Stock, Qty 6

0

325

Murray 50684MA

BRNG, ROLL

$6.49

$

In Stock, only 1 left!

0

326

Murray 50304MA

BRNG, FL

$8.49

$

In Stock, Qty 14

0

327

Murray 9566MA

SEAL, OIL

$12.99

$

In Stock, only 2 left!

0

340

$246.99

$

Usually ships in 2-12 days

0

341

Murray 454565MA

PIN, SPRING

$

$

Not available

--

Murray 333431MA

LUBRIPLATE, GR132, 14oz
(Superseded to 770622)

Note: (Not Illustrated)

$31.99

$

Usually ships in 2-12 days

0
