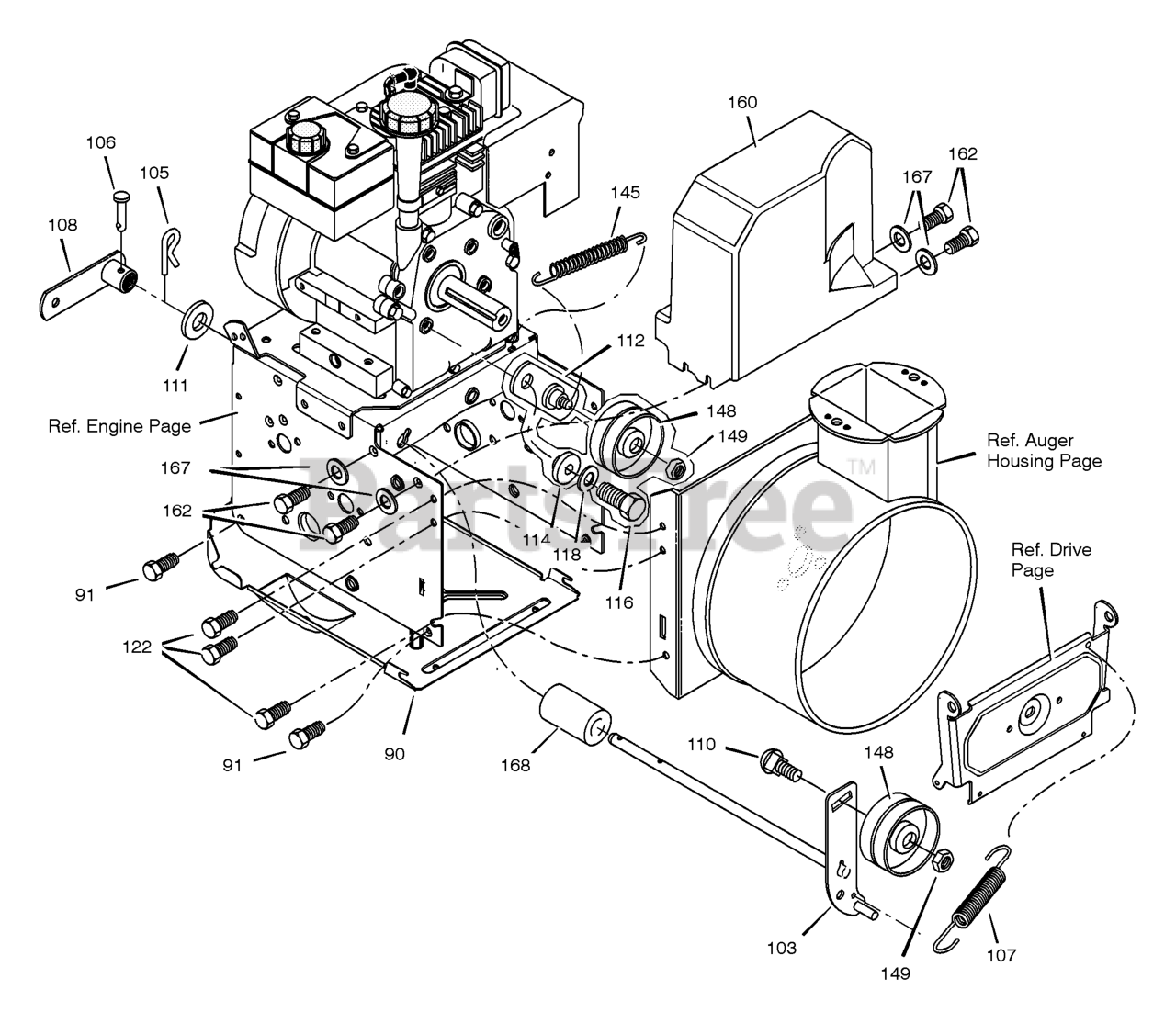

624509x4A - Murray 24" Snow Thrower (2001) Frame Parts Diagram

24" Snow Thrower

Frame Parts Diagram

  • Title

90

Murray 1501055E701MA

COVER, BOTTOM

$35.99

$

In Stock, only 2 left!

0

91

Murray 310169MA

SCREW, 1/4-20X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

103

Murray 1501111 YZ

IDLER ASSEMBLY, AUGER

$

$

Not available

105

Murray 711682MA

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 761761MA

PIN, KLIK 3/16" DIA

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X159MA

SPRING, TENSION

$6.99

$

In Stock, Qty 9

0

108

Murray 761675 YZ

ASSY., SPRING ATTACH

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781MA

BOLT, 3/8-16X1.25 CARR.
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

112

Murray 1501112 YZ

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

114

Murray 1501065MA

BUSHING, IDLER BRACKET

$5.49

$

In Stock, only 2 left!

0

116

Murray 710097

SCREW 5/16-24 X .75

$10.99

$

In Stock, only 1 left!

0

118

Murray 071060

WASHER, SPLIT

$3.49

$

In Stock, Qty 20+

0

122

Murray 780055MA

SCREW, TAP 5/16-18 X .50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

145

Murray 53704MA

SPRING, IDLER TRACTION DRIVE

$8.49

$

In Stock, only 2 left!

0

148

Murray 50793MA

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 6

0

149

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

160

Murray 1501053MA

COVER, BELT
(Superseded to 1502169MA)

$69.99

$

Usually ships in 2-12 days

0

162

Murray 26X306MA

SCREW, HEX HEAD

$4.99

$

Usually ships in 2-12 days

0

167

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

168

Murray 1501200MA

SPACER, AUGER BRACKET

$5.99

$

Usually ships in 2-12 days

0
