624508x61A - Murray 24" Snow Thrower (2000) Chute Rod Parts Diagram

24" Snow Thrower

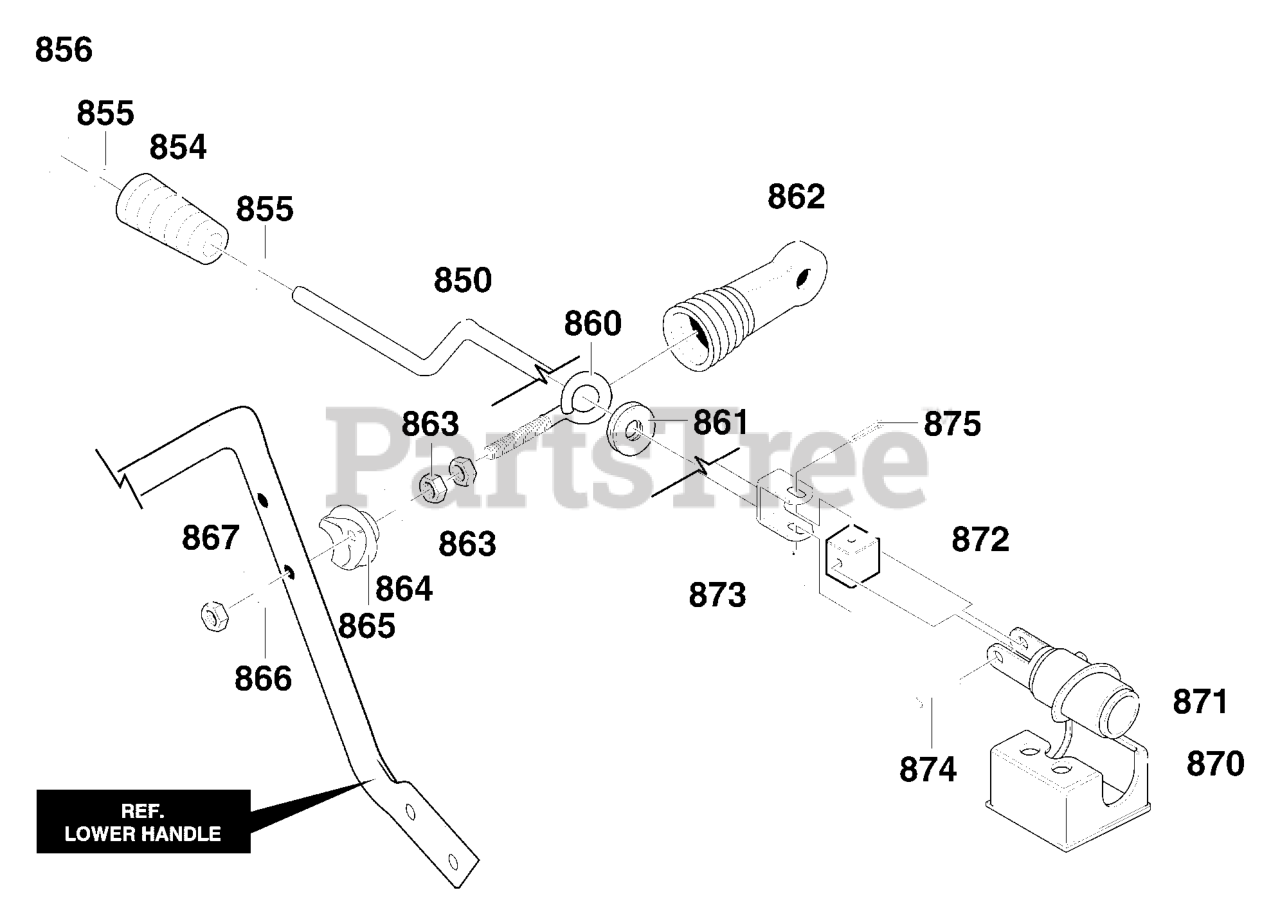

Chute Rod Parts Diagram

  • Title
850

Murray 585426MA

CRANK, ASSY CHUTE

$54.99

$

Usually ships in 2-12 days

0

854

Murray 307399MA

HANDLE, CRANK

$9.99

$

In Stock, only 1 left!

0

855

Murray 309312MA

FLATWASHER .39X.70X.05

$4.49

$

In Stock, only 3 left!

0

856

$3.99

$

Usually ships in 2-12 days

0

860

Murray 581618MA

EYE BOLT 3/8-16X6.00

$5.49

$

Usually ships in 2-12 days

0

861

Murray 148MA

GROMMET, EYE BOLT

$

$

Not available

862

Murray 308145MA

BOOT
(Superseded to 1501457MA)

$8.99

$

Usually ships in 2-12 days

0

863

Murray 71045

NUT, 3/8-16 HEXJAM

$

$

Not available

864

Murray 71072

FLATWASHER .406X.81X.066

$

$

Not available

865

Murray 309344MA

ADAPTER, BOOT TO HANDLE

$

$

Not available

866

Murray 71072

FLATWASHER .406X.81X.066

$

$

Not available

867

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

870

Murray 585195MA

BRACKET, WORM MTG

$

$

Not available

871

Murray 585196MA

WORM, GEAR CHUTE ROTATION

$11.99

$

In Stock, Qty 6

0

872

Murray 578063MA

BLOCK, UNIVERSAL PIVOT

$5.49

$

In Stock, only 2 left!

0

873

Murray 578309MA

CLEVIS PIN

$5.49

$

In Stock, Qty 6

0

874

Murray 578060MA

PIN, UNIVERSAL JOINT

$7.49

$

Usually ships in 2-12 days

0

875

Murray 579493MA

COTTER PIN

$4.49

$

In Stock, only 1 left!

0
