624505x85D - Murray 24" Snow Thrower (2002) Auger Housing Parts Diagram

24" Snow Thrower

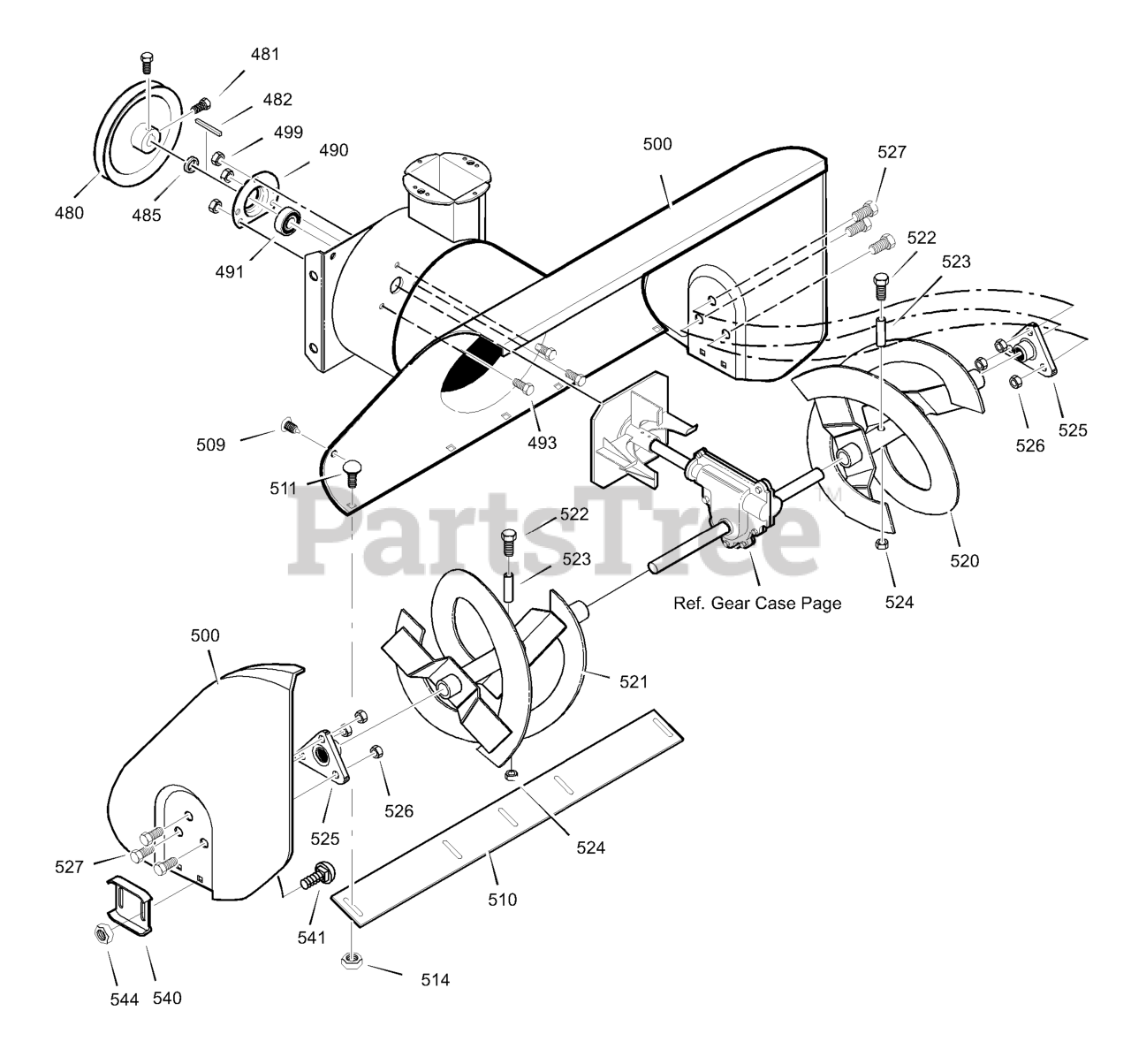

Auger Housing Parts Diagram

  • Title
480

Murray 762146MA

PULLEY, 4L 6.12 X 0.67

$70.99

$

Usually ships in 2-12 days

0

481

Murray 577400MA

SCREW, 5/16-18 x 5/8

$4.99

$

Usually ships in 2-12 days

0

482

Murray 2001022MA

KEY, Square, 3/16 X 3/4

$4.49

$

In Stock, Qty 11

0

485

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 043846

BEARING, BALL

$34.99

$

In Stock, only 1 left!

0

493

Murray 001X92MA

BOLT, HEX - 0.31-18X0.50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

SHIM-ENDPLAY

$

$

Not available

500

Murray 1501118E012

HOUSING, ASSY

$

$

Currently unavailable

502

$3.99

$

Usually ships in 2-12 days

0

509

UNKNOWN

$

$

Not available

510

Murray 581397E701MA

BLADE, SCRAPER 24"
(Superseded to 1740909BMYP)

$40.99

$

In Stock, only 2 left!

0

511

Murray 340714MA

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

514

Murray 780285MA

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

520

Murray 340518E701MA

AUGER, ASSEMBLY, LH

$91.99

$

Usually ships in 2-12 days

0

521

Murray 340523E701MA

AUGER, ASSEMBLY, RH

$

$

Not available

522

Murray 9524MA

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR2
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

523

Murray 3943MA

SPACER, Sleeve, 1/4 x 1/2
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

524

Murray 73826

NUT, 1/4-20 REGHEXCTRLK YZ

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517MA

BEARING, Flange

$5.99

$

In Stock, Qty 18

0

526

Murray 711862MA

NUT, 5/16-18

$4.99

$

In Stock, Qty 5

0

527

Murray 9357MA

SCREW, Tapping, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

540

Murray 301380E701

SKID, HEIGHT ADJUST

$8.99

$

In Stock, only 2 left!

0

541

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4, GR5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

544

Murray 710026

SHIM-ENDPLAY

$

$

Not available
