624505x85B - Murray 24" Snow Thrower (2000) Handle Assembly Parts Diagram

24" Snow Thrower

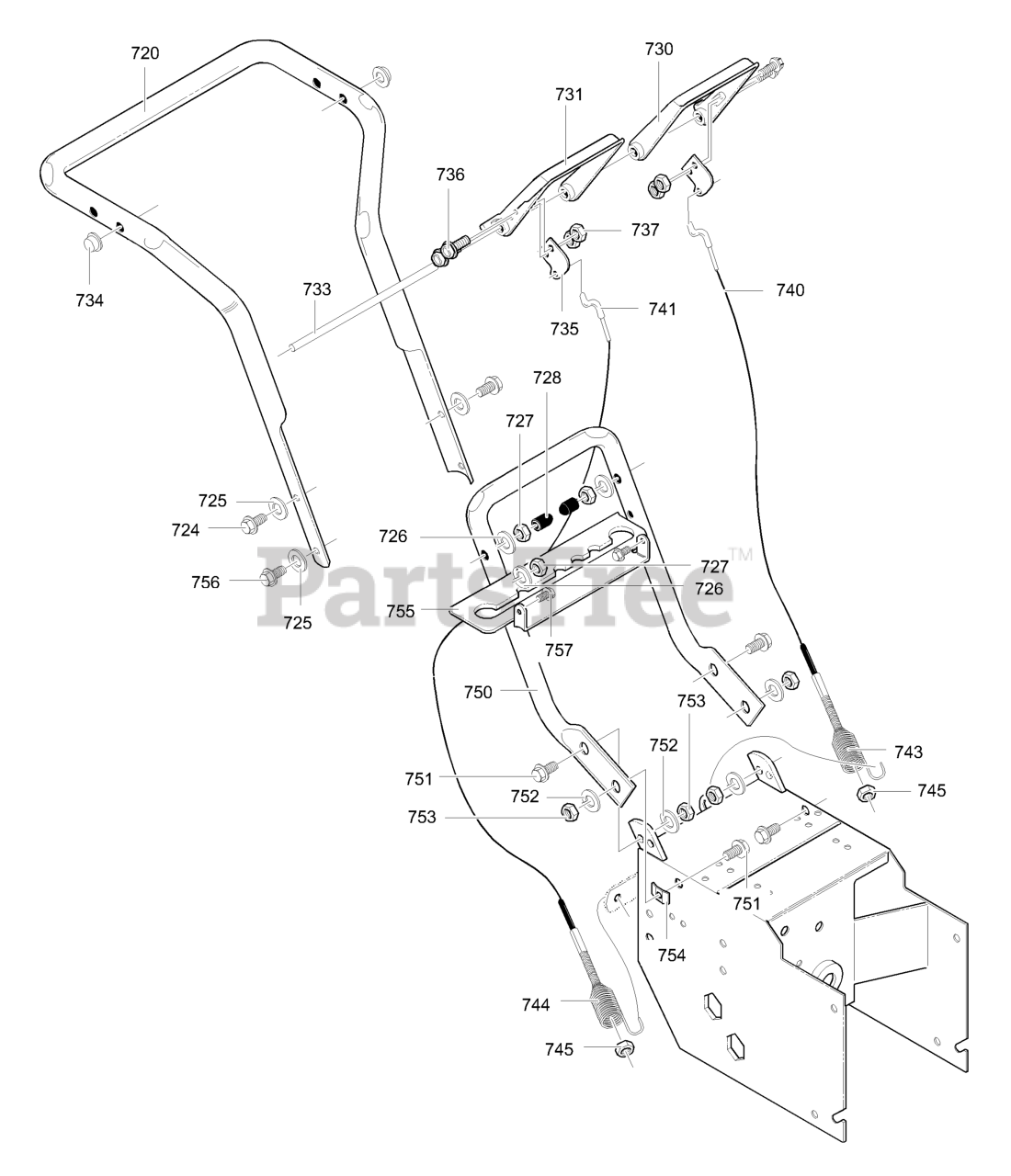

Handle Assembly Parts Diagram

  • Title

720

Murray 9552-853

HANDLE

$

$

Currently unavailable

724

Murray 11234MA

SCREW

$5.99

$

Usually ships in 2-12 days

0

725

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

726

Murray 071060

WASHER

$3.49

$

In Stock, Qty 20+

0

727

Murray 71037

NUT
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray 11261MA

PLASTIC-STOP

$4.49

$

Usually ships in 2-12 days

0

730

Murray 302557MA

CLUTCH, LEFT HANDLE CONTROL

$21.99

$

Usually ships in 2-12 days

0

731

Murray 302558MA

CLUTCH, RIGHT HANDLE CONTROL

$22.99

$

In Stock, only 1 left!

0

733

Murray 12621

ROD, PIVOT HANDLE

$

$

Not available

734

Murray 3535MA

PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

735

Murray 302620-853

PLATE, CABLE PIVOT

$

$

Currently unavailable

736

Murray 303108

SCREW

$2.99

$

Usually ships in 2-12 days

0

737

Murray 73826

NUT

$4.99

$

In Stock, Qty 20+

0

740

Murray 1579MA

CABLE, CLUTCH

$23.99

$

Usually ships in 2-12 days

0

741

Murray 761590MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, Qty 5

0

743

Murray 579869MA

SPRING, TENSION

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 13

0

745

Murray 780029

LOCKNUT

$

$

Not available

755

Murray 337407-853

BRACKET, GEAR SELECTOR

$

$

Not available

757

Murray 300303MA

SCREW

$4.49

$

In Stock, only 1 left!

0

750

Murray 339541-853

HANDLE, LOWER

$

$

Currently unavailable

751

Murray 313053

SCREW

$

$

Currently unavailable

752

Murray 071060

WASHER

$3.49

$

In Stock, Qty 20+

0

753

Murray 71037

NUT
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

754

UNKNOWN

$

$

Not available

756

UNKNOWN

$

$

Not available
