624505x79B - Briggs & Stratton 24" Snow Thrower (2000) (Spirit) Gear Case Assembly Parts Diagram

24" Snow Thrower

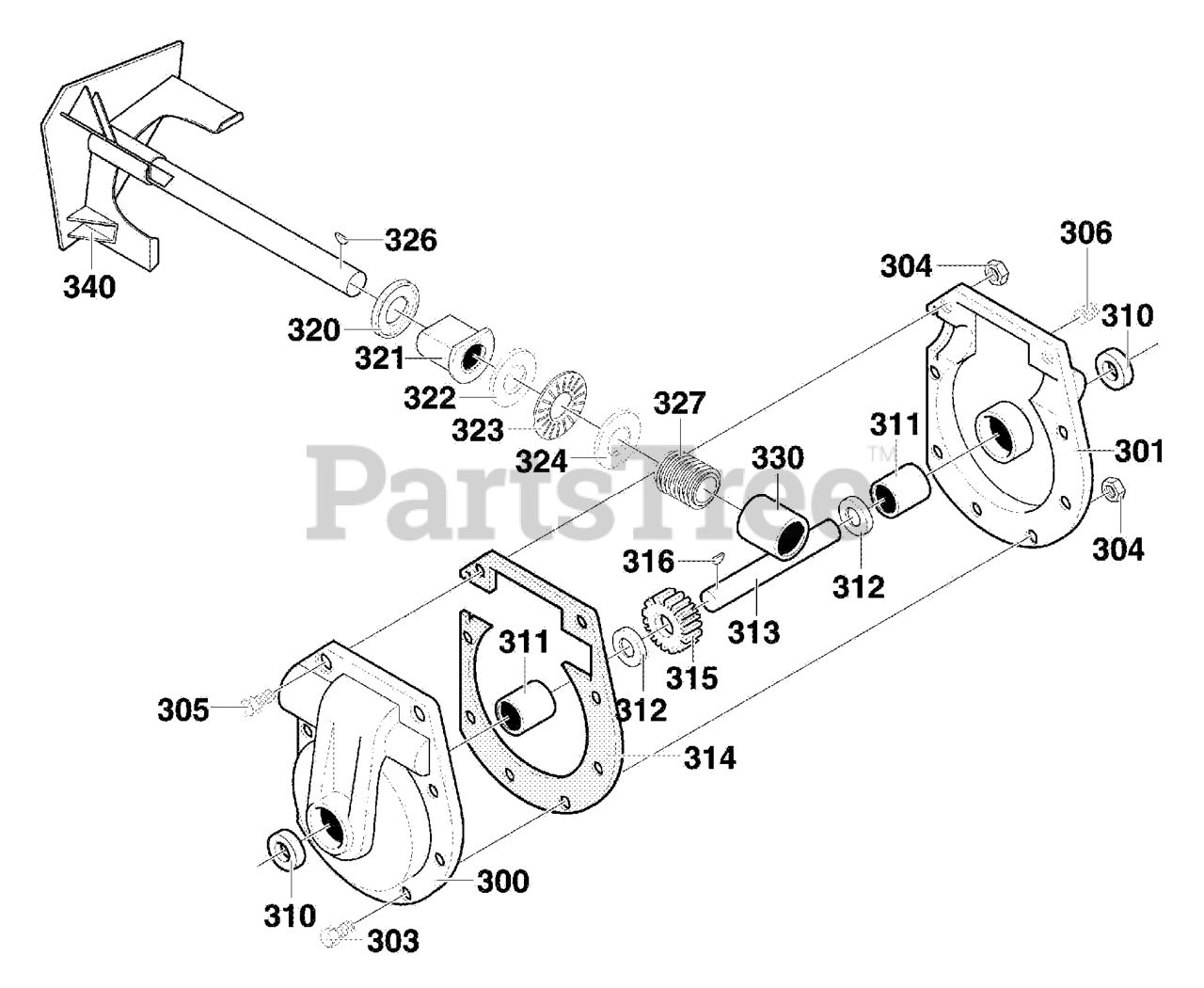

Gear Case Assembly Parts Diagram

  • Title

300

Murray 896MA

CASE, GEAR RH

$32.99

$

In Stock, only 4 left!

0

301

Murray 895MA

CASE, GEAR LH

$

$

Not available

303

Murray 910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

304

Murray 71100MA

NUT, 5/16-24 HEXWDFLLK
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

305

Murray 330434MA

SCREW, 5/16-24 x 1.50
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

306

Murray 53749MA

PLUG, PIPE
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

310

Murray 780151MA

SEAL, OIL

$10.99

$

In Stock, Qty 5

0

311

Murray 53743

BEARING, SLEEVE
(Superseded to 53743MA)

$9.99

$

Usually ships in 2-12 days

0

312

Murray 53748MA

WASHER, FLAT 1.00 x 1.54 x .09

$9.99

$

In Stock, only 2 left!

0

313

Murray 760530

SHAFT, AUGER

$

$

Not available

314

Murray 897MA

GASKET, GEAR BOX

$

$

Not available

315

Murray 53730MA

GEAR, WORM
(Superseded to 1752500YP)

$79.99

$

In Stock, only 4 left!

0

316

Murray 73905MA

KEY, WOODRUFF #91
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

320

Murray 53737MA

RING, QUAD

$4.99

$

In Stock, Qty 7

0

321

Murray 583126MA

BEARING, FLANGE

$13.99

$

In Stock, Qty 5

0

322

Murray 48275MA

WASHER, FLAT .752X1.24X.093

$6.49

$

In Stock, only 4 left!

0

323

Murray 313828

BEARING, ROLL

$

$

Currently unavailable

324

Murray 48275MA

WASHER, FLAT .752X1.24X.093

$6.49

$

In Stock, only 4 left!

0

326

Murray 50795MA

KEY, HI-PRO #606

$5.99

$

In Stock, only 1 left!

0

327

Murray 53732MA

GEAR, WORM

$49.99

$

Usually ships in 2-12 days

0

330

Murray 53731MA

BEARING

$5.49

$

In Stock, Qty 10

0

340

Murray 761692-853

IMPELLER

$

$

Currently unavailable
