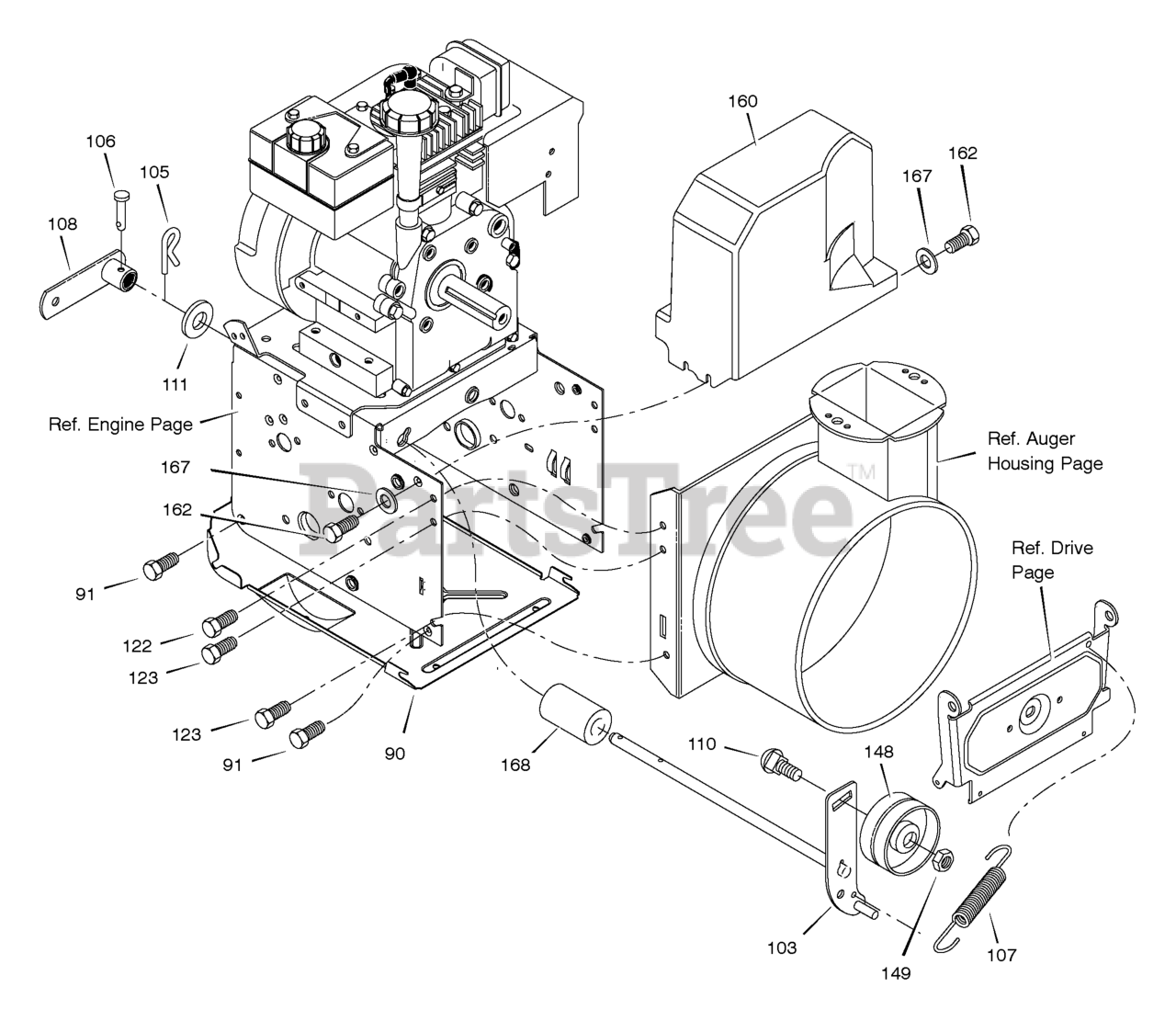

624505x54F - Murray 24" Snow Thrower (2004) Frame Parts Diagram

24" Snow Thrower

Frame Parts Diagram

  • Title

90

Murray 1501055E717

COVER, BOTTOM

$

$

Not available

91

Murray 310169MA

SCREW, 1/4-20X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

103

Murray 1501111 YZ

IDLER ASSEMBLY, AUGER

$

$

Not available

105

Murray 711682MA

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 761761MA

PIN, CLEVIS 3/16" DIA

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X160MA

SPRING, TENSION

$

$

Not available

108

Murray 761675 YZ

ASSY., SPRING ATTACH

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781MA

BOLT, 3/8-16X1.25 CARR.
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

122

Murray 25X020MA

SCREW, TAP 5/16-18 X 0.50

$4.99

$

In Stock, Qty 6

0

123

Murray 25X021MA

SCREW, TAP 5/16-18 X 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

148

Murray 50793MA

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 10

0

149

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

160

Murray 1501172

COVER, BELT

$

$

Not available

162

Murray 26X306MA

SCREW, TAP

$4.99

$

Usually ships in 2-12 days

0

166

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

168

Murray 1502041

SPACER, AUGER BRACKET
(Superseded to 1502041MA)

$5.99

$

Usually ships in 2-12 days

0
