624505x54B - Murray 24" Snow Thrower (2000) Wheels Parts Diagram

24" Snow Thrower

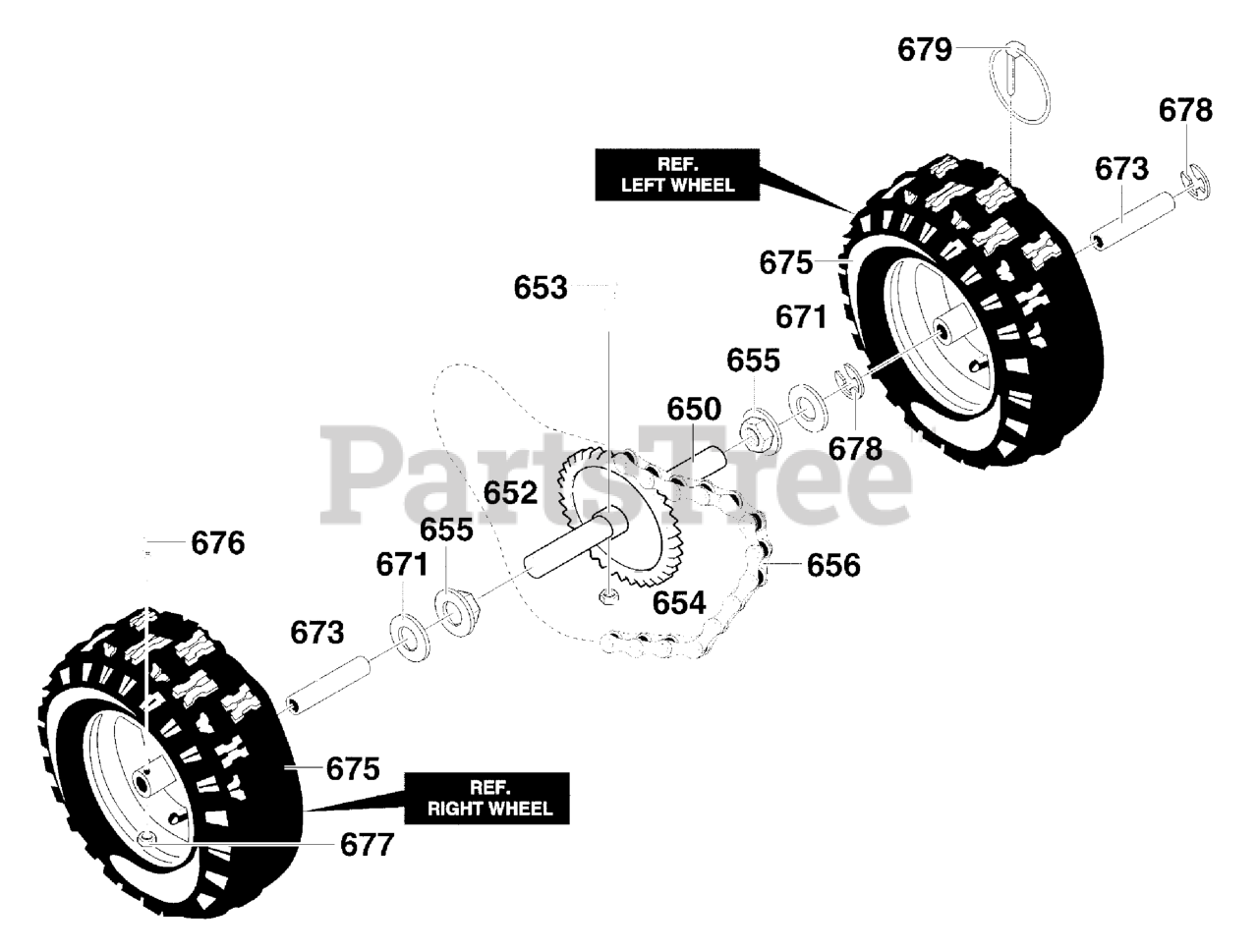

Wheels Parts Diagram

  • Title
650

Murray 580883MA

SHAFT, AXLE

$96.99

$

Usually ships in 2-12 days

0

652

Murray 583012MA

SPRKT & HUB

$56.99

$

Usually ships in 2-12 days

0

653

Murray 73839MA

SCREW, 1/4-20X2.25

$5.49

$

In Stock, only 4 left!

0

654

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

655

Murray 581730MA

BRNG, FL

$24.99

$

In Stock, only 2 left!

0

656

Murray 579867MA

CHAIN, ROLLER

$24.99

$

In Stock, Qty 8

0

671

Murray 712120MA

FLATWASHER .765X1.12X.06

$4.99

$

In Stock, Qty 20+

0

673

Murray 585591MA

BUSHING, WHEEL

$6.49

$

In Stock, Qty 10

0

675

Murray 580366

TIRE & RIM

$

$

Currently unavailable

676

Murray 577015MA

SCREW, 1/4-20X1.75 HH

$4.99

$

In Stock, Qty 5

0

677

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

679

Murray 73842MA

PIN, KLIK .25 X 1.38 DIA
(Superseded to 500016MA)

$15.99

$

In Stock, only 2 left!

0
