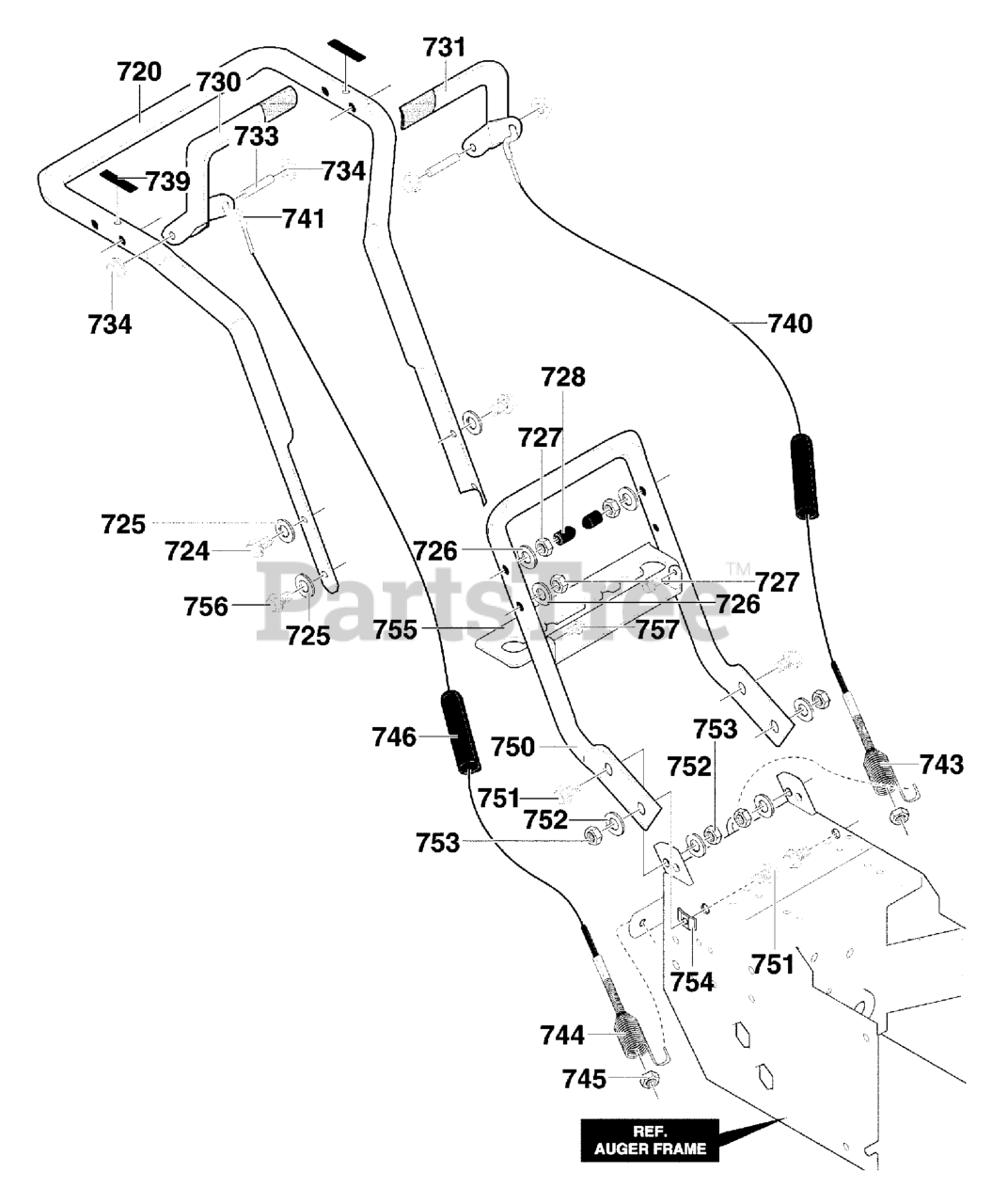

624505x54B - Murray 24" Snow Thrower (2000) Handle Components Parts Diagram

24" Snow Thrower

Handle Components Parts Diagram

  • Title

720

Murray 9552-821

HANDLE, UPPER

$

$

Currently unavailable

724

Murray 11234MA

SCREW, 5/16-18 x 2.75

$5.99

$

Usually ships in 2-12 days

0

725

Murray 120393

WASHER, FLAT .349X.69X.066

$

$

Not available

726

Murray 120638

WASHER, SPTLK .31X.58X.08

$

$

Not available

727

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray 11261MA

STOP, RED PLASTIC

$4.49

$

Usually ships in 2-12 days

0

730

Murray 301386-821

CLUTCH HANDLE RH

$

$

Currently unavailable

731

Murray 301387-821

CLUTCH HANDLE LH

$

$

Currently unavailable

733

Murray 4140MA

PIN, CLUTCH HANDLE

$5.49

$

Usually ships in 2-12 days

0

734

Murray 3535MA

NUT, PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1579MA

CABLE, CLUTCH 28.44L

$23.99

$

Usually ships in 2-12 days

0

741

Murray 761590MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, only 4 left!

0

743

Murray 579869MA

TENSION SPRING

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 780029

NUT, 1/4-20

$

$

Not available

746

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

Usually ships in 2-12 days

0

750

Murray 339541-821

HANDLE, LOWER

$14.99

$

Usually ships in 2-12 days

0

751

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

752

Murray 120638

WASHER, SPTLK

$

$

Not available

753

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

754

Murray 309436MA

PUSHNUT, 5/16 BOLT RETAINER

$3.99

$

Usually ships in 2-12 days

0

755

Murray 337407-821

BRKT, GEAR SELECTOR

$

$

Currently unavailable

756

Murray 180087

SCREW, 5/16-18 x 2.00

$

$

Not available

757

Murray 300303MA

SCREW, .25X.75X.51

$4.49

$

In Stock, only 1 left!

0
