624505x4D - Murray 24" Snow Thrower (2003) Discharge Chute Parts Diagram

24" Snow Thrower

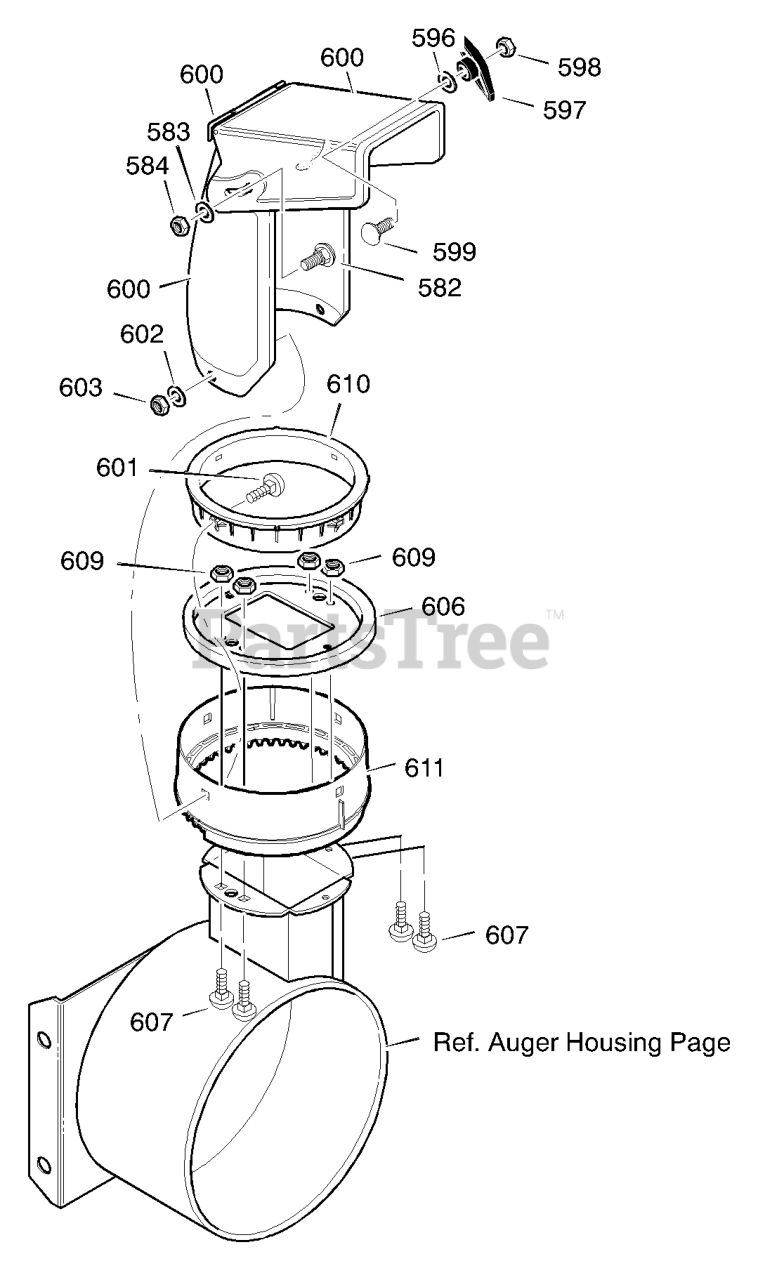

Discharge Chute Parts Diagram

  • Title
582

Murray 02X100

SCREW, 5/16-18 x 1.00

$

$

Not available

583

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

584

Murray 71038

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

596

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

597

Murray 57171

KNOB, T 3.00
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 7

0

598

Murray 15X144

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

Murray 02X100

BOLT, 5/16-18X1..00

$

$

Not available

600

Murray 762222MA

CHUTE ASSEMBLY

$51.99

$

In Stock, Qty 16

0

601

Murray 002X97MA

BOLT, 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

603

Murray 71038

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

606

Murray 585214 YZ

CHUTE COLLAR

$31.99

$

In Stock, only 3 left!

0

607

Murray 02X101MA

SCREW, 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

609

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282MA

RETAINER RING OUTER

$26.99

$

In Stock, only 2 left!

0
