624501x85A - Murray 24" Snow Thrower (2003) Handle Assembly Parts Diagram

24" Snow Thrower

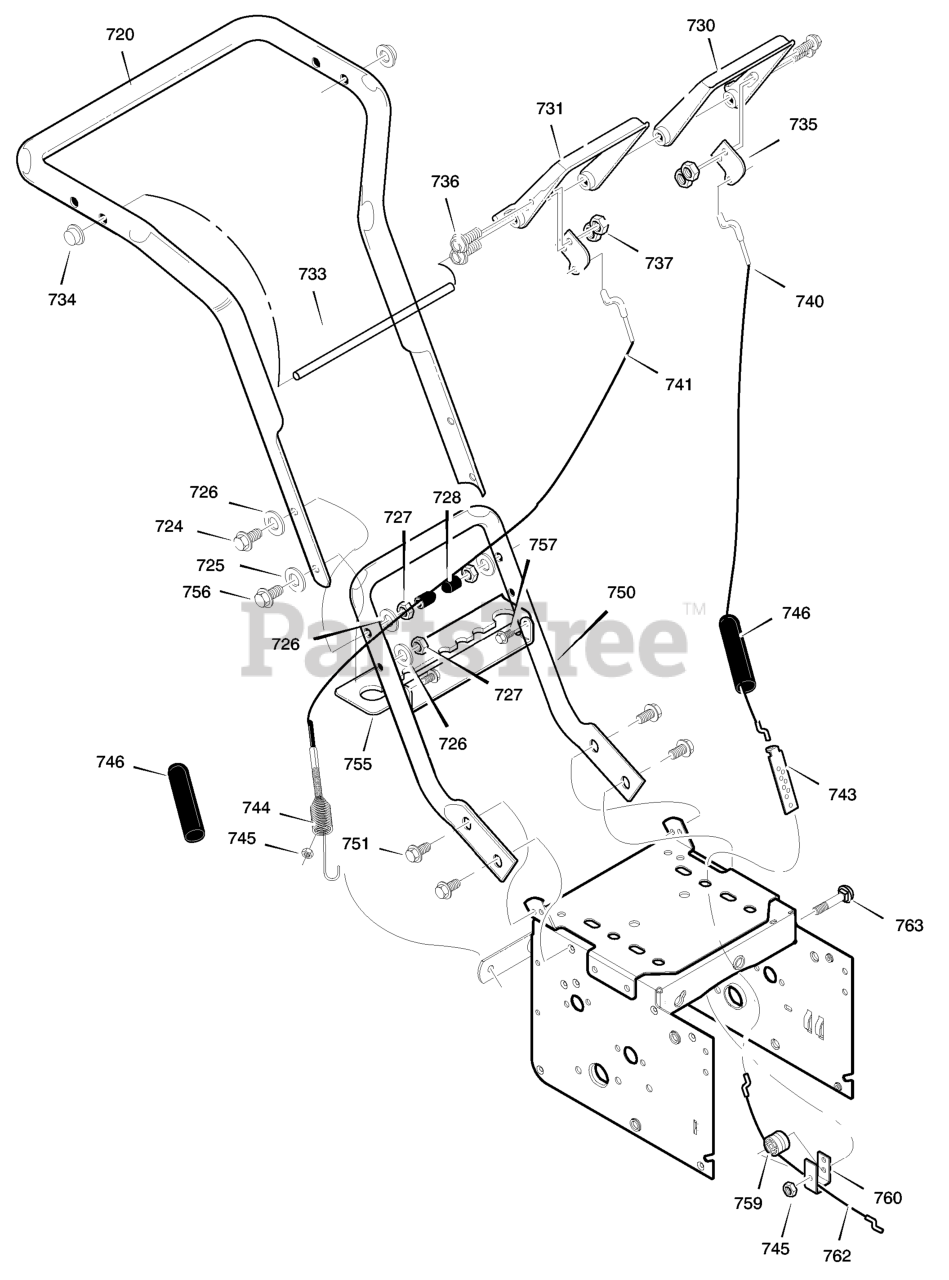

Handle Assembly Parts Diagram

  • Title
720

$114.99

$

Usually ships in 2-12 days

0

724

$5.99

$

Usually ships in 2-12 days

0

725

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

726

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

727

Murray 15X144

NUT
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray 11261MA

PLASTIC-STOP

$4.49

$

Usually ships in 2-12 days

0

730

Murray 301386E717

CLUTCH, LEFT HANDLE CONTROL

$

$

Currently unavailable

731

Murray 3011387E717

CLUTCH, RIGHT HANDLE CONTROL

$

$

Currently unavailable

733

Murray 12621

ROD, PIVOT HANDLE

$

$

Not available

734

Murray 3535MA

PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

735

Murray 302620E701

PLATE, CABLE PIVOT

$

$

Not available

736

$2.99

$

Usually ships in 2-12 days

0

737

$4.99

$

In Stock, Qty 20+

0

740

Murray 1501123MA

CABLE, CLUTCH

$12.99

$

In Stock, Qty 20+

0

741

Murray 761589MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, only 3 left!

0

743

Murray 313441MA

BRKT, CABLE ADJUST

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 13

0

745

Murray 15X145MA

LOCKNUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

746

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

In Stock, only 3 left!

0

750

Murray 339541E701MA

HANDLE, LOWER
(Superseded to 1740701ASM)

$140.99

$

Usually ships in 2-12 days

0

751

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

755

Murray 337407E701MA

BRACKET, GEAR SELECTOR

$23.99

$

Usually ships in 2-12 days

0

756

Murray 6751

SCREW, .31-18 x 2.00
(Superseded to 6751MA)

$

$

Not available

757

Murray 310169MA

SCREW, 1/4-20 X 0.63
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

759

Murray 579860MA

SPOOL-CABLE, AUGRT CLUTCH

$5.99

$

In Stock, Qty 10

0

760

Murray 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, LOWER DRIVE 12"

$8.49

$

In Stock, Qty 20+

0

763

Murray 001798

BOLT, HEX 1/4-20 X 1.50 YZ
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0
