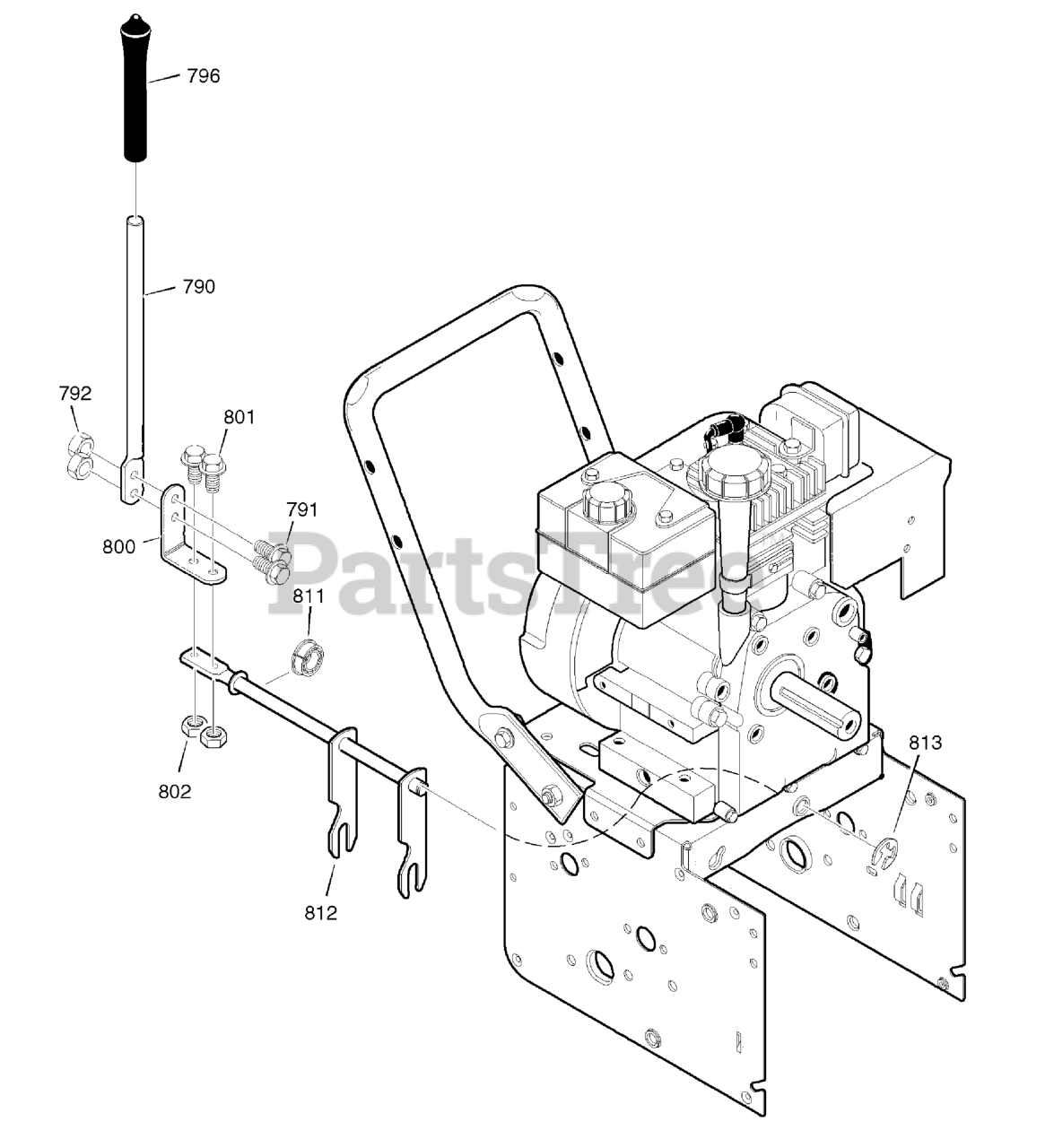

6240900x196A (1695425) - Murray 24" Snow Thrower (2007) Shift Yoke Parts Diagram

24" Snow Thrower

Shift Yoke Parts Diagram

  • Title
790

Murray 1740946HMA

ROD, SHIFT

$12.99

$

Usually ships in 2-12 days

0

791

Murray 302628MA

SCREW, 1/4-20 X 0.75

$4.49

$

In Stock, Qty 7

0

792

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

796

$5.49

$

Usually ships in 2-12 days

0

800

Murray 760564MA

LEVER, SPRING

$9.99

$

Usually ships in 2-12 days

0

801

Murray 302628MA

SCREW, 1/4-20 X 0.75

$4.49

$

In Stock, Qty 7

0

802

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

811

Murray 579944MA

BEARING, FLANGED

$15.99

$

Usually ships in 2-12 days

0

812

Murray 1501085YZMA

ROD ASSEMBLY, SPEED SELECT

$40.99

$

Usually ships in 2-12 days

0

813

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, Qty 11

0
