6240900x196A (1695425) - Murray 24" Snow Thrower (2007) Handle Assembly Parts Diagram

24" Snow Thrower

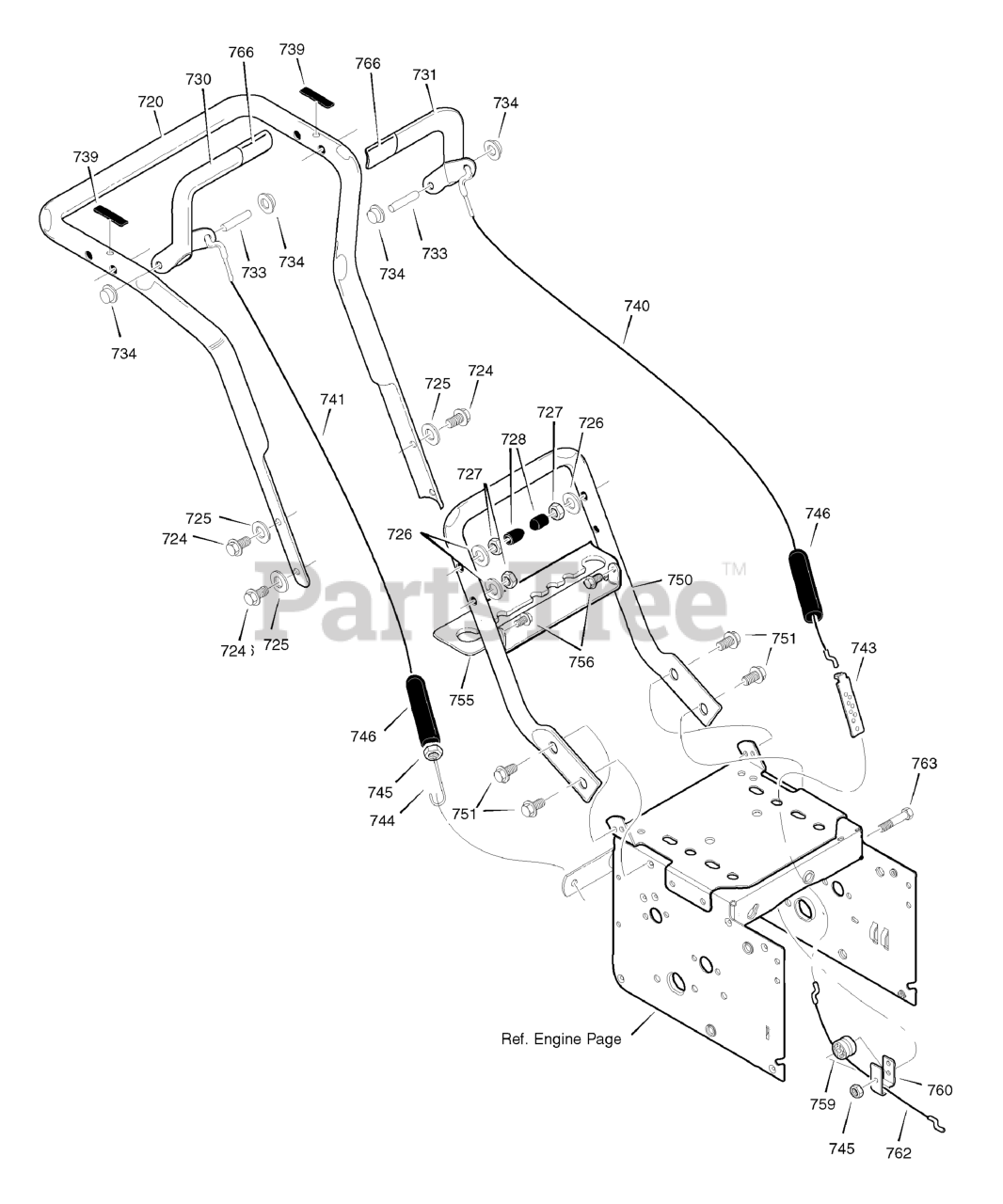

Handle Assembly Parts Diagram

  • Title
720

Murray 1740697HMA

HANDLE, UPPER

$131.99

$

Usually ships in 2-12 days

0

724

Murray 11234MA

SCREW, 5/16-18 X 2.75

$5.99

$

Usually ships in 2-12 days

0

725

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

726

Murray 71060MA

WASHER, SPTLK .31 X .58 X 0.08
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

727

Murray 15X144MA

NUT, 5/16-18 REGHEX

$3.99

$

In Stock, only 1 left!

0

728

Murray 11261MA

STOP, RED PLASTIC

$4.49

$

Usually ships in 2-12 days

0

730

Murray 1740690HMA

CLUTCH HANDLE, RIGHT

$34.99

$

Usually ships in 2-12 days

0

731

Murray 1740719HMA

CLUTCH HANDLE, LEFT

$34.99

$

Usually ships in 2-12 days

0

733

Murray 1501477MA

PIN, PIVOT CLUTCH

$

$

Not available

734

Murray 3535MA

NUT, PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1501123MA

CABLE, CLUTCH 28.44L

$12.99

$

In Stock, Qty 20+

0

741

Murray 761589MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, only 3 left!

0

743

Murray 313441MA

BRACKET, CABLE ADJUSTER

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 13

0

745

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

746

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

In Stock, only 3 left!

0

750

Murray 1740701HMA

HANDLE, LOWER

$95.99

$

Usually ships in 2-12 days

0

751

Murray 25X021MA

SCREW, TAP 5/16-18 X 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

755

Murray 1740698HMA

BRACKET, GEAR SELECTOR

$

$

Not available

756

Murray 310169MA

SCREW, 1/4-20 X 0.63
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

759

Murray 579860MA

SPOOL-CABLE, AUGER CLUTCH

$5.99

$

In Stock, Qty 10

0

760

Murray 1501059YZMA

BRACKET, CABLE SPOOL YZ

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, LOWER DRIVE 12"

$8.49

$

In Stock, Qty 20+

0

763

Murray 001798MA

BOLT, HEX 1/4-20 X 1.50

$4.49

$

In Stock, only 1 left!

0

766

$3.99

$

Usually ships in 2-12 days

0
