624 (UT-35018-A) - Homelite Snow Thrower Traction Drive Parts Diagram

Snow Thrower

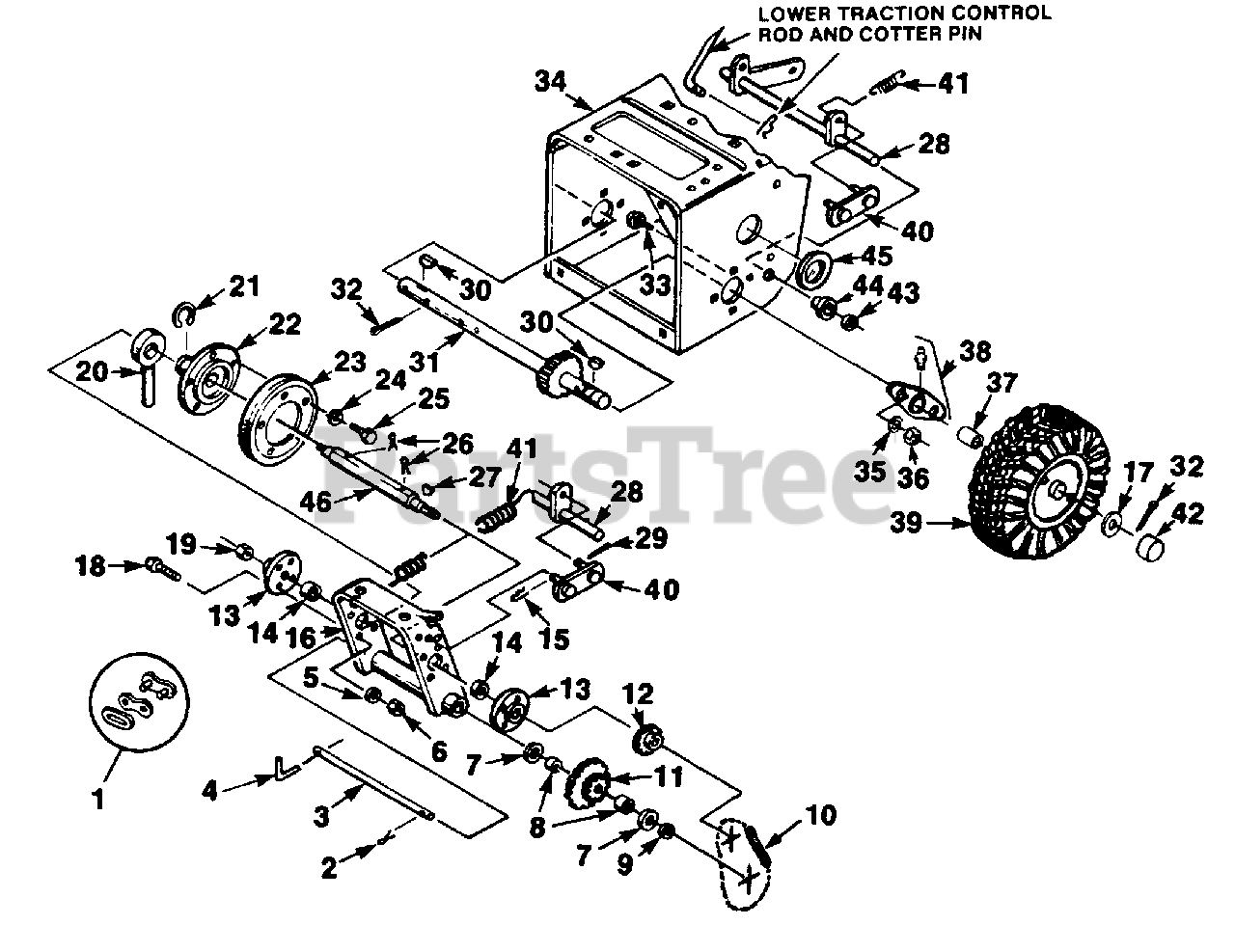

Traction Drive Parts Diagram

  • Title

1

Homelite JA470503

LINK- Connecting (chain)

$

$

Currently unavailable

2

Homelite JA460048

PIN- Cotter 3/16 x 1"

$4.49

$

Usually ships in 3-7 days

0

3

Homelite JA343474

SHAFT- Disc bracket pivot

$

$

Not available

4

Homelite JA326933

PIN- Anti-rotation

$

$

Currently unavailable

5

Homelite JA446130

WASHER- Lock med. 1/4"

$

$

Not available

6

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

7

Homelite JA343473

WASHER- Thrust

$

$

Currently unavailable

8

Homelite JA343470

BEARING- Roller
(Superseded to GP580265)

$

$

Not available

9

Homelite JA311710

WASHER

$

$

Currently unavailable

10

Homelite JA343469

CHAIN- Traction

$

$

Currently unavailable

11

Homelite JA159115

PINION AND SPROCKET ASSEMBLY

Note: (Incl. Ref #8)

$

$

Currently unavailable

12

Homelite JA352056

SPROCKET

$

$

Currently unavailable

13

Homelite JA375493

RETAINER- Bearing

$

$

Currently unavailable

14

Homelite JA311537

BEARING- DISC Shaft

$

$

Currently unavailable

15

Homelite JA460306

PIN- Cotter

$

$

Not available

16

Homelite JA990939

DISC BRACKET ASSEMBLY

$

$

Currently unavailable

17

Homelite JA343118

WASHER- Wheel mounting

$

$

Currently unavailable

18

Homelite JA400106

SCREW- Hex hd. cap 1/4-20 x 5/8"

$

$

Currently unavailable

19

Homelite JA444784

NUT- Hex jam C/lock 1/2-13

$

$

Currently unavailable

20

Homelite JA181204

SLEEVE & BEARING ASSY.

$

$

Currently unavailable

21

Homelite JA458017

RING- Tru-Arc retaining

$

$

Currently unavailable

22

Homelite JA239003

HUB- Drive disc

$

$

Currently unavailable

23

Homelite JA990152

WHEEL- Drive

$

$

Not available

24

Homelite JA446134

WASHER- Lock med. 5/16"
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

25

Homelite JA400180

SCREW- Hex hd. cap 5/16-18 x 1/2"

$

$

Currently unavailable

26

Homelite JA460028

PIN- Cotter 1/8 x 1"

$

$

Currently unavailable

27

Homelite JA463003

KEY- Drive sprocket woodruff 1/8 x 1/2"

$

$

Not available

28

Homelite JA991416

PIVOT ASSEMBLY

$123.99

$

Usually ships in 3-7 days

0

29

Homelite JA460014

PIN- Cotter 3/32 x 3/4"

$

$

Not available

30

Homelite JA463113

KEY- Morton 3/16 x 3/4"

$

$

Not available

31

Homelite JA181843

AXLE & GEAR ASSEMBLY

$

$

Currently unavailable

32

Homelite JA460030

PIN- Cotter 1/8 x 1 1/4"

$

$

Not available

33

Homelite JA440078

BOLT- Shnk carr. 5/16-18 x 3/4"

$4.99

$

Usually ships in 3-7 days

0

34

Homelite JA991404

FRAME ASSEMBLY

$

$

Currently unavailable

35

Homelite JA446136

WASHER- Lock hvy. 5/16"
(Superseded to UP03791)

$

$

Not available

36

Homelite JA443106

NUT- Hex 5/16-18
(Superseded to 81018)

$

$

Not available

37

Homelite JA375861

SPACER

$

$

Currently unavailable

38

Homelite JA353613

BEARING- Axle

$

$

Currently unavailable

39

Homelite JA991736

WHEEL & TIRE (L.H.)

$

$

Not available

Homelite JA991737

WHEEL & TIRE (R.H.)

$

$

Currently unavailable

40

Homelite JA159193

CLUTCH CONTROL LINK ASSEMBLY

$

$

Currently unavailable

41

Homelite JA375025

SPRING- Clutch return

$

$

Currently unavailable

42

Homelite JA343166

CAP- Hub

$

$

Currently unavailable

43

Homelite JA445257

RETAINER TINNERMAN Pivot Shaft

$

$

Currently unavailable

44

Homelite JA350521

BUSHING Pivot Shaft

$

$

Currently unavailable

45

Homelite JA345786

PLUG- Tractor frame

$

$

Currently unavailable

46

Homelite JA358047

SHAFT- Driving disc

$

$

Currently unavailable
