624 (UT-35018-A) - Homelite Snow Thrower Auger Parts Diagram

Snow Thrower

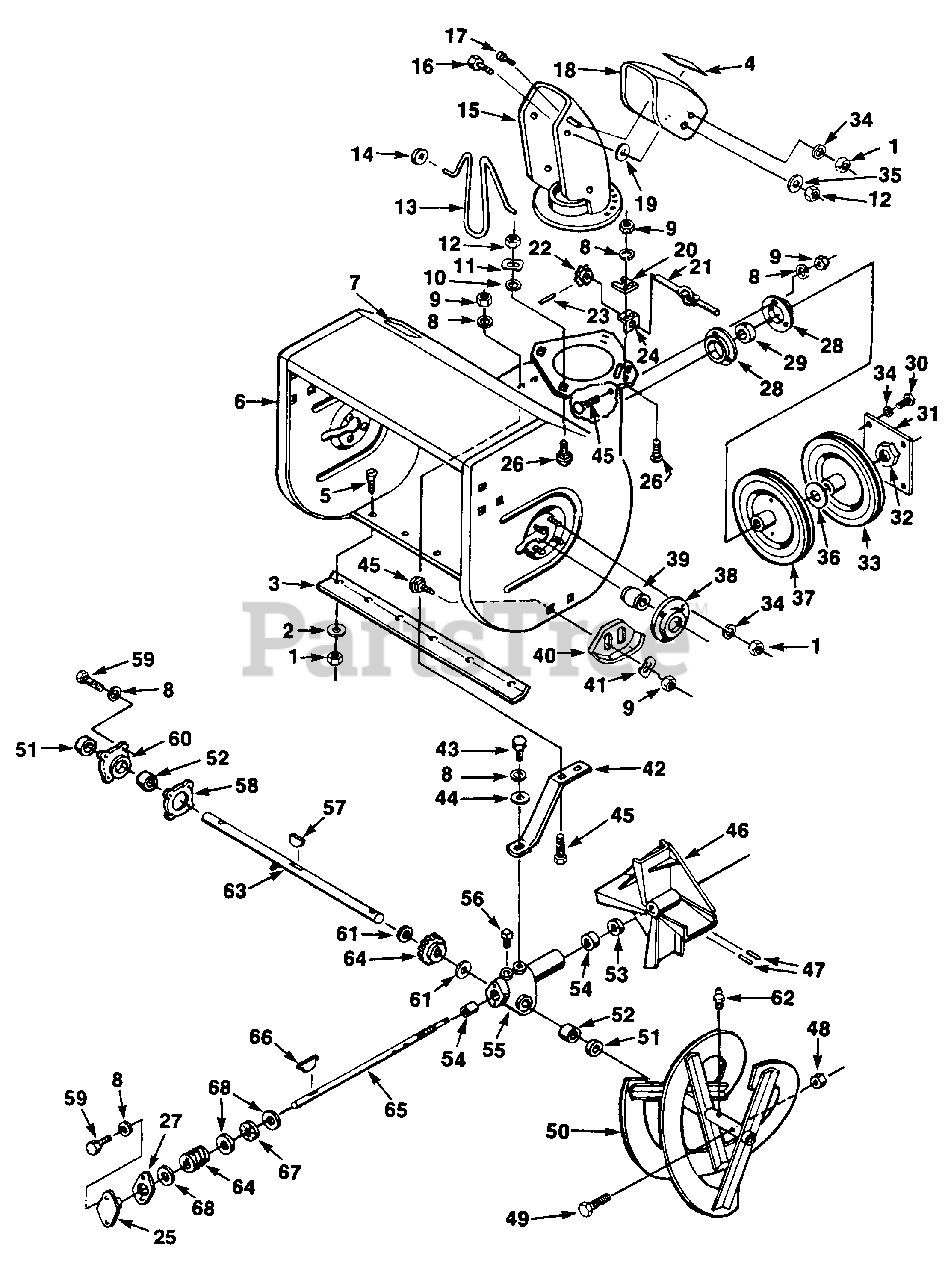

Auger Parts Diagram

  • Title

1

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

2

Homelite JA454031

WASHER- Hubbard

$

$

Currently unavailable

3

Homelite JA991378

BLADE- Scraper (624)

$

$

Not available

4

Homelite JA991342

DECAL- Impeller danger

$

$

Currently unavailable

5

Homelite JA402580

SCREW- Slotted flat hd. 1/4-20 x 5/8"

$

$

Currently unavailable

6

Homelite JA991315

IMPELLER COLLECTOR HOUSING ASSEMBLY

$

$

Currently unavailable

7

Homelite JA991339

DECAL- Auger danger

$7.49

$

Usually ships in 3-7 days

0

8

Homelite JA446134

WASHER- Lock med. 5/16"
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

9

Homelite JA443106

NUT- hex 5/16-18
(Superseded to 81018)

$

$

Not available

10

Homelite JA446136

WASHER- Lock hvy. 5/16"
(Superseded to UP03791)

$

$

Not available

11

Homelite JA454038

WASHER- Shakeproof chute retaining

$

$

Currently unavailable

12

Homelite JA444718

NUT- Hex c/lock 5/16-18

$

$

Not available

13

Homelite JA335676

GUARD- Chute

$

$

Currently unavailable

14

Homelite JA445272

NUT- Tinnerman shield retaining

$4.99

$

Usually ships in 3-7 days

0

15

Homelite JA991336

DISCHARGE CHUTE ASSEMBLY

$

$

Currently unavailable

16

Homelite JA401050

SCREW- Hex hd. 5/16-18 x 5/8"

$

$

Currently unavailable

17

Homelite JA402934

SCREW- Fill. hd. 1/4-20 x 1/2" deflector handle mtg.

$

$

Currently unavailable

18

Homelite JA991327

DEFLECTOR- Chute

$

$

Currently unavailable

19

Homelite JA341717

WASHER- Nylon

$5.49

$

Usually ships in 3-7 days

0

20

Homelite JA991383

CLAMP- Chute retaining

$

$

Currently unavailable

21

Homelite JA375873

ROD- Front chute adj.

$10.99

$

Usually ships in 3-7 days

0

22

Homelite JA352073

SPROCKET- Chute adjusting

$

$

Currently unavailable

23

Homelite JA461359

PIN- Roll 1/8 x 3/4"

$

$

Not available

24

Homelite JA991385

BRACKET- Chute control

$

$

Currently unavailable

25

Homelite JA991424

COVER- Gear housing end

$

$

Currently unavailable

26

Homelite JA440076

BOLT- Carr. 5/16-18 x 5/8"

$

$

Currently unavailable

27

Homelite JA341621

GASKET- End cover

$

$

Not available

28

Homelite JA341582

FLANGE

$

$

Currently unavailable

29

Homelite JA341661

BEARING- Impeller shaft

$

$

Currently unavailable

30

Homelite JA400104

SCREW- Hex hd. 1/4-20 x 1/2"
(Superseded to UP03379)

$

$

Not available

31

Homelite JA358343

PLATE- Traction face

$

$

Currently unavailable

32

Homelite JA444784

NUT- Hex c/lock 1/2-13

$

$

Currently unavailable

33

Homelite JA161576

TRACTION PULLEY & BEARING ASSEMBLY

$

$

Currently unavailable

34

Homelite JA446130

WASHER- Lock hvy. 1/4"

$

$

Not available

35

Homelite JA454024

WASHER- Cupped spring

$

$

Not available

36

Homelite JA358346

WASHER- Thrust

$

$

Currently unavailable

37

Homelite JA390047

PULLEY- Driven

$

$

Currently unavailable

38

Homelite JA352042

RETAINER- Collector bushing

$

$

Currently unavailable

39

Homelite JA352041

BUSHING- Collector

$

$

Currently unavailable

40

Homelite JA991381

SKID- Collector

$

$

Currently unavailable

41

Homelite JA454027

WASHER- Shakeproof 5/16"

$

$

Not available

42

Homelite JA991417

SUPPORT- Gear box

$

$

Currently unavailable

43

Homelite JA400186

SCREW- Hex hd. cap 5/16-18 x 7/8"
(Superseded to UP07177)

$

$

Not available

44

Homelite JA453009

WASHER- SAE flat 5/16"
(Superseded to UP07173)

$

$

Not available

45

Homelite JA440078

BOLT- Shnk. carr. 5/16-18 x 3/4"

$4.99

$

Usually ships in 3-7 days

0

46

Homelite JA992877

IMPELLER ASSEMBLY

$

$

Currently unavailable

47

Homelite JA461408

PIN- Roll 1/4 x 1 1/2"

$

$

Not available

48

Homelite JA444708

NUT- Hex GRIPCO C/lock 1/4-20

$

$

Currently unavailable

49

Homelite JA342449

BOLT- Collector shear

$

$

Not available

50

Homelite JA991419

COLLECTOR ASSEMBLY R.H. (624)

$

$

Currently unavailable

Homelite JA991421

COLLECTOR ASSEMBLY L.H. (624)

$

$

Currently unavailable

51

Homelite JA341581

SEAL- Collector shaft

$

$

Not available

52

Homelite JA341580

BEARING- Collector shaft

$

$

Not available

53

Homelite JA321294

SEAL- Impeller shaft

$

$

Currently unavailable

54

Homelite JA321293

BEARING- Impeller shaft

$

$

Currently unavailable

55

Homelite JA991422

GEAR HOUSING ASSEMBLY

Note: (Incl. #51 & #52)

$

$

Currently unavailable

56

Homelite JA472203

PLUG- NPT sq. hd. pipe 1/4"

$

$

Currently unavailable

57

Homelite JA463021

KEY- Woodruff #A 1/4 x 7/8"

$

$

Currently unavailable

58

Homelite JA341610

GASKET- Gear housing cover

$

$

Not available

59

Homelite JA400184

SCREW- Hex hd. cap 5/16-18 x 3/4"
(Superseded to UP03381)

$

$

Not available

60

Homelite JA991423

GEAR HOUSING COVER

Note: (incl #51 & #52)

$

$

Currently unavailable

61

Homelite JA341609

WASHER- Thrust

$

$

Not available

62

Homelite JA471225

GREASE FITTING

$

$

Currently unavailable

63

Homelite JA991325

SHAFT COLLECTOR

$

$

Currently unavailable

64

Homelite JA501323

SET- Worm & Worm Wheel

$

$

Currently unavailable

65

Homelite JA336299

SHAFT- Impeller

$

$

Currently unavailable

66

Homelite JA463113

KEY- Morton HP-606 3/16 x 3/4"

$

$

Not available

67

Homelite JA341584

BEARING- Thrust

$

$

Currently unavailable

68

Homelite JA341583

RACE- Thrust bearing

$

$

Currently unavailable
