624 (190-624-000) - Yard-Man Snow Blower Attachment Frame Parts Diagram

Snow Blower Attachment

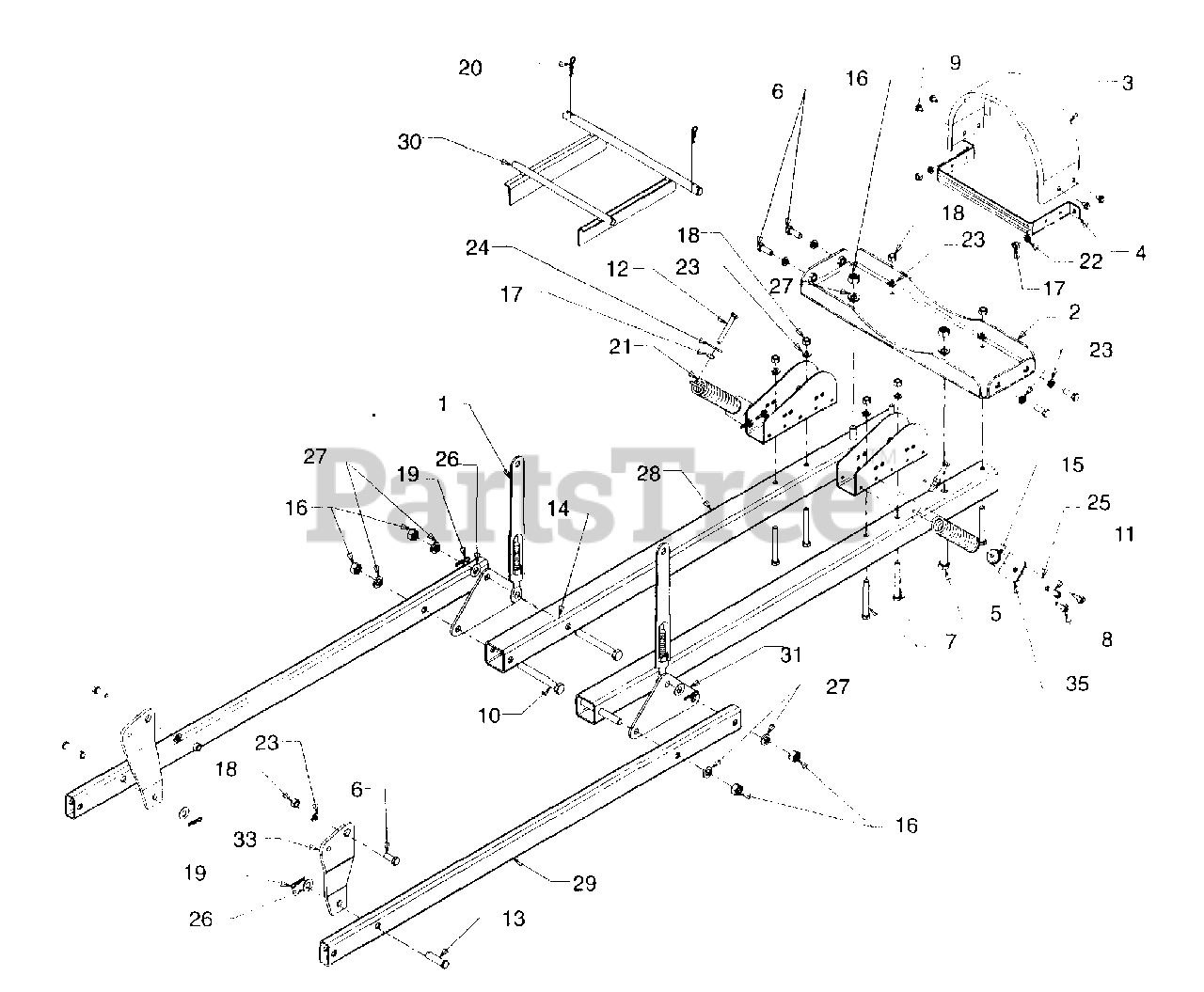

Frame Parts Diagram

  • Title

1

Cub Cadet 17304

LIFT ASM:DECK LINK:FRONT

$40.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-0110

BRKT ASM:HSG

Variations

Cub Cadet 684-0110-0637

BRACKET ASSEMBLY. (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 703-2869

CVR:BELT

Variations

Cub Cadet 703-2869-0498

BELT COVER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2869-0637

BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 703-2870

BRKT:CVR:BELT

Variations

Cub Cadet 703-2870-0498

BELT COVER BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2870-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-0182

HHCS:1/2-13:3.00:GR5:STD
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

Cub Cadet 710-0409

HHCS:5/16-24:1.75:GR5:STD

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0514

HHCS:3/8-16:1.00:GR5:STD

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0521

HHCS:3/8-16:3.00:GR8:STD

$5.49

$

In Stock, Qty 11

0

8

Cub Cadet 710-0601

HEX WASH SF TAPP SCR 5/16-18
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0653

SCR: TT:1/4-20:.375:HXINDWSH

$4.49

$

In Stock, Qty 7

0

10

Cub Cadet 710-0786

HHCS:1/2-13:4.00:GR5:STD

$16.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0959

HHCS:5/16-18:1.50:GR5:SPEC

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3073

HHCS:5/16-18:2.50:GR5:STD
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 711-0231

PIN:CLV: .50 DIA X 1.59 LG
(Superseded to 911-0231)

$6.49

$

In Stock, only 2 left!

0

14

Cub Cadet 711-0332

PIN:CLV: .50 DIA X .78 LG
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

15

Cub Cadet 711-0509

INS:SPRG

$60.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-0206

NUT:1/2-13:GRA:HX

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3010

NUT:5/16-18:GRB:HX

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3017

NUT:3/8-16:GRB:HX

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0101

PIN:COT:INT .08 X 1.42

$4.99

$

In Stock, only 1 left!

0

20

Cub Cadet 714-0147

PIN:COT: .125 X 1.75 INTERNAL

$4.99

$

In Stock, Qty 6

0

21

Cub Cadet 732-0813

SPR:EXTN:1.25 OD X 7.25

$

$

Not available

22

Cub Cadet 736-0119

WASH:LOCK:5/16:REGULAR DUTY
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0169

WASH:LOCK:3/8:REGULAR DUTY

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0231

WASH:FL: .344 ID X 1.125 OD

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0242

WASH:BELVL:.340 ID X .872 OD

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0272

WASH:FL:.510 X 1.00 X .060

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0921

WASH:LOCK:1/2:REGULAR DUTY

$4.49

$

In Stock, Qty 6

0

28

Cub Cadet 750-1057

TUBE:LIFT:2.0 X 2.0 X 42.0

$

$

Not available

29

Cub Cadet 750-1059

TUBE:LIFT:1.0 X 2.0 X 43.0

Variations

Cub Cadet 750-1059-0637

TUBING: SQUARE - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 784-5148A

GUIDE BRACKET ASSY

$

$

Not available

31

Cub Cadet 784-5199

BRKT:LIFT PLATE
(Superseded to 984-5199)

$

$

Not available

?32

Cub Cadet 784-5203

BRKT:HNGR:RR LH
(Superseded to 784-5203-0637)

$

$

Not available

33

Cub Cadet 784-5204

BRKT:HNGR:RR RH

Variations

Cub Cadet 784-5204-0637

BRACKET-HANGER (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

?34

Cub Cadet 784-5211B

BRKT:IDLR:SUPT

$

$

Not available

35

Cub Cadet 784-5686

BRKT:SPR:MT

$

$

Not available
