622594x85NA - Murray 22" Snow Thrower (2004) Handle Assembly Parts Diagram

22" Snow Thrower

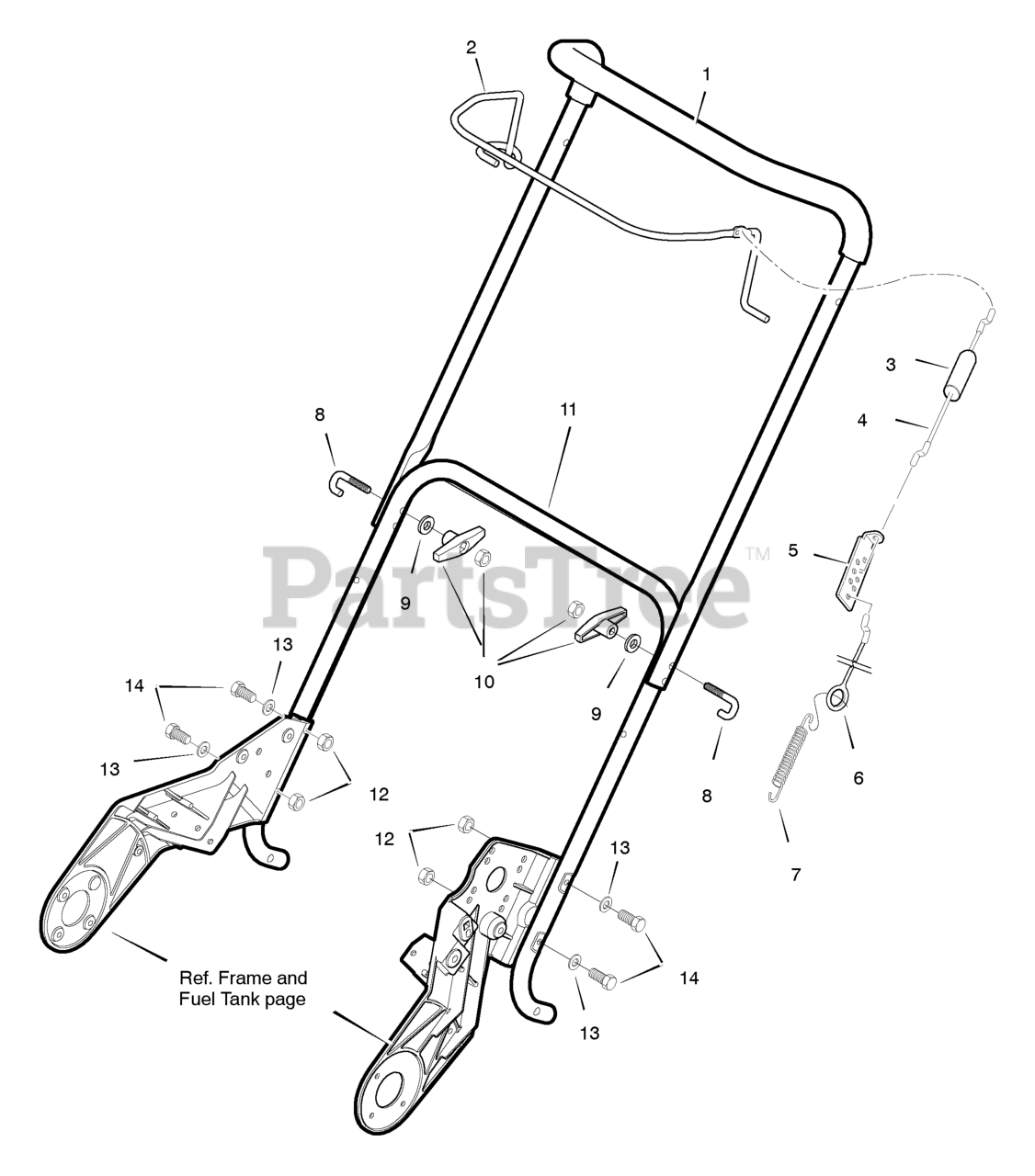

Handle Assembly Parts Diagram

  • Title
1

Murray 1502001

Handle & Grip Assembly
(Superseded to 1502001MA)

$151.99

$

Usually ships in 2-12 days

0

2

Murray 1501861E701MA

Control, Bail

$68.99

$

Usually ships in 2-12 days

0

3

Murray 308146MA

Boot, Clutch Spring

$6.49

$

In Stock, only 2 left!

0

4

Murray 1502042MA

Cable, Upper Control

$14.99

$

Usually ships in 2-12 days

0

5

Murray 313441MA

Bracket, Control Adjust

$

$

Not available

6

Murray 313448MA

Cable, Lower Control

$10.99

$

Usually ships in 2-12 days

0

7

$4.99

$

In Stock, only 1 left!

0

8

$6.49

$

Usually ships in 2-12 days

0

9

$7.49

$

Usually ships in 2-12 days

0

10

Murray 1501260MA

Knob, Wing

$7.99

$

In Stock, Qty 8

0

11

Murray 1501860E701MA

Handle, Lower

$

$

Not available

12

$4.99

$

In Stock, Qty 20+

0

13

Murray 71067

Washer
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

14

Murray 313674MA

Screw, 1/4-20 x1.25

$3.99

$

Usually ships in 2-12 days

0
