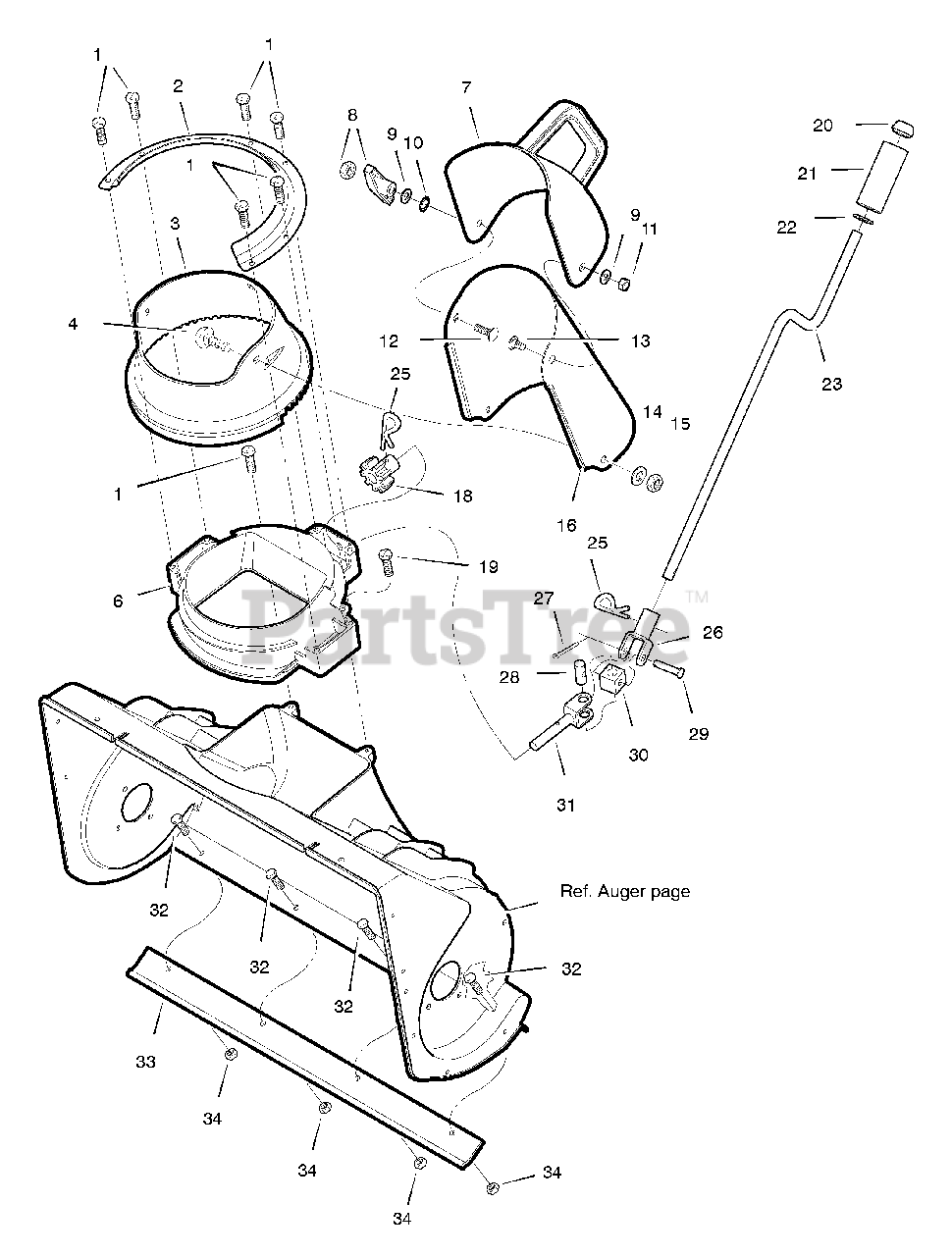

622591x85NB - Murray 22" Snow Thrower (2005) Chute System Parts Diagram

22" Snow Thrower

Chute System Parts Diagram

  • Title

1

Murray 313685MA

Screw 1/4-14

$5.49

$

Usually ships in 2-12 days

0

2

Murray 1502131

Retainer, Chute Ring
(Superseded to 1502131MA)

$

$

Not available

3

Murray 1502132

Ring, Chute
(Superseded to 1502132MA)

$40.99

$

Usually ships in 2-12 days

0

4

Murray 340720MA

Bolt, Carriage 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

6

Murray 1501848MA

Neck, Chute

$37.99

$

Usually ships in 2-12 days

0

7

Murray 1501918MA

Chute, 22" Upper

$30.99

$

Usually ships in 2-12 days

0

8

Murray 1501260MA

T-Knob

$7.99

$

In Stock, Qty 8

0

9

Murray 71071

Washer
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Murray 019X35MA

Lockwasher, Shakeproof

$4.99

$

In Stock, Qty 11

0

11

Murray 71391

Locknut, Hex 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

12

Murray 002X97MA

Bolt, Carriage 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

13

Murray 1501910MA

Bolt, Upper Chute

$3.99

$

Usually ships in 2-12 days

0

14

Murray 71072

Washer

$

$

Not available

15

Murray 71038

Nut
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Murray 1502012

Chute, Lower

$80.99

$

Usually ships in 2-12 days

0

18

Murray 1501067MA

Gear, 9-Tooth

$17.99

$

In Stock, only 2 left!

0

19

Murray 313658

Screw, 1/4-14 x .75

$5.49

$

Usually ships in 2-12 days

0

20

Murray 331532MA

Nut, Push

$4.99

$

Usually ships in 2-12 days

0

21

Murray 57082MA

Knob, Sleeve

$7.99

$

Usually ships in 2-12 days

0

22

Murray 71072

Washer

$

$

Not available

23

Murray 1501116

Crank, Chute Rotation

$34.99

$

Usually ships in 2-12 days

0

25

Murray 1501293MA

Pin, Hair

$4.99

$

Usually ships in 2-12 days

0

26

Murray 1501075

Yoke Assembly, Adapter

$10.99

$

In Stock, only 1 left!

0

27

Murray 579493MA

Pin, Cotter

$4.49

$

In Stock, only 1 left!

0

28

Murray 578060MA

Pin, Universal Joint

$7.49

$

Usually ships in 2-12 days

0

29

Murray 578309MA

Pin, Clevis

$5.49

$

In Stock, Qty 8

0

30

Murray 578063MA

Housing, Universal

$5.49

$

In Stock, only 4 left!

0

31

Murray 1501873MA

Rod, Lower Crank

$6.99

$

Usually ships in 2-12 days

0

32

Murray 302628MA

Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 7

0

33

Murray 1501863MA

Blade, Scraper

$24.99

$

In Stock, only 1 left!

0

34

Murray 15X143MA

Locknut, Hex 1/4-20

$4.99

$

In Stock, Qty 13

0
