622591x85NA - Murray 22" Snow Thrower (2004) Body Covering Parts Diagram

22" Snow Thrower

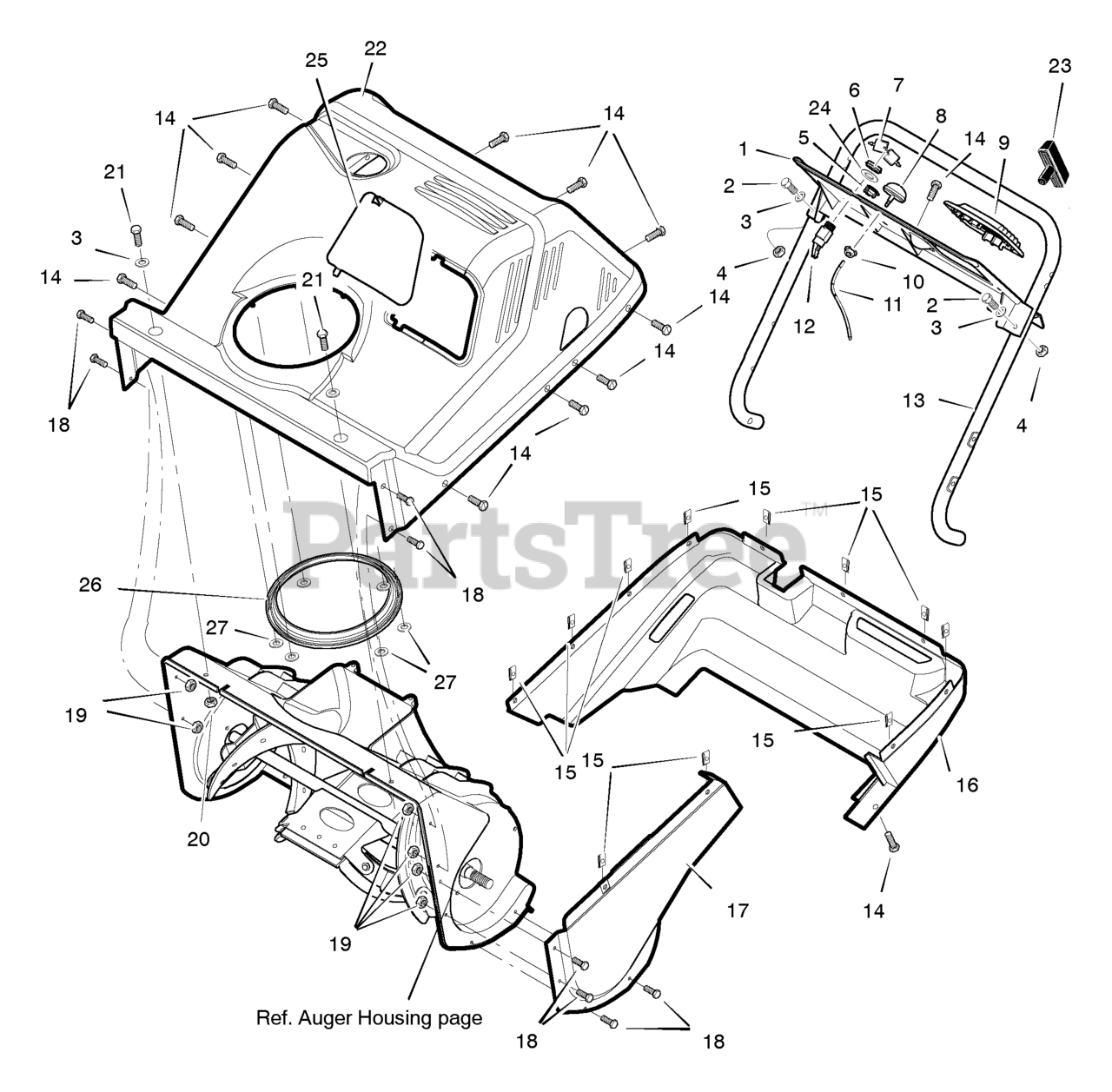

Body Covering Parts Diagram

  • Title
1

Murray 1501862MA

Panel, Control

$56.99

$

Usually ships in 2-12 days

0

2

Murray 313674MA

Screw 1/4-20 x 1.25

$3.99

$

Usually ships in 2-12 days

0

3

Murray 71067

Washer
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

4

Murray 73826

Nut,1/4-20

$4.99

$

In Stock, Qty 20+

0

5

Murray 1501874MA

Bushing, Chute Crank

$4.99

$

In Stock, only 1 left!

0

6

Murray 300193MA

Nut, 5/8-32

$5.49

$

Usually ships in 2-12 days

0

7

Murray 49643

Keys & Ring, Starter
(Superseded to 691959)

$7.99

$

In Stock, Qty 7

0

8

Murray 394281S

Bulb, Fuel Primer

$16.99

$

Usually ships in 2-12 days

0

9

Murray 1501878MA

Panel, Cover Access

$

$

Not available

10

Murray 271172

Nut, Keps 1/4-20

$42.99

$

Usually ships in 2-12 days

0

11

Murray 335507MA

Hose, Primer 9.5"

$7.99

$

Usually ships in 2-12 days

0

12

Murray 56992MA

Switch, Ignition

$14.99

$

Usually ships in 2-12 days

0

13

Murray 1501860E701MA

Handle, Lower

$

$

Not available

14

Murray 313685MA

Screw 1/4-14 x .75

$5.49

$

Usually ships in 2-12 days

0

15

Murray 578109MA

J-Nut 1/4-10

$6.49

$

In Stock, Qty 8

0

16

Murray 1501867MA

Cover, Bottom

$139.99

$

Usually ships in 2-12 days

0

17

Murray 1502026MA

Cover, Belt

$18.99

$

Usually ships in 2-12 days

0

18

Murray 12342MA

Screw 10-24 x .5

$3.99

$

Usually ships in 2-12 days

0

19

Murray 312300MA

Locknut, Hex 10-24
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

20

Murray 15X143MA

Locknut, Hex 1/4-20

$4.99

$

In Stock, Qty 13

0

21

Murray 579052

Screw 1/4-20 x .63
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

22

Murray 1502005MA

Cover, Top

$210.99

$

Usually ships in 2-12 days

0

24

Murray 313683

Washer
(Superseded to 313683MA)

$4.49

$

Usually ships in 2-12 days

0

25

Murray 1501868MA

Cover, Oil Access

$12.99

$

Usually ships in 2-12 days

0

26

Murray 1501995MA

Gasket, Chute Ring

$21.99

$

Usually ships in 2-12 days

0

27

Murray 028X85MA

Push Nut

$4.99

$

Usually ships in 2-12 days

0
