622515x31B - Scotts 22" Snow Thrower (2000) Auger Housing Parts Diagram

22" Snow Thrower

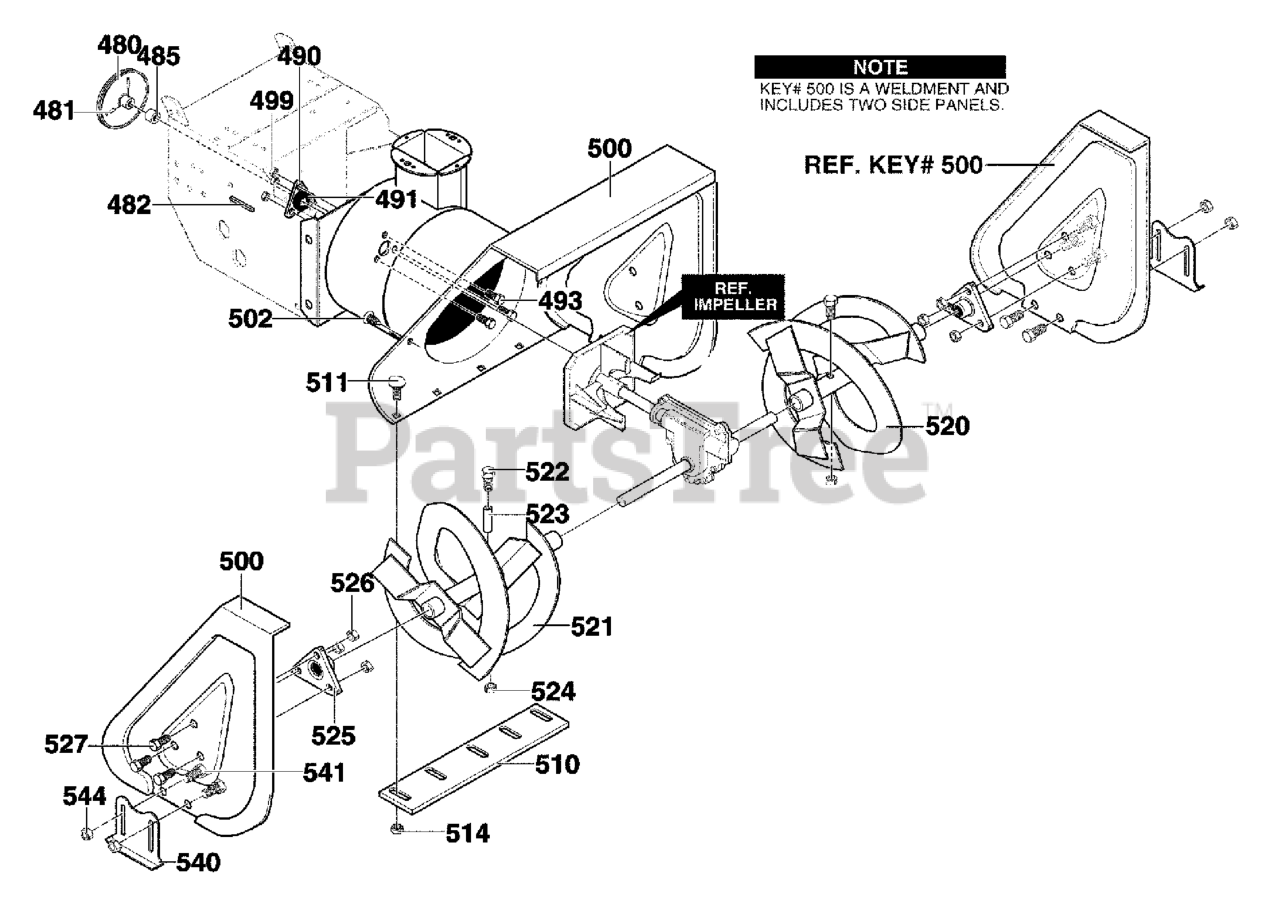

Auger Housing Parts Diagram

  • Title
480

Murray 762146MA

PULLEY, 4L 6.12X .67

$70.99

$

Usually ships in 2-12 days

0

481

Murray 577400MA

SCREW, 5/16-18 x 0.63

$4.99

$

Usually ships in 2-12 days

0

482

Murray 71371MA

KEY, SQUARE
(Superseded to 703888)

$4.49

$

In Stock, only 1 left!

0

485

Murray 334514MA

SPACER, SLEEVE .676X1.00X.53

$7.99

$

Usually ships in 2-12 days

0

490

Murray 582960

RETAINER, BALL BRNG

$

$

Currently unavailable

491

Murray 043846

BEARING, BALL

$34.99

$

Usually ships in 2-12 days

0

493

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 761745-898

HOUSING, ASSY

$

$

Currently unavailable

502

Murray 309235MA

FASTENER, RATCHET

$3.99

$

Usually ships in 2-12 days

0

510

Murray 581395-821

BLADE, SCRAPER 24"

$

$

Currently unavailable

511

Murray 340714MA

BOLT, 1/4-20X.75
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

514

Murray 780285MA

NUT, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

520

Murray 340520-821

AUGER, ASSY, LH

$

$

Currently unavailable

521

Murray 340525-821

AUGER, ASSY, RH

$

$

Currently unavailable

522

Murray 9524MA

SCREW, 1/4-20X1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 5

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 3 left!

0

524

Murray 782585

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517MA

BEARING,FLANGE

$5.99

$

In Stock, Qty 20+

0

526

Murray 711862MA

NUT, 5/16-18

$4.99

$

In Stock, Qty 5

0

527

Murray 9357MA

SCREW, 5/16-18 x 0.75
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

540

Murray 780061MA

SKID, HEIGHT ADJUST
(Superseded to 1740718AYP)

$8.99

$

In Stock, only 4 left!

0

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026

NUT, 5/16-18 REGHEX

$

$

Not available
