622 (1697116-01) - Briggs & Stratton 22" Snow Thrower, 5.5 Gross TP (2019) Chute Rotation Group - Manual Parts Diagram

22" Snow Thrower, 5.5 Gross TP

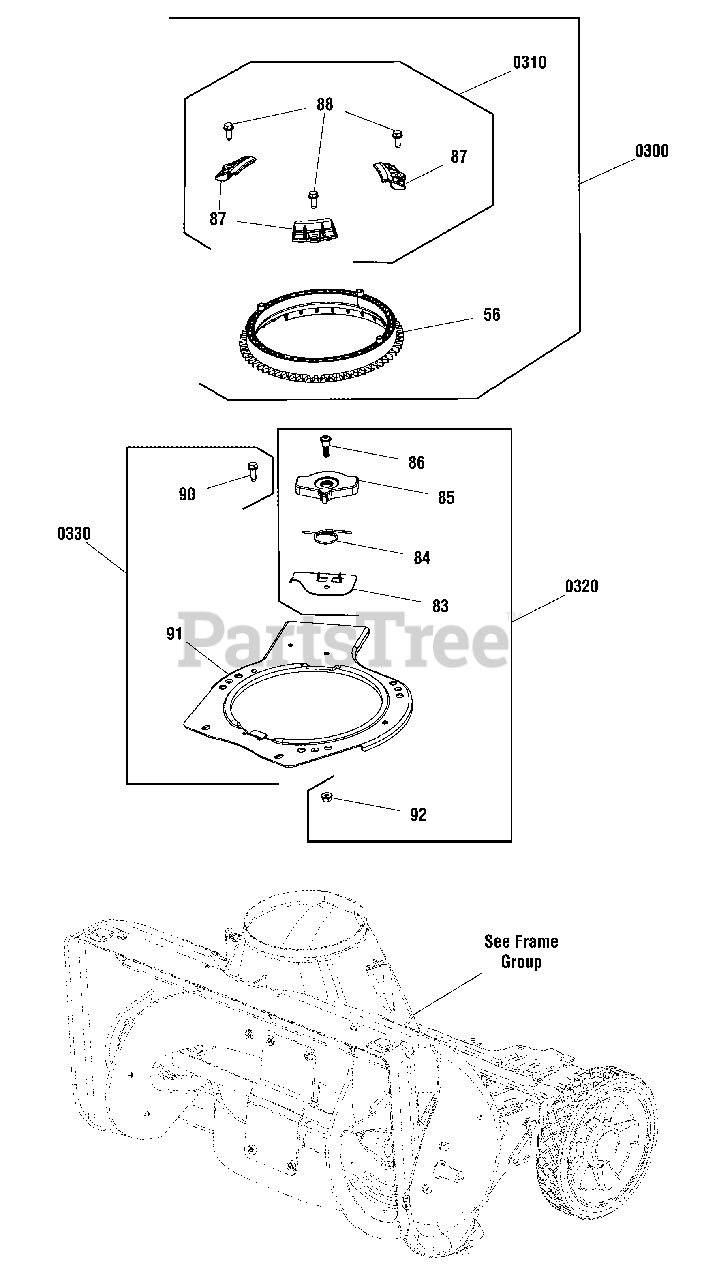

Chute Rotation Group - Manual Parts Diagram

  • Title

0300

Briggs & Stratton 709922

KIT, CHUTE GEAR

Note: (Incl. Ref. Nos. 56, 87, 88)

$50.99

$

In Stock, only 4 left!

0

56

GEAR, 65T, 8P, Driven, SS Chute Rotation

$

$

Not available

87

RETAINER, Chute

$

$

Not available

88

Briggs & Stratton 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0310

Briggs & Stratton 709923

KIT, CHUTE RETAINER

Note: (Incl. Ref. Nos. 87, 88)

$10.99

$

Usually ships in 2-12 days

0

87

RETAINER, Chute

$

$

Not available

88

Briggs & Stratton 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0320

Briggs & Stratton 709924

KIT, CHUTE ROTATION LEVER

Note: (Incl. Ref. Nos. 83, 84, 85, 86, 92)

$19.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 708714

BASE PLATE

$8.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 708713

SPRING

$4.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 708712

LEVER, Chute Rotation

$13.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 706514

SCREW, Shoulder, Button Torx Washer Head, 1/4-20 x 1

$7.49

$

In Stock, only 2 left!

0

92

Briggs & Stratton 80003520

NUT, Flange, Nylock, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0330

Briggs & Stratton 709925

KIT, CHUTE ADAPTER PLATE

Note: (Incl. Ref. Nos. 90, 91)

$60.99

$

Usually ships in 2-12 days

0

90

*SCREW, Hex Washer, 1/4-15 X 1.00, CZ

$

$

Not available

91

*PLATE, Chute Mounting

$

$

Not available
