6218 (1690738) - Simplicity 48" Garden Tractor, 18hp Engine Group - 6216 & 6218 Parts Diagram

48" Garden Tractor, 18hp

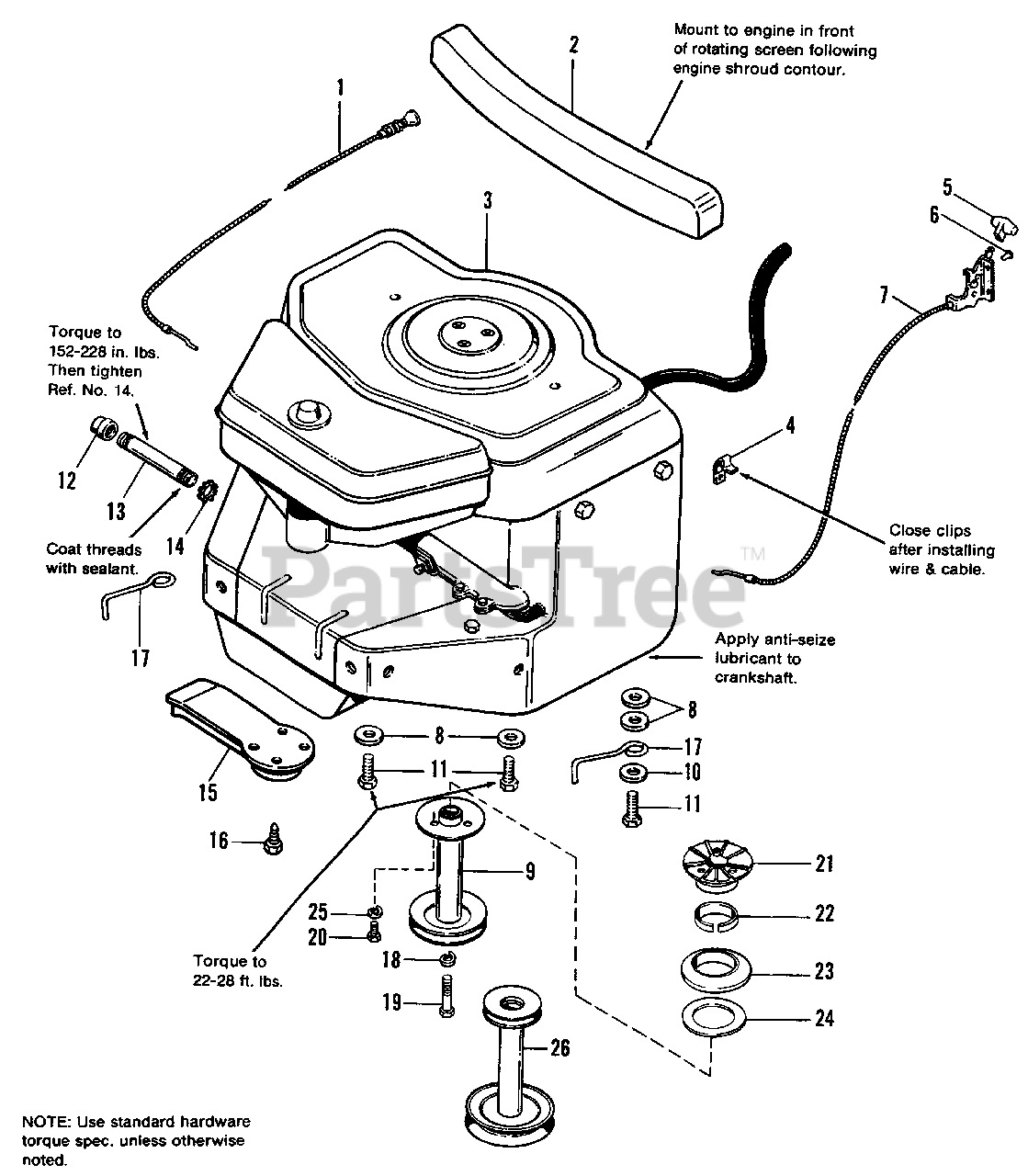

Engine Group - 6216 & 6218 Parts Diagram

  • Title

1

Simplicity 1667748SM

CHOKE

$57.99

$

Usually ships in 2-12 days

0

2

Simplicity 1665752SM

BAFFLE, Engine, Rear

$40.99

$

Usually ships in 2-12 days

0

3

ENGINE ASSY., 16 HP Briggs & Stratton ENGINE ASSY., 18 HP Briggs & Stratton

$

$

Not available

4

Simplicity 1666835

CLAMP, Wire

$

$

Not available

5

Simplicity 1656099SM

KNOB, Throttle
(Superseded to 1719768SM)

$12.99

$

Usually ships in 2-12 days

0

6

Simplicity 2824939

RIVET

$

$

Not available

7

Simplicity 1665516SM

CONTROL ASSY.

$69.99

$

Usually ships in 2-12 days

0

8

Simplicity 2824356

WASHER

$

$

Not available

9

Simplicity 1669502SM

PULLEY ASSY., Engine

Note: Used on all models except Mfg. No. 1690927 and 1690930

$236.99

$

Usually ships in 2-12 days

0

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1667346SM

PIPE, Cap, Hex

$7.49

$

Usually ships in 2-12 days

0

13

Simplicity 1670680

PIPE, Oil Drain

$

$

Not available

14

Simplicity 2832849

LOCKNUT, Conduit, 3/8

$

$

Not available

15

Simplicity 1666787ASM

EXTENSION ASSY., Muffler

$

$

Not available

16

Simplicity 2834940

SCREW, Hex, Thd. Cutting, #8-32 x 3/8

$

$

Not available

17

Simplicity 1669640

STOP, Belt, Engine

Note: Used on all models except Mfg. No. 1690927 and 1690930

$

$

Not available

17

Simplicity 1674558SM

STOP, Belt, Engine

Note: Used on Mfg. No. 1690927 and 1690930

$104.99

$

Usually ships in 2-12 days

0

18

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

19

Simplicity 2828038

CAPSCREW, 7/16-20 x 1-1/4

$

$

Not available

20

Simplicity 2836228

CAPSCREW, 5/16-18 x 3/4

Note: Used on all models except Mfg. No. 1690927 and 1690930

$

$

Not available

21

Simplicity 1669495

PULLEY, Half, Upper

Note: Used on all models except Mfg. No. 1690927 and 1690930

$

$

Not available

22

Simplicity 1669500SM

BEARING

Note: Used on all models except Mfg. No. 1690927 and 1690930

$8.49

$

Usually ships in 2-12 days

0

23

Simplicity 1669497SM

PULLEY, Half, Lower

Note: Used on all models except Mfg. No. 1690927 and 1690930

$67.99

$

Usually ships in 2-12 days

0

24

Simplicity 1669501SM

BEARING

Note: Used on all models except Mfg. No. 1690927 and 1690930

$10.99

$

Usually ships in 2-12 days

0

25

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

Note: Used on all models except Mfg. No. 1690927 and 1690930

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1676274SM

PULLEY ASSY., Engine

Note: Used on Mfg. No. 1690927 and 1690930

$271.99

$

Usually ships in 2-12 days

0
