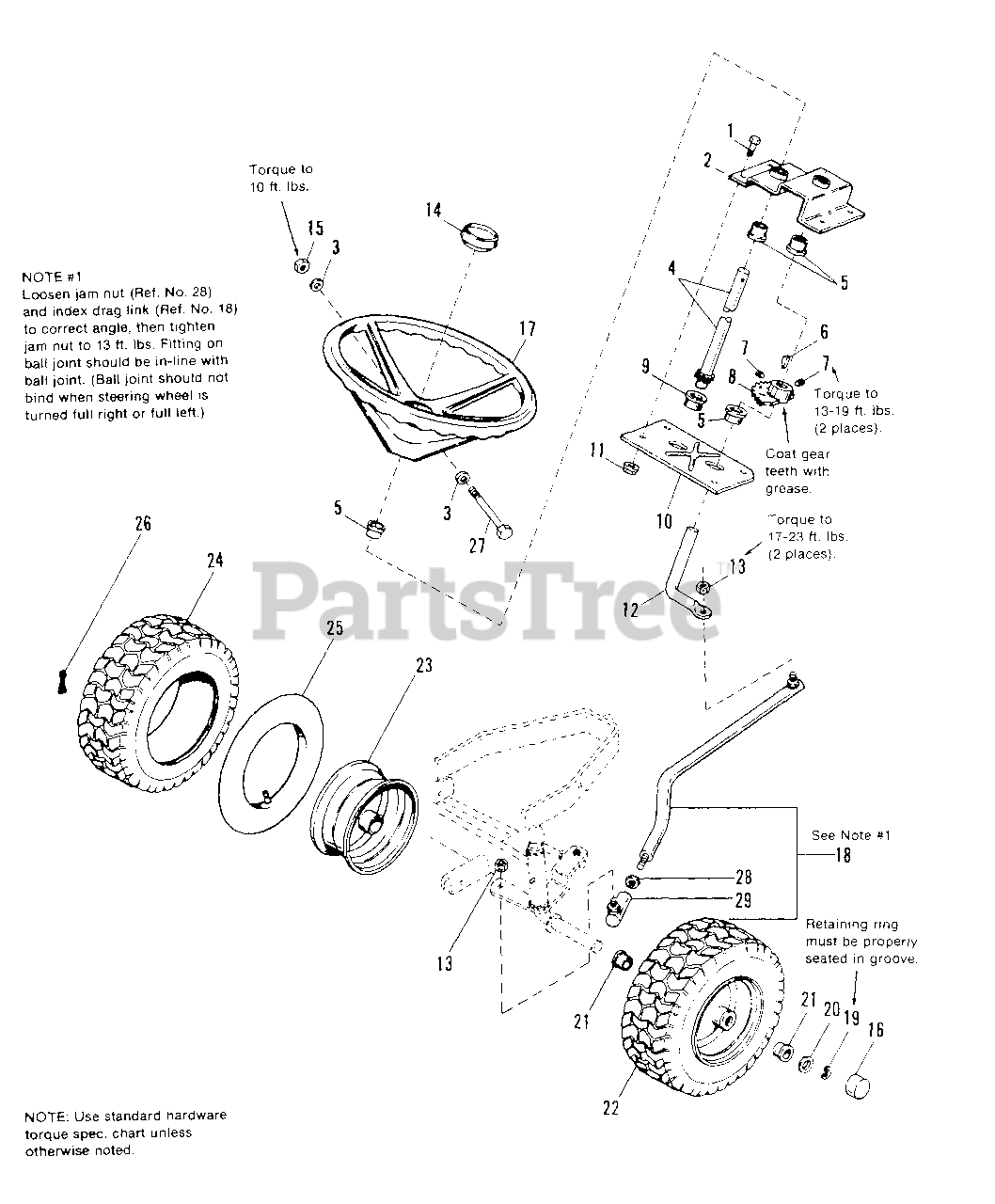

6216 (1691065) - Simplicity 48" Garden Tractor, 16hp Steering & Front Wheels Group Parts Diagram

48" Garden Tractor, 16hp

Steering & Front Wheels Group Parts Diagram

  • Title
1

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

2

Simplicity 1667513SM

PLATE, Steering
(Superseded to 1667513ASM)

$102.99

$

Usually ships in 2-12 days

0

3

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

4

Simplicity 1701266SM

SHAFT ASSY., Steering

$108.99

$

Usually ships in 2-12 days

0

$4.99

$

In Stock, Qty 20+

0

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

8

Simplicity 1675388SM

GEAR, Steering
(Superseded to 1685168SM)

$

$

Not available

$4.99

$

In Stock, only 1 left!

0

10

Simplicity 1652743SM

PLATE, Steering
(Superseded to 1652743ASM)

$

$

Not available

11

Simplicity 1935048SM

LOCKNUT, Hex, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1674076SM

ROD, Steering

$

$

Not available

13

Simplicity 1668927SM

NUT, Special

$6.49

$

In Stock, only 1 left!

0

14

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

15

Simplicity 1923362SM

LOCKNUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

16

Simplicity 1673333SM

CAP, Hub, Thrd.

$5.49

$

In Stock, Qty 5

0

17

Simplicity 1686651SM

WHEEL, Steering

$190.99

$

In Stock, only 1 left!

0

18

Simplicity 1686669SM

LINK, Drag (Incl. Ref. Nos. 28 & 29)

$

$

Not available

19

Simplicity 1611710SM

KLIP RING, Ext. 3/4

$4.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 20+

0

$11.99

$

In Stock, only 4 left!

0

22

Simplicity 1709856SM

WHEEL & TIRE ASSY., 15 x 6.00-6 (Incl. Ref. Nos. 21, 23, 24, 25 & 26)

$137.99

$

Usually ships in 2-12 days

0

23

Simplicity 1715032

WHEEL
(Superseded to 1726301SM)

$82.99

$

In Stock, only 1 left!

0

24

Simplicity 1713166SM

TIRE, 15 x 6.00-6 (Carlisle)

$113.99

$

Usually ships in 2-12 days

0

25

Simplicity 1664090SM

TUBE, 4.10/3.50-6

$26.99

$

In Stock, only 3 left!

0

26

Simplicity 2172353SM

STEM, Valve & Cap
(Superseded to 024373MA)

$

$

Not available

27

Simplicity 1925690SM

BOLT, Hex 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1918403SM

JAM NUT
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

29

$15.99

$

In Stock, Qty 10

0
