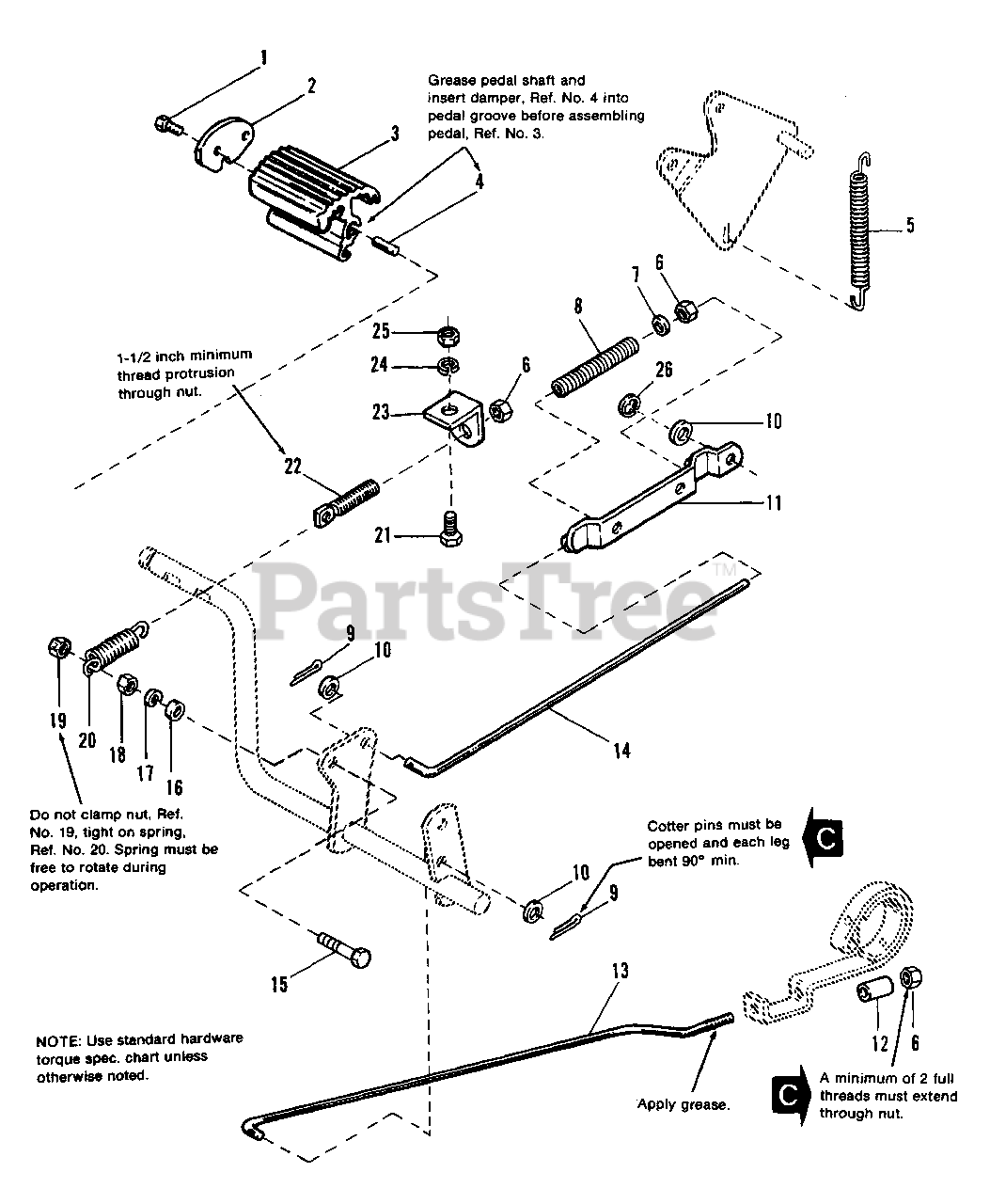

6216 (1691035) - Simplicity Garden Tractor, 16hp Brake & Clutch Group Parts Diagram

Garden Tractor, 16hp

Brake & Clutch Group Parts Diagram

  • Title

1

Simplicity 2827429

SCREW, Taptite, 1/4-20 x 5/8

$

$

Not available

2

Simplicity 1656854

END PLATE

$

$

Not available

3

Simplicity 1656852SM

PEDAL, Foot

$

$

Not available

4

Simplicity 1659907SM

DAMPER, Rubber

$5.49

$

In Stock, only 2 left!

0

5

Simplicity 1669378SM

SPRING, Tension, Idler

$22.99

$

Usually ships in 2-12 days

0

6

Simplicity 1919439SM

LOCKNUT, ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2822755

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

8

Simplicity 1669614SM

SPRING

$

$

Not available

9

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1669274

GUIDE ASSY., Clutch Rod

$

$

Not available

12

Simplicity 1665699SM

SPACER

$7.49

$

Usually ships in 2-12 days

0

13

Simplicity 1665456

ROD

$

$

Not available

14

Simplicity 1674900

ROD, Clutch

$

$

Not available

15

Simplicity 1921971SM

CAPSCREW, Hex, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

16

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 1922694SM

LOCKNUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 1715435SM

SPRING, Tension

$9.49

$

In Stock, Qty 20+

0

21

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1669282

ROD, Tension Adjustment

$

$

Not available

23

Simplicity 1669377

BRACKET, Variator, Spring

$

$

Not available

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 2828197SM

E-Ring

$3.99

$

Usually ships in 2-12 days

0
