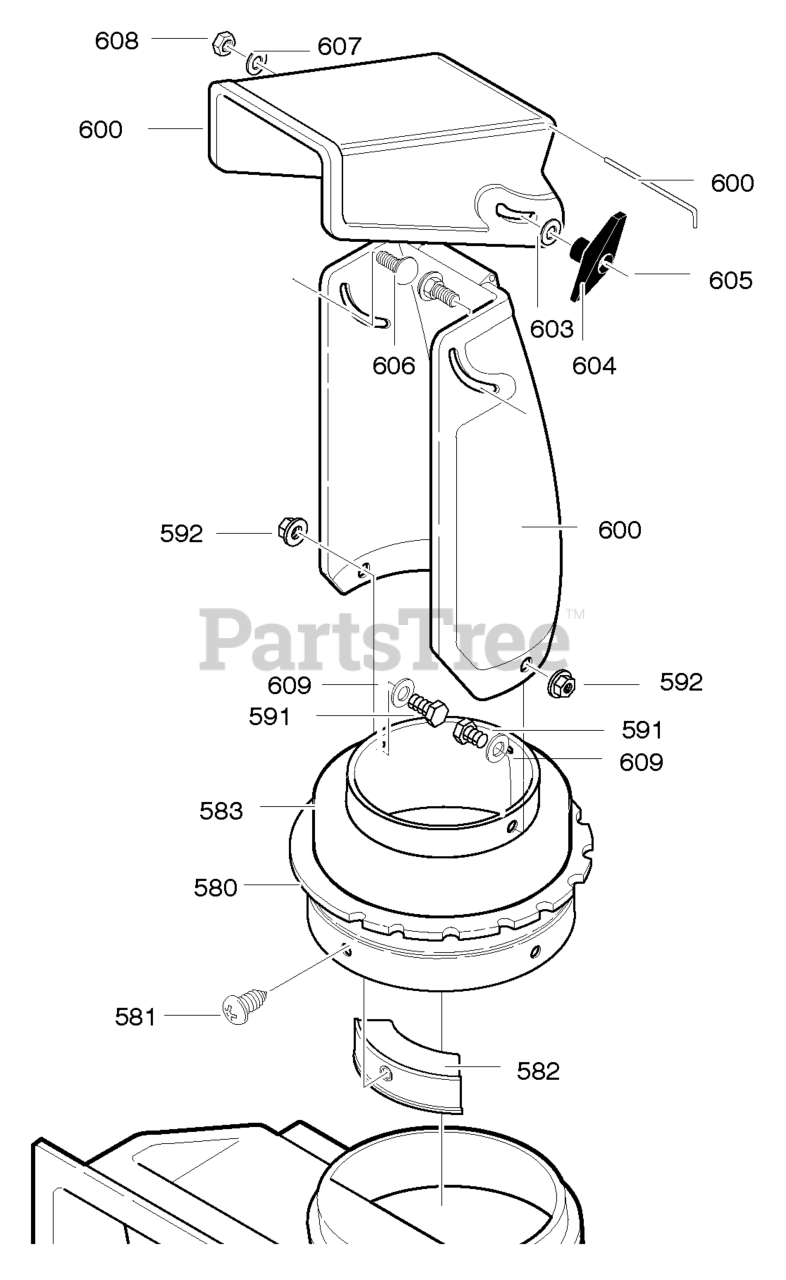

621501x4NA - Murray 21" Snow Thrower (2004) Discharge Chute Parts Diagram

21" Snow Thrower

Discharge Chute Parts Diagram

  • Title
580

Murray 333859MA

RING, CHUTE

$

$

Not available

581

Murray 711752MA

SCREW, #10X.50

$4.49

$

Usually ships in 2-12 days

0

582

Murray 577021MA

GUIDE, CHUTE

$5.49

$

In Stock, Qty 8

0

583

Murray 762173MA

DONUT FOAM

$20.99

$

Usually ships in 2-12 days

0

591

Murray 302628MA

SCREW 1/4-20X.50

$4.49

$

In Stock, Qty 7

0

592

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, Qty 13

0

600

Murray 762222MA

CHUTE ASSY

$51.99

$

In Stock, Qty 20+

0

602

Murray 302843MA

BOLT, 5/16-18X1.25 CARR.

$

$

Not available

603

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

604

Murray 57171

KNOB, T
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 9

0

605

Murray 71037

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

606

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

607

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

608

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

609

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0
