621501x31NB - Scotts 21" Snow Thrower (2006) Handle Assembly Parts Diagram

21" Snow Thrower

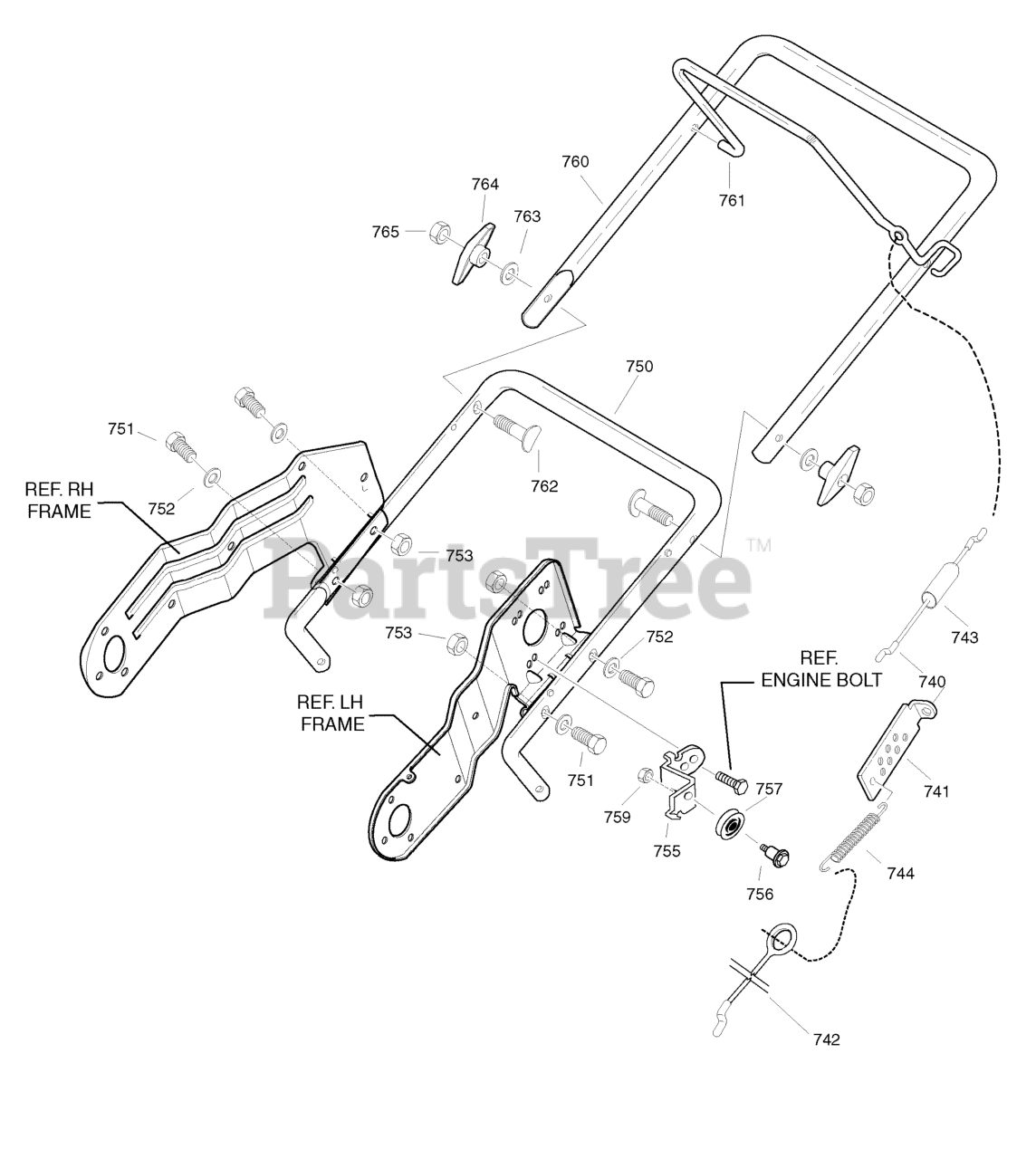

Handle Assembly Parts Diagram

  • Title
740

Murray 760774MA

CABLE, UPPER

$10.99

$

Usually ships in 2-12 days

0

741

Murray 313441MA

BRACKET, CABLE ADJUST

$

$

Not available

742

Murray 760773MA

CABLE, LOWER CONTROL

$14.99

$

Usually ships in 2-12 days

0

743

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

Usually ships in 2-12 days

0

744

Murray 313471MA

SPRING, EXTENSION

$4.99

$

In Stock, only 1 left!

0

750

Murray 333909E701MA

HANDLE, LOWER

$56.99

$

Usually ships in 2-12 days

0

751

Murray 313674MA

SCREW, 1/4-20 X 1.25

$3.99

$

Usually ships in 2-12 days

0

752

Murray 71067MA

WASHER, FLAT

$4.49

$

In Stock, only 1 left!

0

753

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

755

Murray 761486E701MA

BRACKET, CABLE

$67.99

$

Usually ships in 2-12 days

0

756

$3.49

$

Usually ships in 2-12 days

0

757

$24.99

$

Usually ships in 2-12 days

0

759

Murray 15X143MA

NUT, 1/4-20 YZ

$4.99

$

In Stock, Qty 13

0

760

Murray 333919E701MA

UPPER HANDLE
(Superseded to 1742109HYP)

$87.99

$

Usually ships in 2-12 days

0

761

Murray 313308E701MA

BAIL, CONTROL
(Superseded to 1742110HYP)

$22.99

$

Usually ships in 2-12 days

0

762

$4.99

$

Usually ships in 2-12 days

0

763

Murray 311936MA

WASHER, FORM

$7.49

$

In Stock, only 2 left!

0

764

Murray 57171MA

KNOB, T 3.00 WD
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 5

0

765

Murray 71037MA

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
