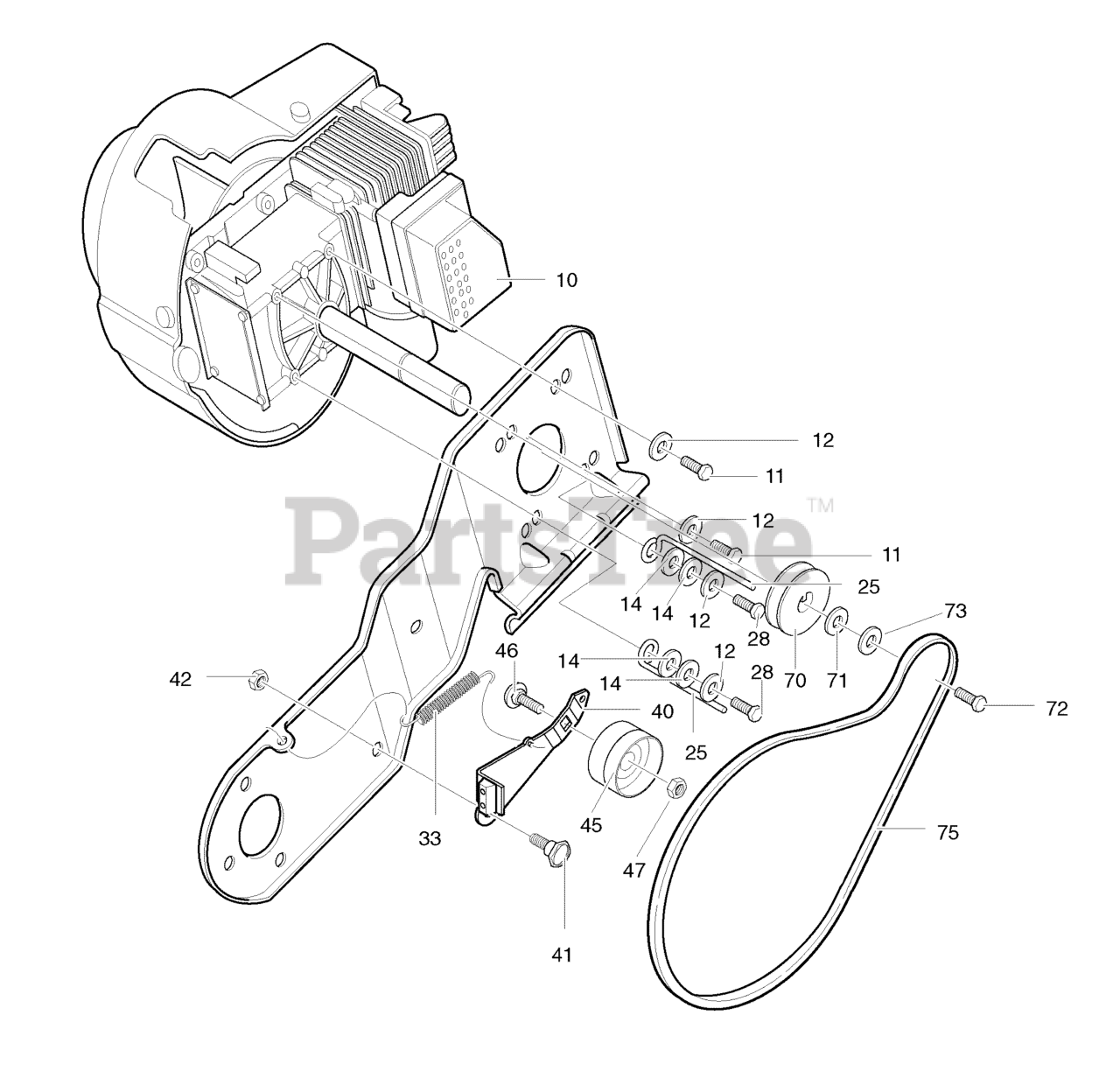

621501x31NB - Scotts 21" Snow Thrower (2006) Engine Assembly Parts Diagram

21" Snow Thrower

Engine Assembly Parts Diagram

  • Title

10

ENGINE

$

$

Not available

11

Murray 313676MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

12

Murray 71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

25

Murray 313440MA

GUIDE, BELT

$9.99

$

Usually ships in 2-12 days

0

28

Murray 710312MA

SCREW
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

33

Murray 339017MA

SPRING, IDLER BRAKE

$39.99

$

Usually ships in 2-12 days

0

40

Murray 1501013MA

ASSY, IDLER BRAKE ARM

$153.99

$

Usually ships in 2-12 days

0

41

Murray 333594MA

BOLT

$20.99

$

In Stock, only 1 left!

0

42

Murray 71391MA

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

45

Murray 48924MA

PULLEY, IDLER

$31.99

$

Usually ships in 2-12 days

0

46

Murray 45892MA

BOLT, CARRIAGE

$4.49

$

Usually ships in 2-12 days

0

47

Murray 590MA

NUT
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

70

Murray 338849MA

PULLEY, ENGINE

$

$

Not available

71

Murray 25840MA

WASHER, BELLEVILLE

$3.49

$

Usually ships in 2-12 days

0

72

Murray 181595MA

SCREW, 5/16-24 x 0.75
(Superseded to 710097MA)

$4.49

$

Usually ships in 2-12 days

0

73

Murray 71060MA

WASHER, SPLIT LOCK
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

75

Murray 37X132MA

BELT V 3L 34.8"

$18.99

$

In Stock, only 1 left!

0

--

Murray 1740271

OPERATOR'S MANUAL

$

$

Currently unavailable
