621501x31NB - Scotts 21" Snow Thrower (2006) Discharge Chute Parts Diagram

21" Snow Thrower

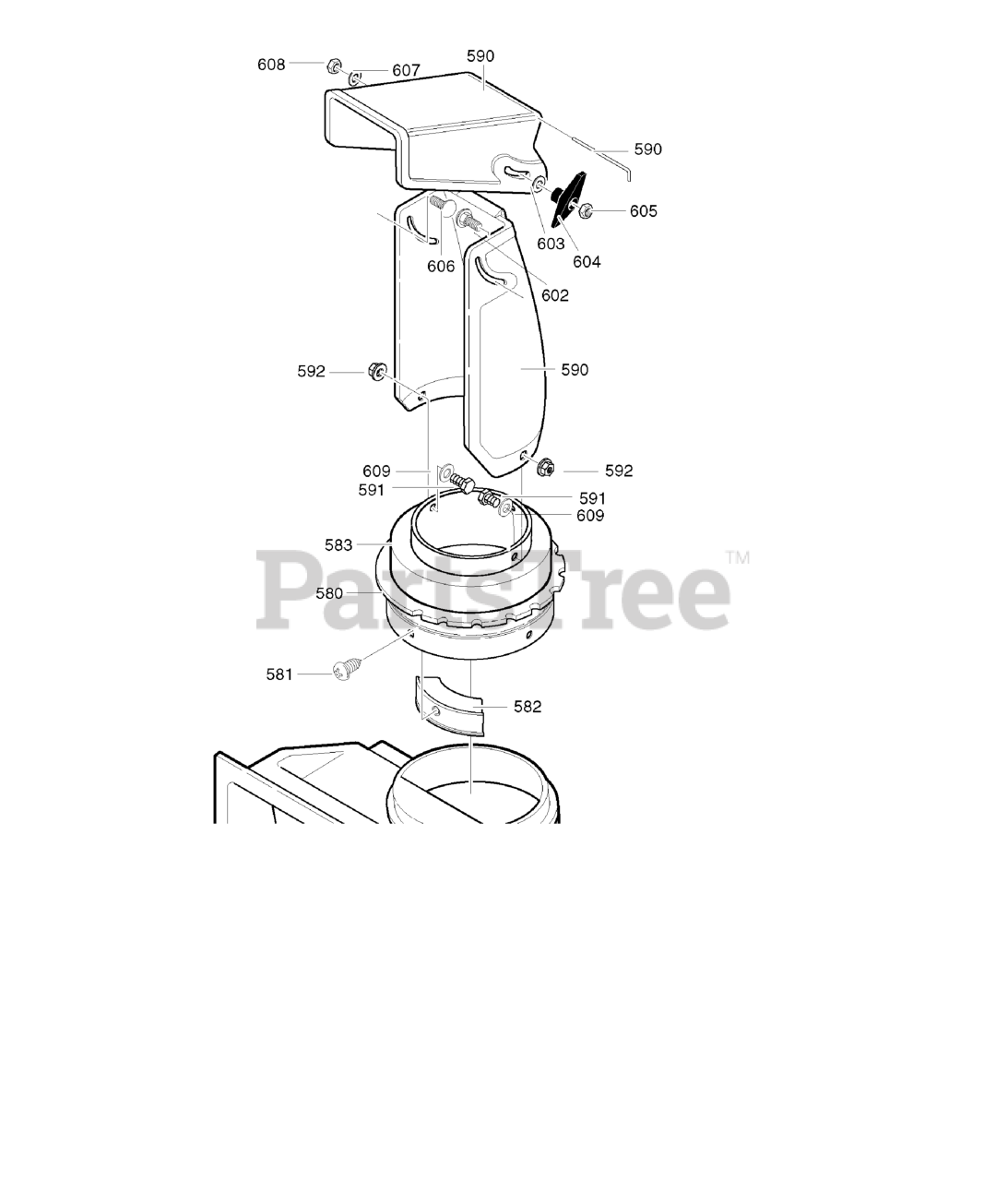

Discharge Chute Parts Diagram

  • Title
580

Murray 333860MA

RING, CHUTE

$33.99

$

Usually ships in 2-12 days

0

581

Murray 711752MA

SCREW, #10 X .50

$4.49

$

Usually ships in 2-12 days

0

582

Murray 577021MA

GUIDE, CHUTE

$5.49

$

In Stock, Qty 8

0

583

Murray 762173MA

DONUT FOAM

$20.99

$

Usually ships in 2-12 days

0

590

Murray 305862MA

CHUTE DEFLECTOR, LOWER

$40.99

$

Usually ships in 2-12 days

0

591

Murray 302628MA

SCREW 1/4-20 X .50

$4.49

$

In Stock, Qty 7

0

592

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, Qty 13

0

600

Murray 305861MA

CHUTE DEFLECTOR, UPPER
(Superseded to 314704MA)

$40.99

$

In Stock, only 1 left!

0

602

Murray 302843MA

BOLT, 5/16-18 X 1.25 CARRIAGE

$

$

Not available

603

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

604

Murray 57171MA

KNOB, T
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

605

Murray 71037MA

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

606

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

607

Murray 71071MA

WASHER, FLAT .349 X .69 X .066
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

608

Murray 71391MA

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

609

Murray 71067MA

WASHER, FLAT

$4.49

$

In Stock, only 1 left!

0
