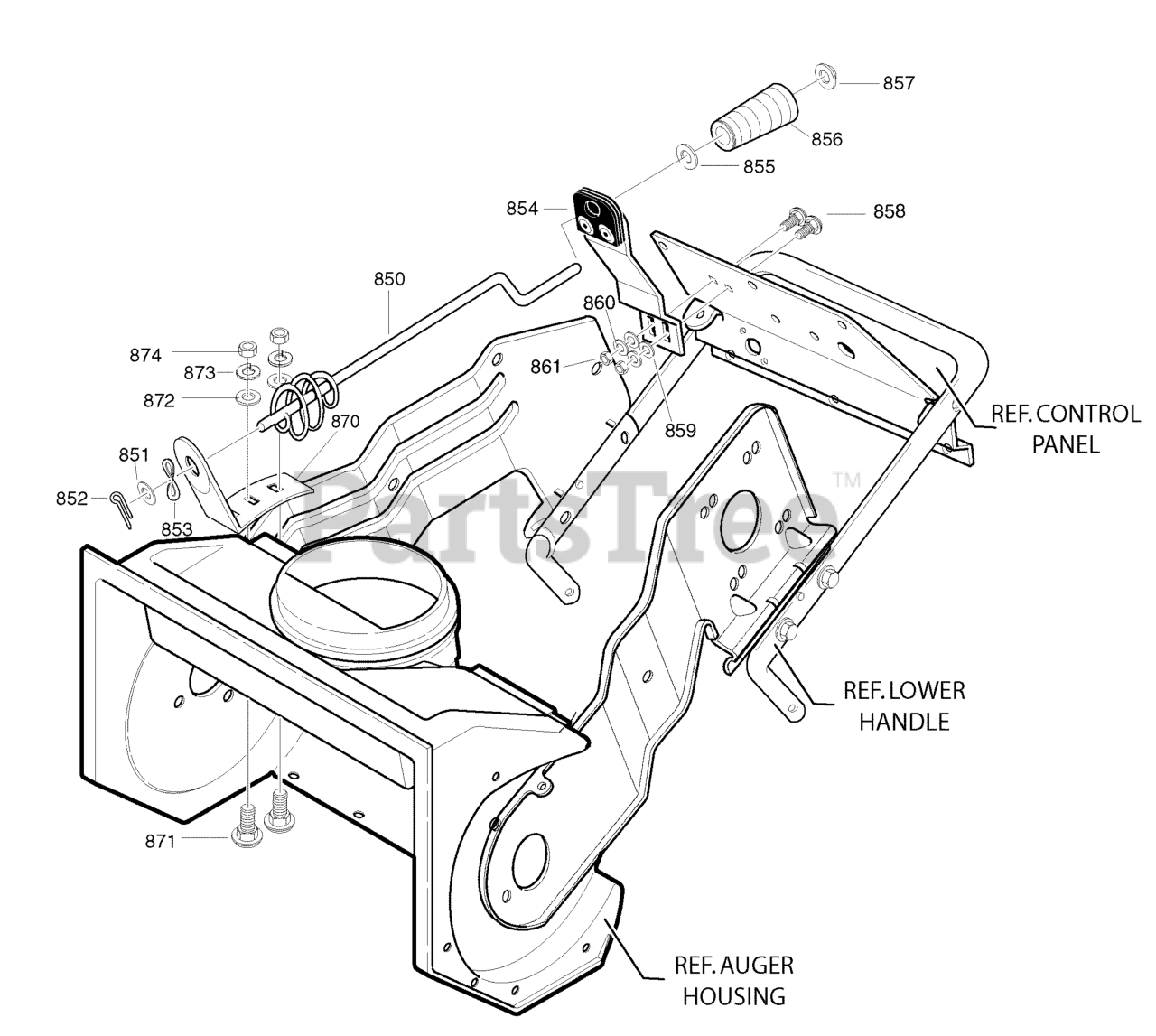

621501x31NB - Scotts 21" Snow Thrower (2006) Chute Rod Assembly Parts Diagram

21" Snow Thrower

Chute Rod Assembly Parts Diagram

  • Title
850

Murray 337941MA

ROD, CHUTE

$

$

Not available

851

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

852

Murray 71082MA

PIN, COTTER

$4.49

$

Usually ships in 2-12 days

0

853

Murray 313431MA

WASHER CURVED

$4.99

$

In Stock, only 1 left!

0

854

Murray 340186MA

ASSY, CHUTE CRANK

$2.99

$

Usually ships in 2-12 days

0

855

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

856

Murray 57082MA

KNOB, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

857

Murray 331532MA

NUT, PUSH

$4.99

$

Usually ships in 2-12 days

0

858

Murray 340715MA

BOLT, 1/4-20 X .63 CARRIAGE

$5.49

$

Usually ships in 2-12 days

0

859

Murray 71071MA

WASHER, FLAT .344 X .69 X .065
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

860

Murray 71060MA

WASHER, .31 X .58 X .08
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

861

Murray 71034MA

NUT, 1/4-20 REGHEX
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

870

Murray 333946E701MA

BRKT, CHUTE ROTATE

$33.99

$

Usually ships in 2-12 days

0

871

Murray 340720MA

BOLT, 5/16-18 X .75 CARRIAGE
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

872

Murray 71071MA

WASHER, FLAT .349 X .69 X .066
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

873

Murray 71060MA

WASHER, SPLIT LOCK .31 X .58 X .08
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

874

Murray 71037MA

NUT, 5/16-18 HEXHEAD
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
